GAINWISE TECHNOLOGY
MANUAL
DOOR INTERCOM
SS91BV-M / SS1204AV-M
GSM / WCDMA INTERCOM
(ACCESS CONTROL SYSTEM)
For your protection, read these instructions completely
And keep them for future reference.
Revision E8 ,Jan 2015
SS91BV-M GSM Intercom
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS91BV-M and is the answer not in the manual?

Questions and answers

Related Manuals for Gainwise SS91BV-M

Summary of Contents for Gainwise SS91BV-M

  • Page 1 GAINWISE TECHNOLOGY MANUAL DOOR INTERCOM SS91BV-M / SS1204AV-M GSM / WCDMA INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions completely And keep them for future reference. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ..............3 SS91BV-M GSM INTERCOM INTRODUCTION ............4 SS91BV-M GSM INTERCOM WITH ACCESSORIES ..........4 INSTALLATION ....................... 5 SS91BV-M GSM Intercom Unit ................... 6 Wiring Diagram ......................6 LED Indicator ....................... 7 SS91BV-M GSM INTERCOM OPERATION ............... 8 Enter Listener Monitoring Mode ..................

  • Page 3: Important Safety Instruction

    Be sure to keep this manual for future reference in case of any problem or question should arise. IMPORTANT SAFTY INSTRUCTIONS When using this SS91BV-M GSM Intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Please read the following before using your equipment.

  • Page 4: Ss91Bv-M Gsm Intercom Introduction

    SS91BV-M GSM INTERCOM INTRODUCTION The GSM Intercom SS91BV-M is an intercom system, installed at the entrance of a building. It is an ideal product replacing the traditional door phone. It allows you to speak with visitors standing at the entrance of your company or house entrance from a remote location. A visitor, by simply pressing the call button establishes a mobile call with you.

  • Page 5: Installation

    INSTALLATION This GSM Intercom is suitable for both flush and surface mounting. Note: For surface mounting, you will have to remove the plastic enclosure before fitting main station into the stainless steel cabinet. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

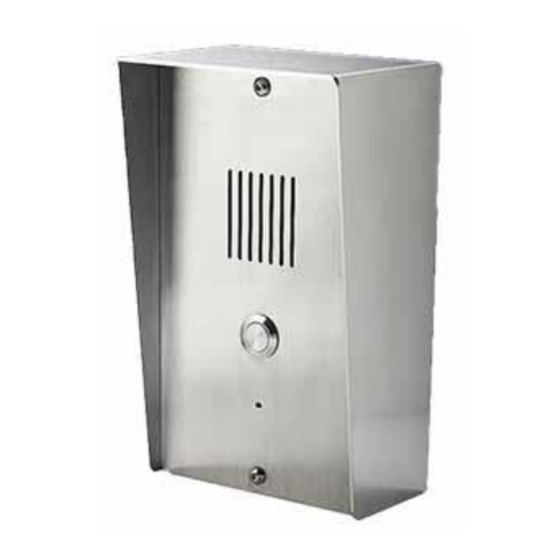

  • Page 6: Ss91Bv-M Gsm Intercom Unit

    SS91BV-M GSM Intercom Unit Speaker Call Button Microphone Wiring Diagram Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 7: Led Indicator

    Register your SIM card with the network, and check it works in a mobile phone You MUST remove the PIN request from the SIM before inserting it in the unit SS91BV-M. Ensure the power is OFF before inserting the SIM card. Carefully side the SIM holder in the OPEN direction, insert the SIM, and slide in the CLOSED direction to lock it in place.

  • Page 8: Ss91Bv-M Gsm Intercom Operation

    At the same time connection is established with the phone number that is stored in the SS91BV-M. If the first number is busy or not answered the call can be diverted to the second and the third.. The remote phone answers the call from SS91BV-M and starts conversation with the visitors.
  • Page 9 Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 10: Enter Listener Monitoring Mode

    To make changes on settings please refer to the user commands.(P15,16) To end programming mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 11: Programming

    SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 12: Door/ Gate Release

    GSM Intercom will drop the call and then open the gate / door. The GSM Intercom doesn’t answer the call, it simply checks the caller ID, and so it won’t cost you anything to open the gate / door. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...
  • Page 13 To latch or hold open door by pressing *34*5678# To unlatch door by pressing *35*5678# *Above operation same as sending SMS commands *This is for door open option for telephone numbers not stored. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 14: Check Gsm Signal Strength

    SMS programming. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 Command to use *12*1234#74 [Admin number]# SMS format *12*1234#740865682554# To delete the Admin number *12*1234#74*# Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 15: Check A Log Of Dial In And Dial Out Numbers Via E-Mail Or Sms

    ( Doesn’t support Gmail) Command code Example : *42*1234# recipient e-mail address, recipient name, carbon copy e-mail address, carbon copy name# Recipient & Carbon copy settings Commande code example: Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...
  • Page 16 *12*1234#85[mobile No.]# numbers record via SMS Delete mobile number for receiving *12*1234#85*# dial in numbers record via SMS SIM card number of SS91BV-M for *12*1234#86[ SIM No of SS91VB-M]# Clock date and time correction To delete SIM card number of *12*1234#86*#...

  • Page 17: User Commands

    No reply (default password:5678) Release relay *35* [ password ] # No reply (default password:5678) ● (Only 0~9、*、# are available) SMS data error SMS Data Error ● Function code error Function Code Error Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...
  • Page 18 74 [ admin number ] # admin number: 3~15 digit codes None number ( no number no restriction) Del administrator phone 74*# delete administrator phone None number number Reset 999# reset default None Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 19: How To Reset The Hardware When You Forget Your Password

    GSM 850/900/1800/1900 Mhz, WCDMA 850/1900 or 900/2100 Mhz Physical size Face plate: 170 x 100 mm, Stainless cabinet: 174 x 113 x 65 mm Length of antenna 3 meters cable Humidity Less than 80% RH -20℃ to 50℃ Operating Temperature Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 20: Quick Programming Via Sms

    *20# (check reception level of intercom) *21# (check stored number. The unit will reply with list of stored numbers. I= dial in / O= dial out ) *22# (check gate / door status) Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...

  • Page 21: Troubleshooting (Q&A)

    Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...
  • Page 22 DTMF tones. Failure of DTMF tones to operate correctly is also a symptom of low reception. Check steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. Revision E8 ,Jan 2015 SS91BV-M GSM Intercom...
