- Page 1 GAINWISE TECHNOLOGY MANUAL DOOR INTERCOM SS1704V-M / SS1804-4G01ECV-M 3G / 4G AUDIO INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions completely And keep them for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ..............3 SS1704V-M 3G INTERCOM INTRODUCTION ............4 SS1704V-M 3G INTERCOM WITH ACCESSORIES ..........4 INSTALLATION ....................... 5 SS1704V-M 3G Intercom Unit ..................6 Wiring Diagram ......................6 LED Indicator ....................... 7 SS1704V-M 3G INTERCOM OPERATION ..............8 Enter Listener Monitoring Mode .................. -
Page 3: Important Safety Instruction
Thank you for purchasing SS1704V-M 3G Intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. IMPORTANT SAFTY INSTRUCTIONS When using this SS1704V-M 3G Intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Ss1704V-M 3G Intercom Introduction
SS1704V-M 3G INTERCOM INTRODUCTION The 3G Intercom SS1704V-M is an intercom system, installed at the entrance of a building. It is an ideal product replacing the traditional door phone. It allows you to speak with visitors standing at the entrance of your company or house entrance from a remote location. -
Page 5: Installation
INSTALLATION This 3G Intercom is suitable for both flush and surface mounting. Note: For surface mounting, you will have to remove the plastic enclosure before fitting main station into the stainless-steel cabinet. -
Page 6: Ss1704V-M 3G Intercom Unit

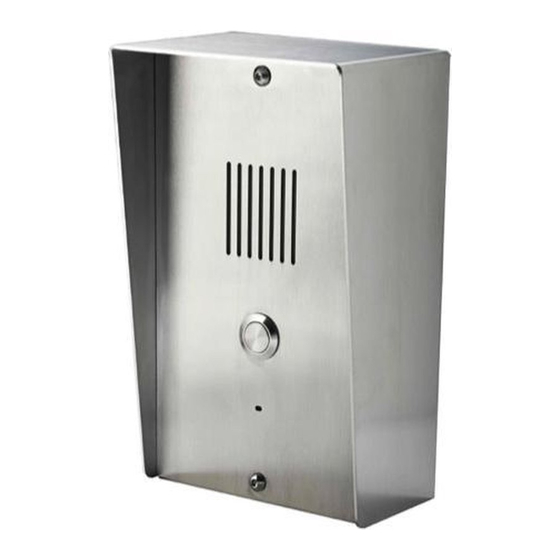

SS1704V-M 3G Intercom Unit Speaker Call Button Microphone Wiring Diagram... -
Page 7: Led Indicator
LED INDICATORS 1. LED “Intercom Status “ Indicator Status Yellow (standby) Flashes once per 5 seconds Yellow (using) Solid 2. LED ‘Network “Indicator Status Green (ready) Flashes once per 3 seconds Green (searching) Flashes once per second Green (busy) Solid 3. -
Page 8: Ss1704V-M 3G Intercom Operation
At the same time connection is established with the phone number that is stored in the SS1704V-M. If the first number is busy or not answered the call can be diverted to the second and the third. The remote phone answers the call from SS1704V-M and starts conversation with the visitors. -
Page 10: Enter Listener Monitoring Mode
Enter Listener Monitoring Mode Call the telephone number of the 3G intercom This device will then verify your phone number with your predefined numbers. You will hear a “Do” tone to enter listener monitoring mode by pressing【*13*1212＃】 where 1212 is the password. You are now in the”... -
Page 11: Programming
Programming Programming can be carried out either by dial into the 3G intercom or by text message (Certain programming feature can only be set up by text message, please refer to user commands) Programming by text message Programming by text message is the simplest way to customize the settings of the 3G intercom and add or delete telephone numbers. -
Page 12: Access Control Options
Progrmming by dial in Note: programming dial in can’t be used from telephones which are already programmed to open the door when they dial the 3G intercom but you can disable Caller ID display (withhold the number) on the mobile before using. To gain access to the programming mode via dial in, follows these steps: Example: Storing a telephone number for dial in door release... - Page 13 Example: Ireland Country code: 353 (UK: 44 / USA: 1) Do not use any leading zeroes. 086 5683624 (mobile number 1) 086 5682554 (mobile number 2) 086 2235644 (mobile number 3) Command to use: *12*1234#71[country code]#72[relay] phone number] #72[relay][ phone number] #72[relay][ phone number] #..
-
Page 14: Check 3G Signal Strength
Check 3G signal strength (0~31 levels) When a request for 3G signal strength SMS is sent to the 3G intercom it will reply with a signal strength code and service provider name. The code will be between 0~31 means the signal level is from poor to best. -
Page 15: Check A Log Of Dial In And Dial Out Numbers Via E-Mail Or Sms
Check A Log Of Dial In And Dial Out Numbers Via E-mail Or SMS This system allows you to save dial in numbers log and will then automatically send the record via e-mail or SMS as your request. There is a list of commands you need and examples to guide you on the settings for this feature. Please setup following required parameters and commands before you can use it. - Page 16 Function SMS command codes E-mail subject setting *43*1234# e-mail subject# Command code Example: To immediately send current dial in *44*1234# numbers log via email or SMS SMS reply: successful or failed *4[N]*1234# ( reply GPRS parameters) Check parameters setting N=1 ( reply e-mail parameters) N=2 ( reply recipient &...
- Page 17 How to program checking a log of dial in numbers via SMS There are 3 programming codes you will need to make this feature work You can program many different user command codes in a single text message with SMS command format.
- Page 18 To gain access to the different modes and control relays via SMS or call Function command Description Default Enter Programming Mode *12* [ password ] # To enter programming 1234 Enter Monitoring Mode *13* [ password ] # To hear the surroundings where 1212 the intercom installed Enter Access control...
- Page 19 Intercom information (Service &diagnostic messages) Note: for these function codes there is no need to start with *12*1234# in the command codes just simply use the command as below. Function Command Reply check signal strength *20# Signal Level 0~31 from poor to best Service provide name, network O [ number]…,I [ number]…..E (N) O：call button numbers list...
-
Page 20: User Commands
User commands table You can program many different user command codes in one text message with SMS command format. *12*1234 # [command code1] # [command code 2] # [command code3] #..Feature Command Description Default Change programming 01 [ password ] # password:4 digit codes 1234 Password... - Page 21 X= 0 no ringtone X= 1 simulate ringtone (default) Change ringtone 60 [X] # X= 2 real ringtone X= 3 simulate ringtone and real ringtone 1= dial in to open 2= dial in to talk Change dial in model 3= disconnect the call from 65 [X] # unauthorized numbers X=0~9 / * /＃...
-
Page 22: How To Reset The Hardware When You Forget Your Password
X=0~3 0:disable Detect mode options 902[ X]# 1:egress mode (901 feature) 2:trigger mode 3.resistance mode (10KΩ) Enable or disable ringing [ X ] X:0, 1 extension number 0= disable 1= enable Trigger the door chime 905[X]# X: 0, 1 When call button is 0= disable pressed (relay 2 only) 1= enable... -
Page 23: Quick Programming Via Sms
Quick programming via SMS Program a call button phone number. (Max 3 numbers) Note: To program a call button numbers DO NOT enter country code, just the complete number as you would dial it. Command to use: *12*1234#1[Y][ phone number]# Y= number 1, 2 or 3 Examples: 058 57235... -
Page 24: Troubleshooting (Q&A)
Troubleshooting (Q &A) Q. The unit powers up but there is a bleeping from the door station. A. This means the unit is not able to detect the network for some reason. -Check the SIM card is activated and has calling credit. -Power off the unit, remove the SIM and check it in a mobile phone to verify it can make a call. -
Page 25: Specifications
DTMF tones. Failure of DTMF tones to operate correctly is also a symptom of low reception. Check steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. SPECIFICATION: Models SS1704V-M (3G version) SS1804-4G01ECV-M (4G version) 3G version frequency WCDMA 800/850/900/1900/2100 Mhz GSM 850/900/1800/1900 Mhz,...
