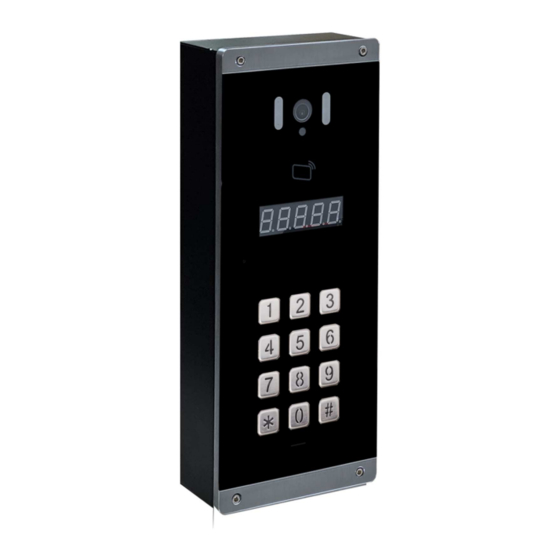

Summary of Contents for Gainwise SS1912-4G01

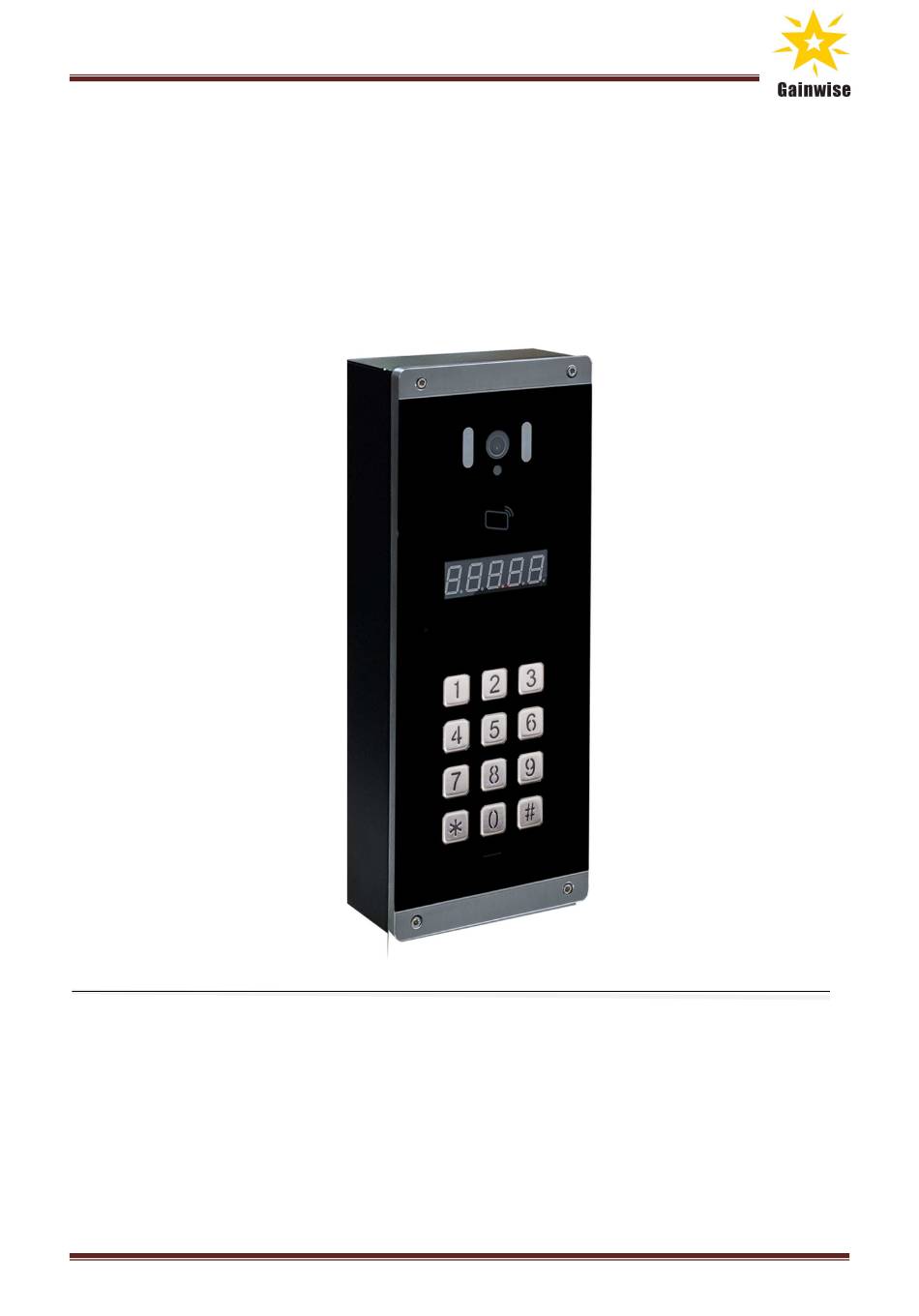

- Page 1 SS1912-4G01 4G Video Intercom User Manual SS1912-4G01 4G LTE VIDEO INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions completely And keep them for future reference. GAINWISE TECHNOLOGY CO., LTD. 1/21...
-
Page 2: Table Of Contents
SS1912-4G01 4G Video Intercom User Manual TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ..............3 SS1912-4G01 4G VIDEO INTERCOM INTRODUCTION ......... 4 INSTALLING THE INTERCOM ................... 5 Site Survey ........................5 Wiring Diagram ......................6 SS1912-4G01 4G Video Intercom Overview ............... 7 INSTALLING THE INTERCOM APP &... -
Page 3: Important Safety Instruction
Be sure to keep this manual for future reference in case of any problem or question should arise. Important Safety Instructions 1. When using this SS1912-4G01 4G video intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Please read the following before using your equipment. -
Page 4: Ss1912-4G01 4G Video Intercom Introduction
The system can add 3000 apartments and also designed with access control functions which can issue 1000 RFID cards and 1000 PIN codes. Package contents Item Description Q’ty SS1912-4G01 4G video intercom Power adapter Operating manual Accessories External antenna option... -
Page 5: Installing The Intercom
The view angle of this video intercom should be around 80° The height of the lens position is suggested between. 145cm~160 cm from the ground. The camera shall avoid facing the sunlight directly. The intercom distance is 50 cm. GAINWISE TECHNOLOGY CO., LTD. 5/21... -
Page 6: Wiring Diagram
Check that the SIM is not locked to a phone and can used in other devices. Check that the SIM does not have a PIN code request 3. Wiring diagram SS1912-4G01 4G Video Intercom Overview Fail safe 1.Resetting to factory defaults Press the reset button on the rear panel of the device and waiting for it to signal beep to release. -
Page 7: Installing The Intercom App & Register Id Account
You can check current server and network LED status by pressing any number on the keypad after power up. Installing SS1912-4G01 Intercom APP and Register ID Account First install an App on user’s mobile with Android system or iOS system. -
Page 8: How Do I Register A Mobile Id Account
ID account registration. press ok (Password) (SMS code) 1.Enter your phone 5.Press “login by mobile number phone number” 2.Enter your password 6.Enter your phone 3.Enter code number 4.Press login 7.Press “Login” Login main menu GAINWISE TECHNOLOGY CO., LTD. 8/21... -
Page 9: (Device Configuration) - Administrator
5. Press “add device to account” 6.Waiting for the device to 7. Enter the address of the 8.The device is added to App finish setup device location and press successfully and connected “Save” to the network via 4G GAINWISE TECHNOLOGY CO., LTD. 9/21... - Page 10 8.Waiting for the device to 9.Enter the address of the 10.The device is added “Password” (last 3 digit) finish setup. device location and and connected to the 7.Press “add device to press save network via LAN account” successfully. GAINWISE TECHNOLOGY CO., LTD. 10/21...
-
Page 11: Adding Room Number
(5 digits) and press “ok” successfully. 76767 Adding User Phone Number 1.Select the room number 2.Press “+” icon 3.Select “phone” 5.Phone number is added in the list. 4.Enter the phone number successfully and press “ok” 932499621 GAINWISE TECHNOLOGY CO., LTD. 11/21... -
Page 12: Configuring Rfid Card
3.Select “Card” and press 4.Tag the card to the in the list. “OK” RF reader point twice. 5. Waiting for about 1 6.Press” ok” to complete 7.Card is added and minute to be adding. shown in the list GAINWISE TECHNOLOGY CO., LTD. 12/21... -
Page 13: Setting Admin Pin Code
1.Insert the SD card 2.Press “Detail” icon 3.Press “Formattable” 4.Press “OK” to format the SD card. NOTE: A video segment is 15 minutes, so wait for 15 minutes for the first setting before you can play back. GAINWISE TECHNOLOGY CO., LTD. 13/21... -
Page 14: Playing Back Recorded Video In The Sd Card
You can customize your face detection settings. 2.Name your intercom 3.Enable or disable 24/7 face detection 4.Setup face detection time 5.Face detection delay time 6.Enable or disable emitting siren sound on the presence of someone at the door GAINWISE TECHNOLOGY CO., LTD. 14/21... -
Page 15: Setting Free Cloud Storage For Face Detection Recorded Video
Dropbox storage successfully. Deleting The Device To unbound the device form intercom App 1.Press “Delete” icon 2. Enter the device “Serial No.” (last 4 digit) 4.Device is deleted and 3.Press “OK” to confirm unbound successfully. GAINWISE TECHNOLOGY CO., LTD. 15/21... -
Page 16: How Do I Set The Apn (Internet Settings) To Connect To The Network
1. Open a web browser and type the IP address Ex: http://192.168.0.147/produce.html in the web browser address bar to access the configuration menu of the device. 2. Enter your mobile service provider’s APN and save settings. 3. reboot the power when you have changed settings GAINWISE TECHNOLOGY CO., LTD. 16/21... -
Page 17: How Do I Change Microphone And Speaker Volume
On the configuration menu of the device, choose "Other" and change the volumes as you desired and save settings. You will need to reboot the power when you have changed settings. Default volume level: 1. Speaker 5 2. Microphone 4 GAINWISE TECHNOLOGY CO., LTD. 17/21... -
Page 18: (Device Operation) - User
3.Enter your PIN code PIN code added (5 digits) 4.Press “OK” Deleting User Account From The Intercom 1.Press the “Delete” icon 2. Press “OK” to confirm deleting 3.User account is deleted, press OK to leave GAINWISE TECHNOLOGY CO., LTD. 18/21... -
Page 19: Operating The Intercom Panel
1.Press” answer” to accept the APP displays call interface video call. 1. zoom out the image 5.microphone 2. zoom in the image 6. screenshot 3. unlock the door 7. hand up the call 4. speaker GAINWISE TECHNOLOGY CO., LTD. 19/21... -
Page 20: Live Browsing
1.exit live browsing 2. zoom out the image 3. zoom in the image 4. browsing time counting 5. unlock the door 6. screenshot 7. switch from live browsing to start conversion with outdoor camera. GAINWISE TECHNOLOGY CO., LTD. 20/21... -
Page 21: Specifications
Storage Temperature -20°C ~ 60° (-4°F ~ 140°F) Storage Humidity 0% ~ 90% Reset Hardware Reset button SIM Card Micro SIM Card Material Alum-Alloy + Acrylic General Waterproof IP65 Product Dimension 276(L)*116(W)*50(H) mm Net Weight 2.5Kg GAINWISE TECHNOLOGY CO., LTD. 21/21...
