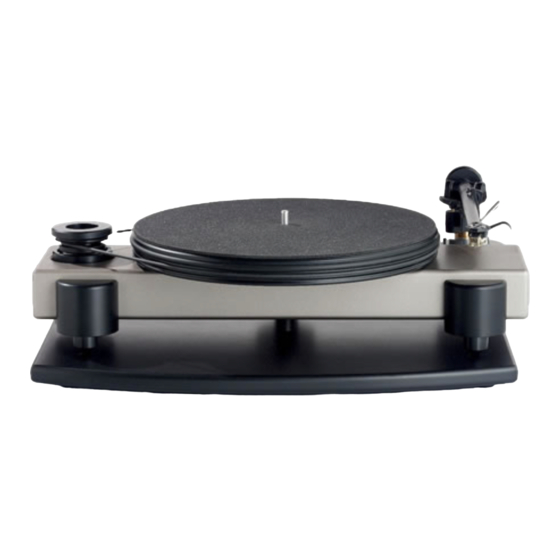

NOTTINGHAM ANALOGUE STUDIO HORIZON SE Assembly Instructions

NOTTINGHAM ANALOGUE STUDIO
128 CORDY LANE, UNDERWOOD, NOTTINGHAM NG16 5FD
Design and Manufacture of Quality Audio Equipment
Telephone: +(44) (0) 1773 762947
Fax: +(44) (0) 1773 533566
V.A.T. REGISTRATION NO. 667 3729 92

ASSEMBLY INSTRUCTIONS FOR THE HORIZON SE TURNTABLE

Put approximately ½ of a capful of oil into the bearing well. Lower the platter assembly into the bearing well and
allow it to settle. This may take a few minutes. Attach pulley onto motor spindle.
Place the motor/pulley assembly on the left side of the plinth with the cutout to the front and cable to the rear.
The height can be adjusted by gently pushing the motor cassette up/down as required using hand pressure. Do
not adjust by pushing/pulling the pulley.
VERY CAREFULLY lower the main body/platter assembly over the motor/pulley assembly. The cutout of the
motor assembly base should be in line with the left leg of the main body, but not touching it. Using a combination
of adjusting the motor cassette height and leveling feet, the platter and pulley can be lined up and leveled. Place
the drive belt provided around the platter and pulley using the appropriate grooves for the desired speed.
Fit the arm into the armbase and adjust using the protractor provided after you have fitted your choice of
cartridge.
