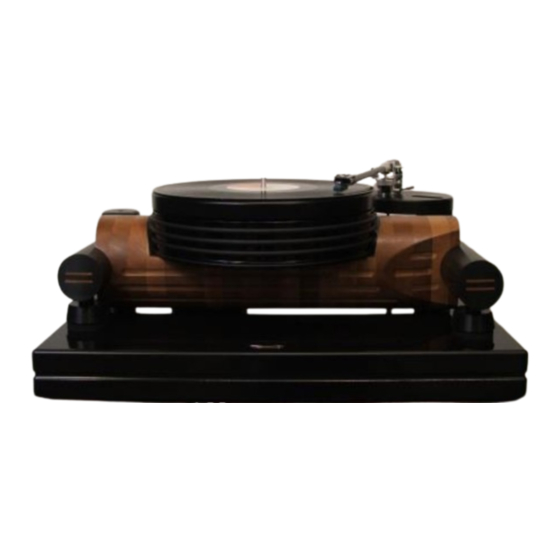

NOTTINGHAM ANALOGUE STUDIO ANNA-LOG Setup Instructions

CONGRATULATIONS ON PURCHASING YOUR NOTTINGHAM ANALOGUE
TURNTABLE.
WE RECOMMEND THESE INSTRUCTIONS BE READ AT LEAST ONCE BEFORE SETUP
BEFORE ANYTHING ELSE YOU MUST MAKE SURE THE SURFACE FOR YOUR ANNA-LOG
TURNTABLE IS STRONG ENOUGH TO TAKE THE OVERALL WEIGHT, WHICH IS IN EXCESS
OF 40 KG AND THAT THE SURFACE IS LEVEL.
WITH CARE UNPACK BOTH BOXES AND MAKE SURE ALL COMPONENTS ARE PRESENT PER
ATTACHED CHECK LIST.
STEP 1:- POSITION THE BASE PLINTH ONTO YOUR FLAT LEVEL SURFACE, ADD 'ANNA-LOG' TO
BASE PLINTH. (PHOTO 1)
LEVEL YOUR TURNTABLE AS REQUIRED, USING THE 4 ADJUSTABLE FEET. USE SPIRIT
LEVEL PROVIDED.
NOTE: - BEARING EARTHING LEAD. (THIS IS USUALLY ATTACHED AT THE FACTORY)
THIS SHOULD BE CONNECTED TO THE EARTHING POINT ON YOU AMPLIFIER.
STEP 2:- POUR 2 CAPS(2.0ml) OF OIL INTO BEARING WELL. THE PIPPETTE SUPPLIED CAN
BE USED FOR EASE OF APPLICATION (PHOTO 2)
STEP 3:- GENTLY LOWER THE SPINDLE INTO THE BEARING AND ALLOW TO SETTLE FOR A FEW
MINUTES (PHOTO 3)
STEP 4:- INSERT 2 LIFTING HANDLES INTO THE HOLES PROVIDED ON TOP OF THE PLATTER. WITH
CARE LOWER PLATTER ONTO SPINDLE (PHOTO 4)
REMOVE LIFTING HANDLES AND RETAIN FOR FUTURE USE.
STEP 5:- PLACE THE THREE DAMPING RINGS AROUND THE PLATTER AND PLACE THE GRAPHITE
MAT ON TOP OF THE PLATTER. (PHOTO 5)
STEP 6:- ALIGN THE 2 DRIVE BELT GROOVES OF THE PULLEY WITH THOSE OF THE PLATTER.
THE MOTOR CASSETTE SLIDES UP AND DOWN IN ITS HOUSING TO ALLOW FOR THIS. DO
NOT PRESS ON PULLEY TO MAKE THESE ADJUSTMENTS. ONLY USE THE OUTER OF
MOTOR CASSETTE AS MOTOR SPINDLE DAMAGE MAY OCCUR. (PHOTO 6)
