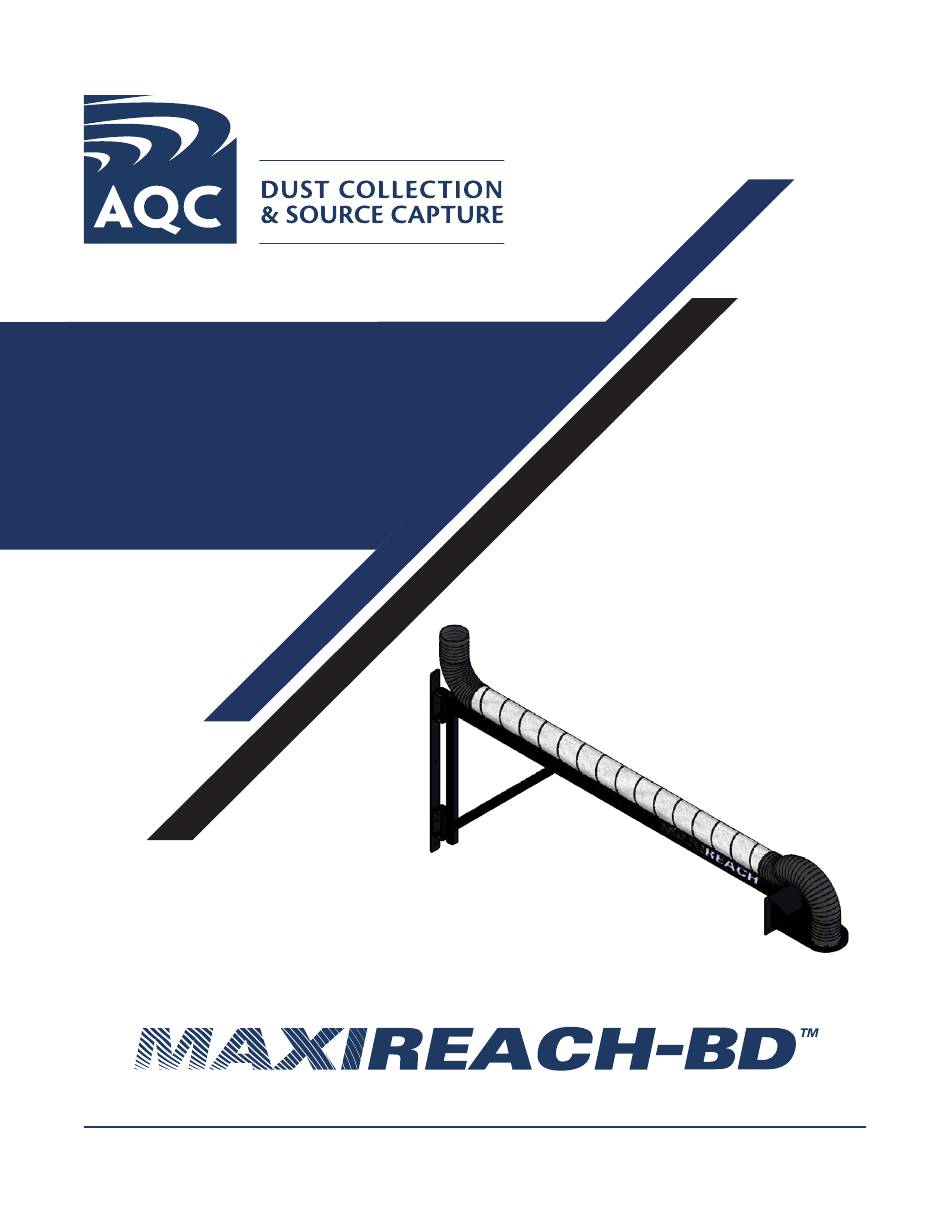

- Page 1 Owner’s manual for installation, use and maintenance This manual is property of the owner. Leave with the unit when set-up and start-up are complete. AQC Dust Collecting Systems inc. reserves the right to change design and specifications without prior notice.
-
Page 2: Table Of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Information on the MAXIREACH-BD extension swing boom . . . . . . . . . . -
Page 3: Introduction
Pivoting Extension Boom 1 INTRODUCTION This present manual refers to the MAXIREACH-BD extension single swing boom. It includes important information concerning the installation, use and maintenance of your collector. Read this manual thoroughly and apply the directives and procedures. Staff and personnel using the system will have to trained on safety measures and maintenance instructions. WARNING! The use of the extension swing boom will require proper installation and handling. Contact A.Q.C. Inc. if you have any doubt in regard to the use of your extension swing boom. Not following directives and procedures could cause injuries or property damages. INFORMATION ON THE MAXIREACH-BD EXTENSION SWING BOOM Model: Serial number: Delivery date: Date of installation: Name of customer:... -
Page 4: Presentation
3.1 Each MAXIREACH unit includes: • Boom base with wall/column support plates. • Horizontal painted steel tube(s) support. • Lateral support beam for horizontal steel tube. • Spiral ducting and flexible hose connections with hose clamps. • Flexible hose for exhaust duct connection. • Support bracket at end of boom for MAXAIR fume arm or MAXIDROP hose drop system. • 3 steps paint finish: degreasing, prime coat and polyurethane final coat. The MAXIREACH-BD swing boom is shipped partly assembled but requires minimal final field assembly. Because of carrier restrictions, swing booms horizontal steel tubes longer than 10' (3 meters) are shipped in two (2) pieces. A joiner with fasteners is included for field assembly. 4 MODEL NUMBERS Suggested Air Volume vs S.P. Models Diameter Weight in. / pascals Number X Length Lb / Kg... -
Page 5: Normal Use
BEAM WITH HOLES ON JOINER JOINER WITH FASTENERS HORIZONTAL SUPPORT TUBES 5 NORMAL USE The MAXIREACH-BD swing boom is designed to remove fumes, gases or dust from the air resulting from a fabrication process. Each MAXIREACH-BD swing boom is built as per the criteria and information supplied by the customer for a specific application and should not serve any other application without the approval of A.Q.C. Inc. 6 OPERATION AND PURPOSE During normal operation, the MAXIREACH-BD swing boom is pulled or pushed into position for source capture to vacuum dust or smoke laden air into the attached equipment such as the MAXAIR fume arm. Particles are vacuumed into the equipment toward an exhaust fan and into a... -
Page 6: Components
Pivoting Extension Boom 7 COMPONENTS 1. Boom base 2. Flexible hose connection to main exhaust duct (hose clamps included) 3. Boom base pivot joints 4. Horizontal steel tube 5. Horizontal steel tube support frame. Angle iron plate for 5' booms, 2" x 2" tubing for booms longer than 5' 6. Flexible hose to bracket 7. Ducting system spiral pipe 8. MAXAIR fume arm or MAXIDROP hose drop bracket 8 INSTALLATION WARNING! Installation of equipment must be performed as per local building laws and regulations. Structure must meet proper weight support of arm and equipment. Booms are required when a component is to be used at a distance from a wall or column. The loading on the structure or column must be know. -
Page 7: Inspection Of Goods
Pivoting Extension Boom 8.1 Inspection of goods The MAXIREACH swing is shipped partly assembled or in sections. Proceed with a visual inspection upon receiving the material and check for any apparent damage that may have occured on freight. Generally, shipment includes the boom base, horizontal tubes, spiral duct and flexible hose. Other optional components such as fume arms, hose reels or hose drops may be delivered on separate skids. 8.2 Location 1. The wall or column where the swing boom will be installed should be able to sustain the weight of such along with the accessories and / or attached equipment. Such support structure should be level for the swing boom to remain steady when not in use. 2. The span or reach of the swing boom should not be encumbered by overhead cranes, lighting, jigs or any other equipment. 3. Install the swing boom in a way to have access to the friction disks or any other equipment that may require scheduled maintenance. 4. If the swing boom is supplied with optional equipment, refer to the proper manual for installation and guidance. -
Page 8: Assembly (Boom Base Pivot)
Pivoting Extension Boom 8.5 Assembly (boom base pivot) 1. Prepare the area where the swing boom will be installed making sure it is clear and free of any obstacle. 2. Install boom base at appropriate or specified height. It is suggested to use minimum grade 5 fasteners to support boom base on support structure. Boom base may also be welded to support structure when permitted. The loading can be quite high, ensure the boom base is copable of with standing the loud. It could be necessary to bolt two 1/4 m plates on either side of a ciment block wall or column to secure the installation. CAUTION: Boom base has to be installed level (horizontally and vertically) to prevent "coasting" of horizontal steel tube. 3 . Once this boom base is secured to support structure, lift horizontal steel tube to pivot joint boom base pivot support bracket. Remove friction disks and steel pins from boom base pivot brackets. 4 . Slide horizontal steel tube pivot sections into boom base pivot brackets. 5. Insert (1) friction disk over and under each pivot section. 6 . Using a spike, align holes of friction disks ready for steel pin insertion. 7. Remove cotter pin from steel pin. Insert steel pin from the top of the boom base pivot support bracket until completely through. Secure with cotter pin. 8. Using the hose clamps supplied, fasten flexible hose from spiral pipe section to main exhaust duct. SUPPORT STRUCTURE LATERAL SUPPORT BEAM 8.6 Assembly of optional equipment on swing boom. -
Page 9: Start Up
Pivoting Extension Boom 8.6.2 MAXIDROP hose drop systems Refer to MAXIDROP installation manual. 8.6.3 MAXIREEL exhaust hose reels Refer to MAXIREEL installation manual BOOM LATERAL POSITIONNING BOOM LATERAL POSITIONNING CABLE AND HANDLE KIT CABLE AND HANDLE KIT 8.6.4 MAXIDRIVE exhaust fans MAXIDRIVE fans can be installed above the flexible hose duct connection. A spacer as shown in drawing below may be required to align flexible hose with fan inlet. Direction of exhausted air has to be confirmed by customer or engineer. 1. Prior to installing the fan, ensure direction of MAXIDRIVE ductwork connected to fan outlet will not come FAN SUPPORT in direct contact with obstacles such as overhead BRACKET cranes, light fixtures, etc. Usage of elbows or bends are allowed. SPACER (SUPPLIED 2. Connect exhaust ductwork to fan outlet. Refer to ON REQUEST MAXIDRIVE installation manual. -
Page 10: Maintenance And Inspection
Pivoting Extension Boom 10 MAINTENANCE AND INSPECTION The chart indicated below shows different inspections and the frequency at which they should be performed. Frequency of Components Procedures inspections Move extension boom left and right and ensure Pivot joints boom moves in desired location. Daily Push extension boom up and down. Ensure there Support base is no excessive “play’’ in movement. Ensure hose clamps are secured. Weekly Flexible hoses Check for cracks or tears in fabric. Replace if necessary. Check sturdiness of support base installation. Yearly All components Check wear on pivot friction discs and steel pins. Check all welds. 11 TROUBLESHOOTING Problem Probable cause Solution Boom base not level Ajust level on boom base. Extension boom does not stay in place Friction discs worn out Replace friction disks. Tear or hole in flexible Replace flexible hose. hose fabric Insufficient suction of dust or smoke... -
Page 11: Warranty
Pivoting Extension Boom 12 WARRANTY Coverage: Aireau Quality Control Inc. or its designated affiliate (the "Seller") selling the product 12.1 (the "Product"), warrants that the Product sold by Seller will be free from defects in material and workmanship for a period of 12 months from the date of its installation or 14 months from the date of shipment by Seller, whichever date is earlier (the "Warranty Period"). Exceptions: This warranty does not apply to any Product or portion thereof that: (i) has been used 12.2 in a manner not in compliance with Seller’s or manufacturer’s documentation and instructions, (ii) has had changes, alterations or repairs made by a person other than a person authorized by Seller, (iii) has been improperly installed or used or has been installed or used contrary to applicable codes, standards, laws and regulations, (iv) has been subjected to improper storage, accident, neglect, misuse or abuse, (v) has been damaged during shipping, (vi) has been subject to damages resulting from normal wear and tear, (vii) has not been used with appropriate fire protection systems or explosion venting when required or (viii) has not been installed by a licensed contractor with experience in fire and explosion hazards and applicable codes, laws and regulations . For greater certainty, this warranty does not apply to filters sold as part of, or for use with, the Product. Unless specifically accepted otherwise in writing by Seller, Seller does not warrant that electrical equipment will comply with any laws or regulations of the customer’s jurisdiction. Claims: To benefit from this warranty, customer must notify Seller in writing of the Product defect, 12.3 which notice shall include a reasonable description of the defect, within 10 days from the date such defect is discovered or ought to have been discovered. Remedy: During the Warranty Period and subject to the terms herein, Seller will, at its option, 12.4 either: (i) repair or replace the Product or any defective parts or components (except for filters) with Product, parts or components (except filters) free from defect or (ii) credit or refund the purchase price of the Product. If Seller so requests, customer must return the defective Product to Seller’s place of business determined by Seller. Shipping, installation, removal and re-installation costs will be solely borne by the customer. The foregoing shall be customer’s sole and exclusive remedy for any defect in the product, its parts and components and for any breach of the warranty herein. Disclaimer: Except as set forth in this section 1, each of seller, its affiliates and their directors, 12.5 officers, subcontractors and representatives (the "seller parties") disclaims all representations... -
Page 12: Limitation Of Liability
Pivoting Extension Boom 13 LIMITATION OF LIABILITY 13.1 Limitation of Liability: Notwithstanding anything to the contrary, in no event will the seller parties’ liability arising out of, or related to, the product or its parts and components, whether pursuant to contractual or extracontractual liability, tort or under any other theory of liability, exceed the price paid to seller for the product giving rise to such liability. 13.2 Exclusion of Consequential and Similar Damages: Notwithstanding anything to the contrary, in no event will the seller part ies be liable for any indirect, punitive, special, exemplary, incidental, consequential or other similar damages of any type or kind (including loss of revenue, profits, use or other economic advantage, damages due to product failure, work stoppage or delays in delivery) arising out of, or in any way connected to, the product or its use, breach of contract, tort (including negligence), strict liability, product liability, or otherwise, regardless of cause, even if the seller parties had previously been advised of the possibility of such damages or could have reasonably foreseen them. Fire and Explosion and Acceptance of Risk: Customer acknowledges that improper installation 13.3 or use of the Product may result in fire or explosion. To minimize such risks, proper installation, operation, and maintenance of the Product in accordance with all applicable codes, standards, laws and regulations is critical. Prior to installation and use, customer shall ensure that the Product meets the applicable codes, laws and regulations, including those related to the addition of appropriate fire protection systems or explosion venting. Installation shall be performed by a licensed contractor with experience in fire and explosion and applicable codes, laws and regulations.
