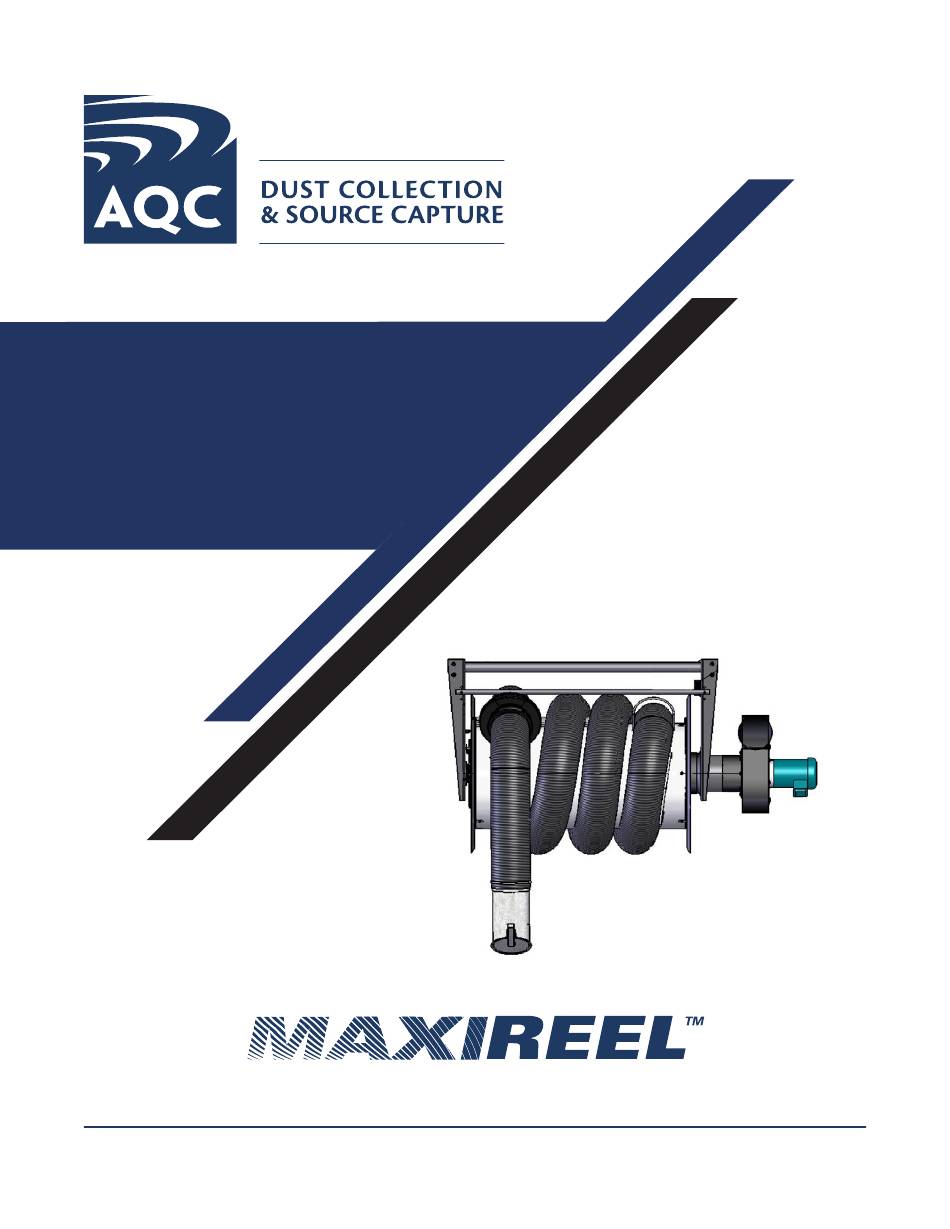

Owner's manual for installation,
use and maintenance
HR (spring) model and HRM (motorized) model
This manual is property of the owner. Leave with the unit when set-up and start-up are complete.
AQC Dust Collecting Systems inc. reserves the right to change design and specifications without prior notice.
Advertisement
Table of Contents
Related Manuals for AQC MAXIREEL
Summary of Contents for AQC MAXIREEL
- Page 1 HR (spring) model and HRM (motorized) model This manual is property of the owner. Leave with the unit when set-up and start-up are complete. AQC Dust Collecting Systems inc. reserves the right to change design and specifications without prior notice.
-
Page 2: Table Of Contents
Information on MAXIREEL hose reel . . . . . . . . . . . . . . . . . . . . -
Page 3: Introduction
Fumes and gas exhaust hose reel INTRODUCTION This present manual refers to the MAXIREEL hose reel. It includes important information concerning the installation, usage and maintenance of your unit. Read this manual thoroughly and apply the directives and procedures. Staff and personnel using the system will have to trained on safety measures and maintenance instructions. WARNING! The use of the fume arm will require proper installation and handling. Contact A.Q.C. Inc. if you have any doubt in regard to the use of your extension swing boom. Not following directives and procedures could cause injuries or property damages. INFORMATION ON MAXIREEL HOSE REEL Model: Serial number: Delivery date: Date of installation: Name of customer: Address: Accessories: Other:... -
Page 4: Presentation
Fumes and gas exhaust hose reel 3 PRESENTATION The MAXIREEL hose reel is designed to be installed near the source of fume or CO created by vehicles while running and to be exhausted outside of the facility. A tailipe adaptor or hood at the end of the flexible hose is required for proper source capture of contaminants. The flexible hose can also reach inside of tanks, ship’s hulls or other confined areas where conventional equipment cannot reach in order to facilitate the extraction of polluted air from working areas. Flexible hose mounted on the reel allows extraction of gas-air mixtures to a maximum 1500°F, 815°C (depending on the hose selected). Other special hoses may be supplied as per application. 3.1 Each spring hose reel unit includes: • Bolted reinforced steel frame • Flexible hose inlet connection • Exhaust outlet (to fan or main duct) •... -
Page 5: Model Numbers
Fumes and gas exhaust hose reel 4 MODEL NUMBERS Because of the wide variety of model numbers, it is suggested to refer to the promotional leaflet. 5 NORMAL USE The MAXIREEL hose reel is a rotating storage and dispensing device for exhaust hoses in diameters of 3" (75mm), 4" (100mm), 5" (125mm), 6" (150mm) and 8" (200mm). The flexible hose and attached nozzle are rolled onto the drum. 6 OPERATION AND PURPOSE During normal operation, the MAXIREEL hose reel tailpipe adaptor is fitted onto the vehicle exhaust pipe. The tailpipe adaptor must be larger in diameter than the vehicle exhaust pipe in order to draw ambiant air and cool the exhaust fume temperature. The spring recoil system or the motorized... -
Page 6: Spring Hose Reel Components
Fumes and gas exhaust hose reel 7 SPRING HOSE REEL COMPONENTS 1. Tubular structure 7. Hose stop bar 2. Side panel 8 . ø 6" air outlet 3. Drum 9. Spring cassette 10 . Flexible hose 4 . Drum sheaf 11 . Hose stop 5 . Hose guide 12 . -
Page 7: Inspection Of Goods
Fumes and gas exhaust hose reel WARNING! Installation of equipment must be performed as per local building laws and regulations. Structure must meet proper weight support of arm and equipment. Installation must be performed by a competent and qualified contractor. Structural grade fasteners must be used for holding the hose reel and components to ceiling, trusses or joyces. 7.2 Inspection of goods The MAXIREEL hose reel may be shipped on one (1) skid or attached in pairs. Proceed with a visual inspection upon receiving the material for any damages or missing skid(s). Note 1: If damages are apparent upon receiving the material, indicate so on receiving slip (freight waybill) and confirm by having the truck driver sign the waybill with any discrepancy. AQC takes photos of material prior to shipping. Inspect hose reel appearance when receiving the goods. Report damages to carrier immediately. Failure to do so will void future claims. Note 2 : Certain oversized tailpipe adaptors may be shipped not attached to flexible hoses. Minimal assembly may be required at jobsite. 7.3 Location 1 . The area where the hose reel will be installed should be able to sustain the weight of such along with the accessories, ducting, fan or any optional equipment. 2. Installer should ensure area around the hose reel will be free of obstacles such as beams, lighting fixtures, overhead cranes, etc. 3 . Height of installation for hose reel bracket should not be higher than the actual length of flexible hose. If permitted, nozzle and hose should be hanging about 7' (2.2m) above the floor in order for the user to grab the nozzle and pull on hose. If not permitted, a cable and handle should be installed on the nozzle so user can grab handle to pull down flexible hose when needed. -
Page 8: Assembly On Building Structure
Fumes and gas exhaust hose reel 8 ASSEMBLY ON BUILDING STRUCTURE WALL INSTALLATION CEILING OR TRUSS INSTALLATION NOT RECOMMENDED RECOMMENDED Note: Wall mounted hose reel should have hose away from the wall. 9 INSTALLATION WARNING! Hose reel is operated by two (2) heavy duty springs. Do not remove hose stop from flexible hose when installing. Hose reel spring ratchet lock may disengage if removed causing injuries and/or property damages. Do not remove flexible hose from reel when installing. Contact AQC or refer to "Flexible hose replacement" section of this manual if required. 9.1 Typical hose reel installation Multiple hose reel system with single exhaust fan. -
Page 9: Single Hose Reel System With Direct Mount Exhaust Fan
Fumes and gas exhaust hose reel 9.2 Single hose reel system with direct mount exhaust fan 1. Locate the area where the hose reel will be installed. Ensure hose reel air outlet faces the proper direction for connection to main exhaust duct system. 2. Bolt the hose reel tubular structure to joyces or wall. 3. Connect flexible hose or spiral pipe from hose reel air outlet to main exhaust duct system. 4. If hose reel is equiped with direct mounted exhaust fan, connect spiral pipe to exhaust stack outside of the facility. 9.3 Hose reel with extension swing boom (single pivot only) -
Page 10: Optional Equipment
Fumes and gas exhaust hose reel 9.4 Optional equipment 1. Movement sensor with hose stop for automatic exhaust fan START/STOP.(requires reel mounted control panel) Note: For proper operation, hose stop has to be aligned with movement sensor and reflector. Contact AQC, fore more details on eletrical panel (refer to electrcial section of this manual). MOVEMENT REFLECTOR HOSE STOP SENSOR 2. Mechanical spring damper at reel outlet. Usually required if hose is equipped with "open" type nozzles. 3. Low to extreme temperature hoses. -
Page 11: Start Up (Motorized Hose Reel With Wall Mount, Pendant Or Wireless Remote Controls)
7. Start exhaust fan and ensure vacuum is adequate. 8. If flexible is left hanging at "grab" level, ensure it does not become an obstacle to personnel or moving vehicles. 9 . Ensure length of flexible hose is sufficient to reach tailpipe of vehicle to be serviced. 10 . If hose reel is equipped with mechanical damper, ensure it is in the "OPEN" position when hose is uncoiled from reel. 10.1 Start up (Motorized hose reel with wall mount, pendant or wireless remote controls) Note 1: AQC adjusts the maximum UP/DOWN limit switches when hose is supplied by factory. DO NOT ATTEMPT TO READJUST LIMIT SWITCHES. If customer supplies his hose, refer to flexible hose replacement procedure in this manual. 1. Press or turn the DOWN button on remote control. Note 2: Be ready to stop the reel if hose does not stop automatically after uncoiling all it’s length and starts to "rewrap" backward. 2. When hose is uncoiled completely and rell stopped by itself, press or turn the UP button. Note 3: Be ready to stop the reel if hose does not stop automatically after coiling all it’s length and starts to "rewrap" over the drum. 3 . Flexible hose may also be stopped anywhere while coiling or uncoiling. Press or turn the STOP button and ensure the reel stops turning. UP or DOWN action can then be activated.Proceed... - Page 12 Fumes and gas exhaust hose reel WARNING! To reduce risk of severe injury or matrial damages, it is advised to have two (2) technicians working on the parameters of limit switches. One (1) technician to operate the UP/DOWN switches (wall mounted or pendant) and one (1) to set the limit switches. Hose reel is factory set for a safe and proper use of hose length contained on hose drum. To readjust or modify the limit switches, refer to step by step procedure listed below. 1 . Remove tube motor protective cap covering the UP/DOWN limit switch buttons. Figure 7 Figure 8 Location to the protective cap is between the side round disk (figure 7) and side support bracket (figure 8). The use of a long stem flat head screwdriver could be needed. 2. Both buttons (yellow for maximum DOWN and white for maximum UP hose positions) underneath the protective cap should be "popped up". This determines the limit switches were set and locked.
- Page 13 Fumes and gas exhaust hose reel 3 . To unlock and reset the DOWN limit switch, press on the YELLOW push button so it "pops" down, unlocking the limit switch. The technician operating the pendant or wall controls witch will be asked to turn the rotary switch to the DOWN position. 4. When all of the flexible hose has unwrapped from the hose reel drum,(refer to proper maximum hose DOWN position in drawing below), the technician operating the rotary switch will be asked to turn the knob to the STOP position. 5 . The technician operating the push button limit switches will then press the YELLOW button so it "pops" up locking the limit switch into place. 6 . To unlock and reset the UP limit switch, press on the WHITE push button so it "pops" down, unlocking the limit switch. The technician operating the pendant or wall control switch will be asked to turn the rotary switch to the UP position. 7 . When all of the hose or as maximum length of hose that can be wrapped around the drum has been completed, the technician operating the rotary switch will be asked to turn the knob to the STOP position.
-
Page 14: Adjustment & Functionality
Fumes and gas exhaust hose reel 12 ADJUSTMENT & FUNCTIONALITY For motorized reels equipped with radio signal controls ONLY. Note on wireless transmitters: Each hose reel has his assigned remote transmitter pre-set at the factory. UP/DOWN limits are also pre-set at the factory. Hose reel is factory set for a safe and proper use of hose length contained on hose drum. To readjust or modify the limit switches, refer to step by step procedure listed below. Regular operation of the wireless remote is performed from the ground but for UP/DOWN setting results, it is best to have the transmitter no more than 6" (1,8 meter) from the hose reel and aimed at the hose reel. To assign a new or a replacement transmitter with a definite hose reel: 1 . Push the UP and DOWN buttons on the transmitter simultaneously and release the buttons after the hose reels jogs briefly up and down indicating the transmitter is now linked to the hose reel tube motor integrated receiver. PUSH UP PUSH DOWN 2 . Press the STOP/MY and UP or DOWN buttons simultaneously depending on which setting you need to do first. When the flexible hose has reached the desired maximum UP or DOWN position, release pressing the buttons. Additional minute adjustments may be performed by pressing the DOWN or UP position that was selected to start with. 3. Proceed with UP or DOWN other settings using the same procedure as in step 2 mentioned above. 4 . Press the programming button on the back of the transmitter to confirm and lock settings. -
Page 15: Replacing Hose (Motorized)
Fumes and gas exhaust hose reel 13 REPLACING HOSE (MOTORIZED) Note: It is advised to have two (2) technicians to perform hose replacement on the MAXIREEL hose reel. AQC will not be held responsible of hose reel operation if customer does not replace defective or damaged hose with identical new hose. Technicians or qualified personal will need to work from a safe raised platform if hose reel is installed at ceiling height. Safety note: Proper gear such as harnesses and hard hats should be be worn as per OSHA safety standards if technicians need to work in an elevated area. DO NOT OPERATE REEL UNTIL STEPS LISTED BELOW HAVE BEEN COMPLETED. 1 . Press the DOWN button to unwrap the hose completely from the drum. DO NOT OPERATE REEL AFTER THIS STEP. HOSE STOP 2. Remove hose reel drum cover. 3. Remove hose clamp from reel exhaust inlet inside hose reel drum. 4 . Loosen the U clamp holding the flexible hose onto the reel drum. AT THIS POINT, A TECHNICIAN SHOULD HOLD THE HOSE TO STOP IT FROM FALLING DOWN TO THE FLOOR. -
Page 16: Replacing Hose (Spring Reel)
Fumes and gas exhaust hose reel 13.1 Replacing hose (spring reel) Note: It is advised to have two (2) technicians to perform hose replacement on the MAXIREEL hose reel. AQC will not be held responsible of hose reel operation if customer does not replace defective or damaged hose with identical new hose. Technicians or qualified personal will need to work from a safe raised platform if hose reel is installed at ceiling height. Safety note: Proper gear such as harnesses and hard hats should be be worn as per OSHA safety standards if technicians need to work in an elevated area. DO NOT OPERATE REEL UNTIL STEPS LISTED BELOW HAVE BEEN COMPLETED. 1. Lower flexible hose completely off the reel. 2 . Lock hose reel with ratchet lock system. Remove hose reel drum cover. Safety note: It is recommended to use vise-grips on drum sheaf # 4, front and back of the hose stop bar #4. 3 . Continue steps 3 to 15 on motorized reel version. 14 ELECTRICAL CONNECTIONS Note: Because of the wide variety of possible electrical connections with exhaust fans, proximity switches, etc, AQC will supply appropriate drawings as per selection. If reels are equipped with side mounted control panels, electrical diagram are pasted in the cover of the panel. 14.1 Wall mounted motorized reel UP / DOWN / STOP control switch wiring connection Note: Pendant UP /DOWN /STOP switch is factory installed to hose reel... -
Page 17: Maintenance And Inspection
Fumes and gas exhaust hose reel 15 MAINTENANCE AND INSPECTION The chart indicated below shows different inspections and the frequency at which they should be performed. Frequency of Components Procedures inspections Ensure flexible hose recoils and uncoils properly Daily Springs or tube motor from the hose reel drum. Check for possible leaks or tears. Repair or replace if necessary. Weekly Flexible hoses Ensure hose clamps are fastened correctly to tail pipe adaptor. Perform a complete inspection of hose reel and components. Yearly Hose reel assembly Check status of ratchet lock assembly for spring version. Check tripod attachments on motorized version. Replace if necessary. 16 TROUBLESHOOTING Problem Probable cause Solution Remove the tailpipe adaptor and hose stop from flexible... - Page 18 Fumes and gas exhaust hose reel Problem Probable cause Solution Release ratchet lock manually on hose reel spring cas- sette. Adjust hose stop on flexible hose so that the hose Ratchet lock is jammed stop rests against the hose stop bar and ratchet lock is between two (2) sets of gears. (Spring reel) Flexible hose will not recoil Replace spring assembly including the spring onto hose reel drum cassettes. DO NOT ATTEMPT TO REPLACE Spring assembly SPRINGS ONLY. EXTREME INJURIES COULD OCCUR is broken BY REMOVING THE SPRINGS FROM THE SPRING CASSETTE. Tube motor is defective Replace tube motor. Limit switches are not Proceed with setting the limit switches procedure adjusted properly...
-
Page 19: Warranty
Fumes and gas exhaust hose reel 17 WARRANTY Coverage: Aireau Quality Control Inc. or its designated affiliate (the "Seller") selling the product 17.1 (the "Product"), warrants that the Product sold by Seller will be free from defects in material and workmanship for a period of 12 months from the date of its installation or 14 months from the date of shipment by Seller, whichever date is earlier (the "Warranty Period"). Exceptions: This warranty does not apply to any Product or portion thereof that: (i) has been used 17.2 in a manner not in compliance with Seller’s or manufacturer’s documentation and instructions, (ii) has had changes, alterations or repairs made by a person other than a person authorized by Seller, (iii) has been improperly installed or used or has been installed or used contrary to applicable codes, standards, laws and regulations, (iv) has been subjected to improper storage, accident, neglect, misuse or abuse, (v) has been damaged during shipping, (vi) has been subject to damages resulting from normal wear and tear, (vii) has not been used with appropriate fire protection systems or explosion venting when required or (viii) has not been installed by a licensed contractor with experience in fire and explosion hazards and applicable codes, laws and regulations . For greater certainty, this warranty does not apply to filters sold as part of, or for use with, the Product. -
Page 20: Limitation Of Liability
Fumes and gas exhaust hose reel 18 LIMITATION OF LIABILITY 18.1 Limitation of Liability: Notwithstanding anything to the contrary, in no event will the seller parties’ liability arising out of, or related to, the product or its parts and components, whether pursuant to contractual or extracontractual liability, tort or under any other theory of liability, exceed the price paid to seller for the product giving rise to such liability. 18.2 Exclusion of Consequential and Similar Damages: Notwithstanding anything to the contrary, in no event will the seller part ies be liable for any indirect, punitive, special, exemplary, incidental, consequential or other similar damages of any type or kind (including loss of revenue, profits, use or other economic advantage, damages due to product failure, work stoppage or delays in delivery) arising out of, or in any way connected to, the product or its use, breach of contract, tort (including negligence), strict liability, product liability, or otherwise, regardless of cause, even if the seller parties had previously been advised of the possibility of such damages or could have reasonably foreseen them. Fire and Explosion and Acceptance of Risk: Customer acknowledges that improper installation 18.3 or use of the Product may result in fire or explosion. To minimize such risks, proper installation, operation, and maintenance of the Product in accordance with all applicable codes, standards, laws and regulations is critical. Prior to installation and use, customer shall ensure that the Product meets...
