Turbo Fans
Turbo Chrome
Art no.:
33600
Turbo White
Art no.:
33500
All installations must comply with guidelines which are based on a zonal concept Fig.1. This concept must be fol-
lowed to ensure the safe installation. These regulations apply to domestic installations only. Installations must be
made in accordance with the current IEE wiring regulations and relevant building regulations.
Thank you for purchasing this HiB product.
fitted by a suitably qualified, Part P registered electrician.
Suitable for installation in zones: 2 & outside zones
Components
1x Fascia.
1x LED Driver - (for illuminated products only)

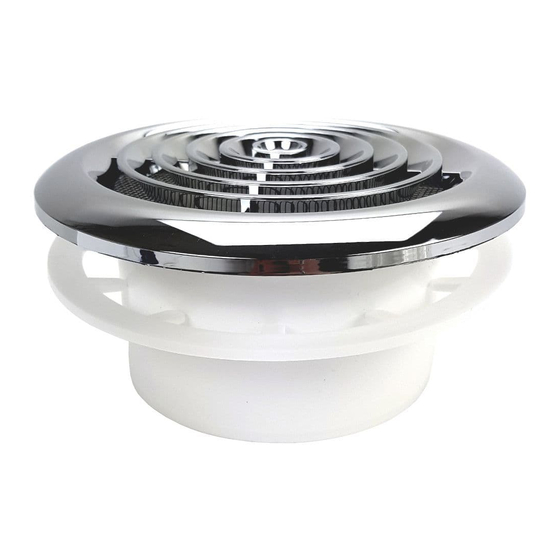

1x High powered Inline Fan
1x 3 metre flexible ducting
1x White external fixed grille
4x Galvanized steel hose clamps
1x Screw and dowels pack
1x Plastic Screwdriver
1x Fitting instructions
1x Foam strip.
Once the fan is powered this may turn on straight away. This is because the fan has a capacitor and holds an initial charge.
Non-Illuminated
Non-Illuminated
We recommend that all electrical bathroom products should only be
Electrical safety information- Ensure mains power supply is switched off
before starting installation. Before drilling, ensure there are no hidden
cables or pipes in the wall. The Turbo illuminated Inline Fans are supplied
with a 5 Watt LED Lamp. DO NOT replace with any other lamp as this will
invalidate any warranty. DO NOT exceed the stated wattage.
Please note:
Please retain this leaflet for future reference.
Turbo Chrome
Illuminated
Cool White
Art no.:
32300
Warm White
Art no.:
33900
Turbo White
Illuminated
Cool White
Art no.:
32200
Warm White
Art no.:
34000
R211007
Fig.1
Ver No.
1.0 Oct 2021
