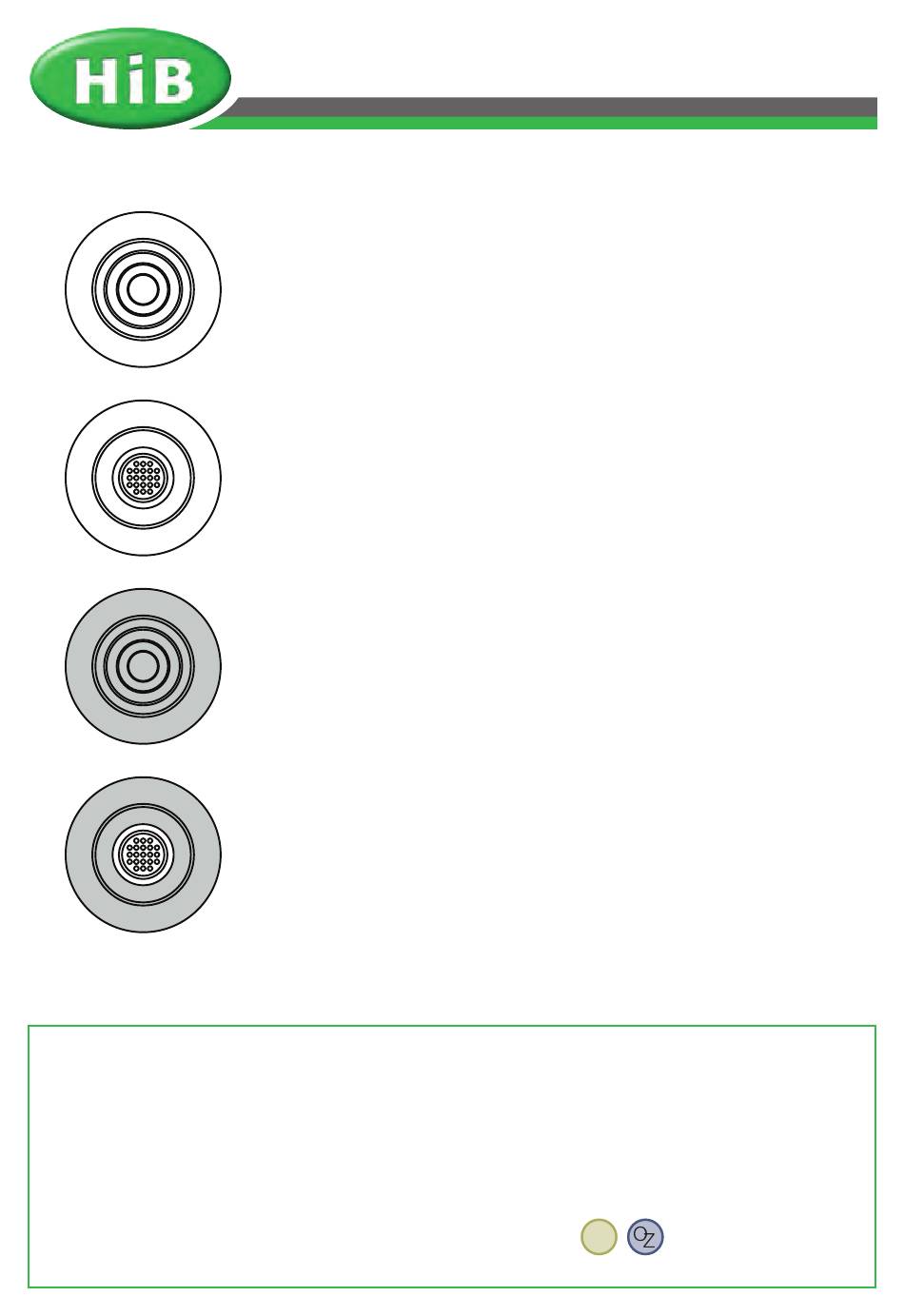

Quality Bathroom Products

Fixing Instructions

Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them during installation to
ensure that your product is fitted safely and that it retains its high quality finish.
Please retain this leaflet for future reference.
Before drilling, ensure there are no hidden cables or pipes in the wall
These products are suitable for installation in zones:
Please see Figure 1 on the back page for details

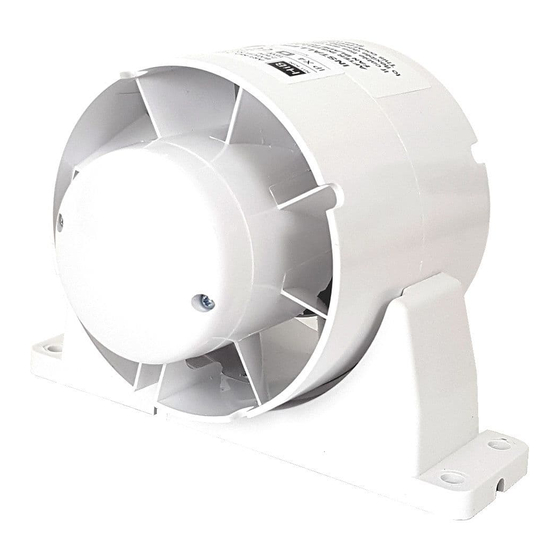

Turbo Inline Fan, White - Non Illuminated Art no.33500
Turbo Inline Fan, White - Cool White LED Art no.32200
Turbo Inline Fan, White - Warm White LED Art no.34000
Turbo Inline Fan, Chrome - Non Illuminated Art no.33600
Turbo Inline Fan, Chrome - Cool White LED Art no.32300
Turbo Inline Fan, Chrome - Warm White LED Art no.33900
2
Ver No. 3.0 Sept 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo 33500 and is the answer not in the manual?

Questions and answers

Summary of Contents for HiB Turbo 33500

  • Page 1 Turbo Inline Fan, Chrome - Warm White LED Art no.33900 Fixing Instructions Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
  • Page 2 Quality Bathroom Products Quality Bathroom Products In The Box Includes: 1. Fascia 2. LED Driver (32200, 34000, 32300 & 33900 only) 3. High powered Inline fan, 4. 3 metre flexible ducting 5. White external fixed grille 6. Four galvanized steel hose clamps 7.
  • Page 3 Mounting 1. Ceiling mounted ventilation should be ducted through the roof space, by ducting to an external soffit under the eaves or grille in the slope of your roof. NB: Ducting installed between a floor and ceiling can only run between joists, not across them.
  • Page 4 Quality Bathroom Products Quality Bathroom Products 7. Place motor in desired 8. Fix motor to desired surface, location and mark using suitable wall plugs if fixing holes. necessary. 9. Connect the flexible ducting to both sides of the Inline fan with the metal hose clamps.
  • Page 5 11. Using a screw driver, 12. Using a screw driver, remove cable grip. remove cover. Feed cable through hole & replace grip. 13. Wire the fan as per the diagram below. QF - Circult Breaker ST - External Switch (e.g. light switch) 14.
  • Page 6 Quality Bathroom Products Quality Bathroom Products Operation The fan is rated for connection to single-phase AC220-240 V / 50/60 Hz power mains. The fan is designed for continuous operation always connected to mains power. Air motion direction in the system must match the pointer on the fan casing.
  • Page 7 Timer System The fan is operational after the control voltage is supplied by the external switch (e.g., by the light switch) to the input terminal LT. After the fan is switched off the fan continues to operate within the timer period set by the timer from 2 to 30 minutes.
  • Page 8 HiB Ltd. Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they...
