HiB SELV Hush Chrome Fitting Instructions

Wall mounted fans

Download this manual

SELV Hush & SELV Breeze Wall Mounted Fans

Thank you for purchasing this HiB product.

Please read through these instructions carefully and refer back to them during

installation to ensure that your product is fitted safely and that it retains its high

quality finish.

Please retain this leaflet for future reference.

Before drilling, ensure there are no hidden cables or pipes in the wall.

Suitable for installation in zones: 1,2 & Outside Zones

Please see Fig. 1 on the back page for details

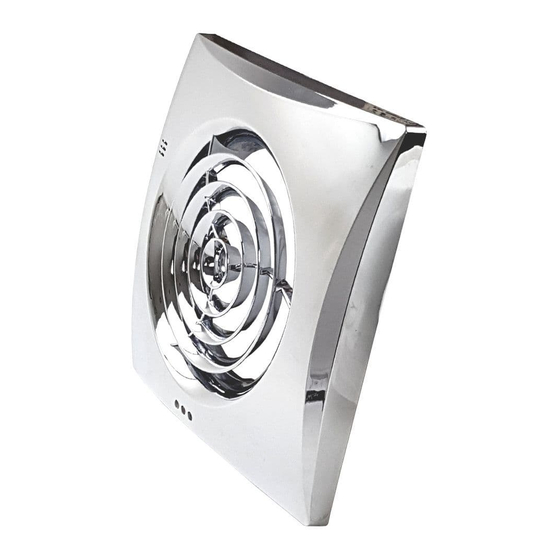

SELV Hush Chrome

Art no.

34600

SELV Hush White

Art no.

34500

SELV Breeze Chrome

Art no.

34800

SELV Breeze White

Art no.

34700

#05 005 R161206

Ver No.

1.1 Jan 2017

Need help?

Do you have a question about the SELV Hush Chrome and is the answer not in the manual?

Page 1 SELV Breeze White Art no. 34700 Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
Page 2 Technical Information Electrical Connection Power input: Breeze & Hush - 230v (must be Hush connected to 12v transformer supplied) Maximum ventilation volume: Breeze - 77m Please ensure that the fan unit is positioned in Hush - 86m accordance with the diagram below i.e. With Power consumption: Breeze - 14w the electrical access point (5) top left.
Page 3 Connect the electrical wiring to the motor according to the diagram below. - Switching fan and luminaire on/off together with one switch. 230v Transformer Supply Fix the fan to the wall/ceiling using 4 screws. Replace the cover and protective grille. hib.co.uk...
Page 4 ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
