Cyclone Fans
Cyclone Chrome
Art no.:
33400
Cyclone White
Art no.:
33300

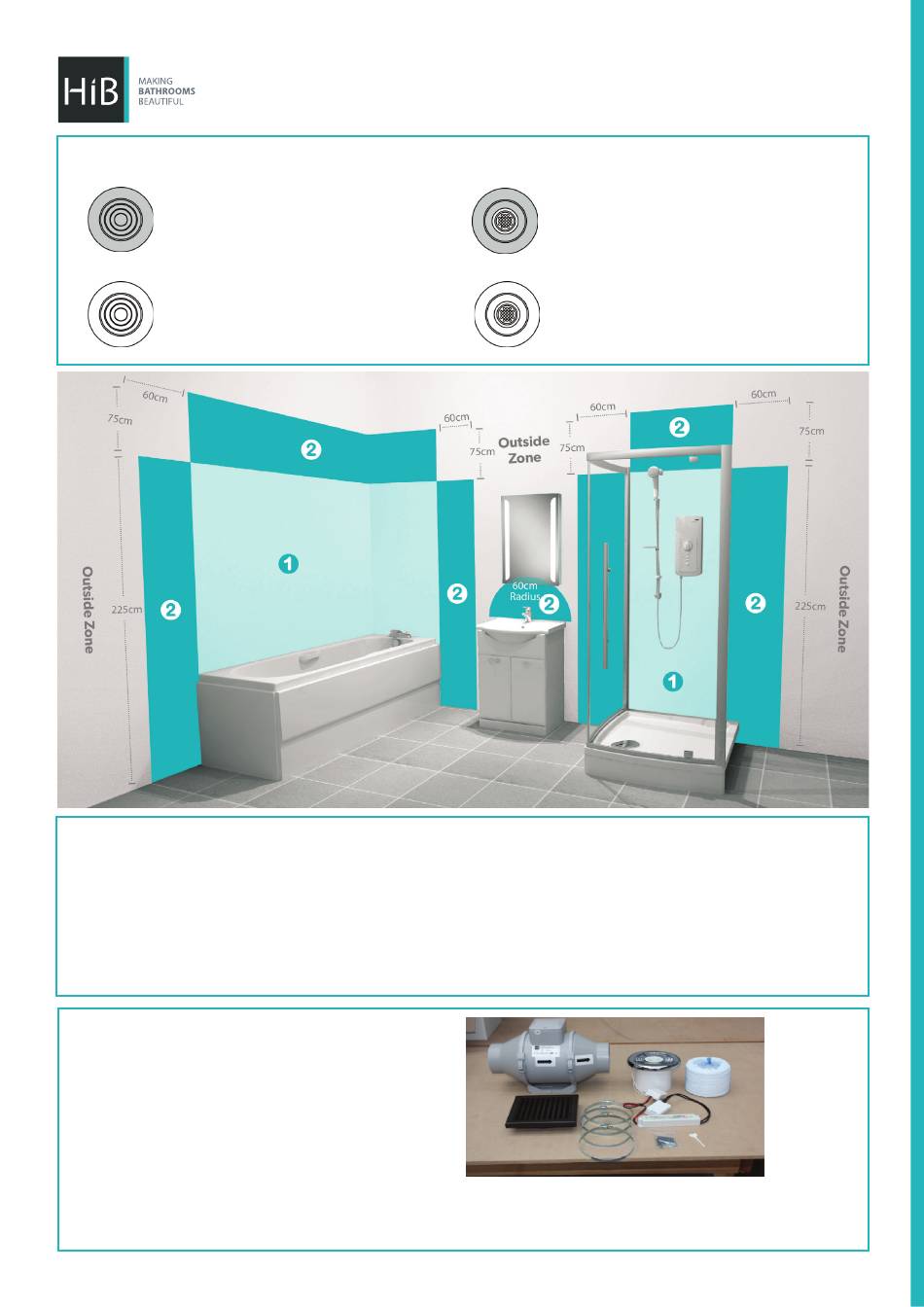

All installations must comply with guidelines which are based on a zonal concept Fig.1. This concept must be fol-
lowed to ensure the safe installation. These regulations apply to domestic installations only. Installations must be
made in accordance with the current IEE wiring regulations and relevant building regulations.
Thank you for purchasing this HiB product.
fitted by a suitably qualified, Part P registered electrician.
Suitable for installation in zones: 2 & outside zones
Components
1x Fascia
1x LED Driver - (for illuminated products only)

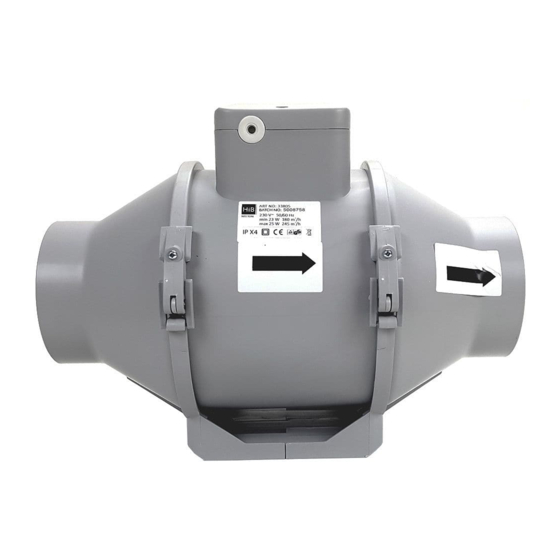

1x High powered Inline Fan
1x 3 metre flexible ducting
1x Brown external fixed grille
4x Galvanized steel hose clamps
1x Screw and dowels pack
1x Plastic Screwdriver
1x Fitting instructions
Non-Illuminated
Non-Illuminated
We recommend that all electrical bathroom products should only be
Electrical safety information - Ensure mains power supply is
switched off before starting installation. Before drilling, ensure
there are no hidden cables or pipes in the wall.
Please retain this leaflet for future reference.
Cyclone Chrome
Illuminated
Cool White
Art no.:
32700
Warm White
Art no.:
33700
Cyclone White
Illuminated
Cool White
Art no.:
32600
Warm White
Art no.:
33800
R210728
Fig.1
Ver No.
1.0 Jan 2019
