1394A_J2: IEEE 1394A header
Use this header to connect to any IEEE 1394A interface.
Pin
Signal Name
1
Cable-power
2
GND
3
TPB-
4
TPB+
C
o
n
n
e
c
t
i
n
g
I
/
O
C
o
n
n
e
c
t
i
n
g
I
/
O

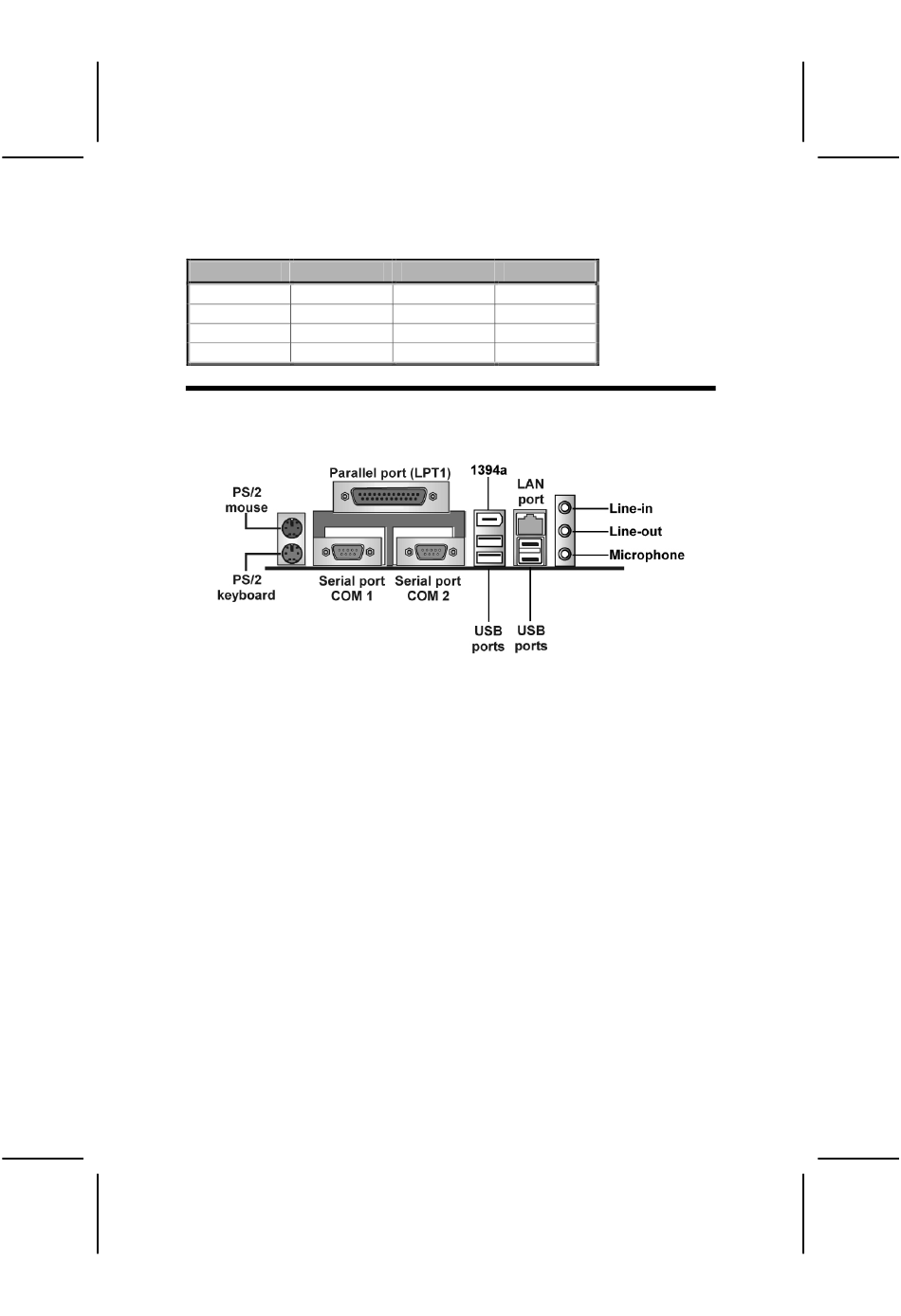

The backplane of the mainboard has the following I/O ports:
PS/2 Mouse
PS/2 Keyboard
LPT1
COM1/2
1394a Port (optional)
Audio Ports
LAN Port (optional)
USB Ports
Pin
Signal Name
5
TPA-
6
TPA+
7
Chassis GND
8
NC
D
e
v
i
c
e
s
D
e
v
i
c
e
s
Use the upper PS/2 port to connect a PS/2
pointing device.
Use the lower PS/2 port to connect a PS/2
keyboard.
Use LPT1 to connect printers or other parallel
communications devices.
Use the COM ports to connect serial devices
such as mice or fax/modems. COM1 is identified
by the system as COM1/3. COM2 is identified by
the system as COM2/4.
Use the 1394a port to connect any Firewire
device.
Use the three audio ports to connect audio
devices. The first jack is for stereo line-in signal.
The second jack is for stereo line-out signal. The
third jack is for microphone.
Connect an RJ-45 jack to the LAN port to
connect your computer to the Network.
Use the USB ports to connect USB devices.
23
