Checking Jumper Settings

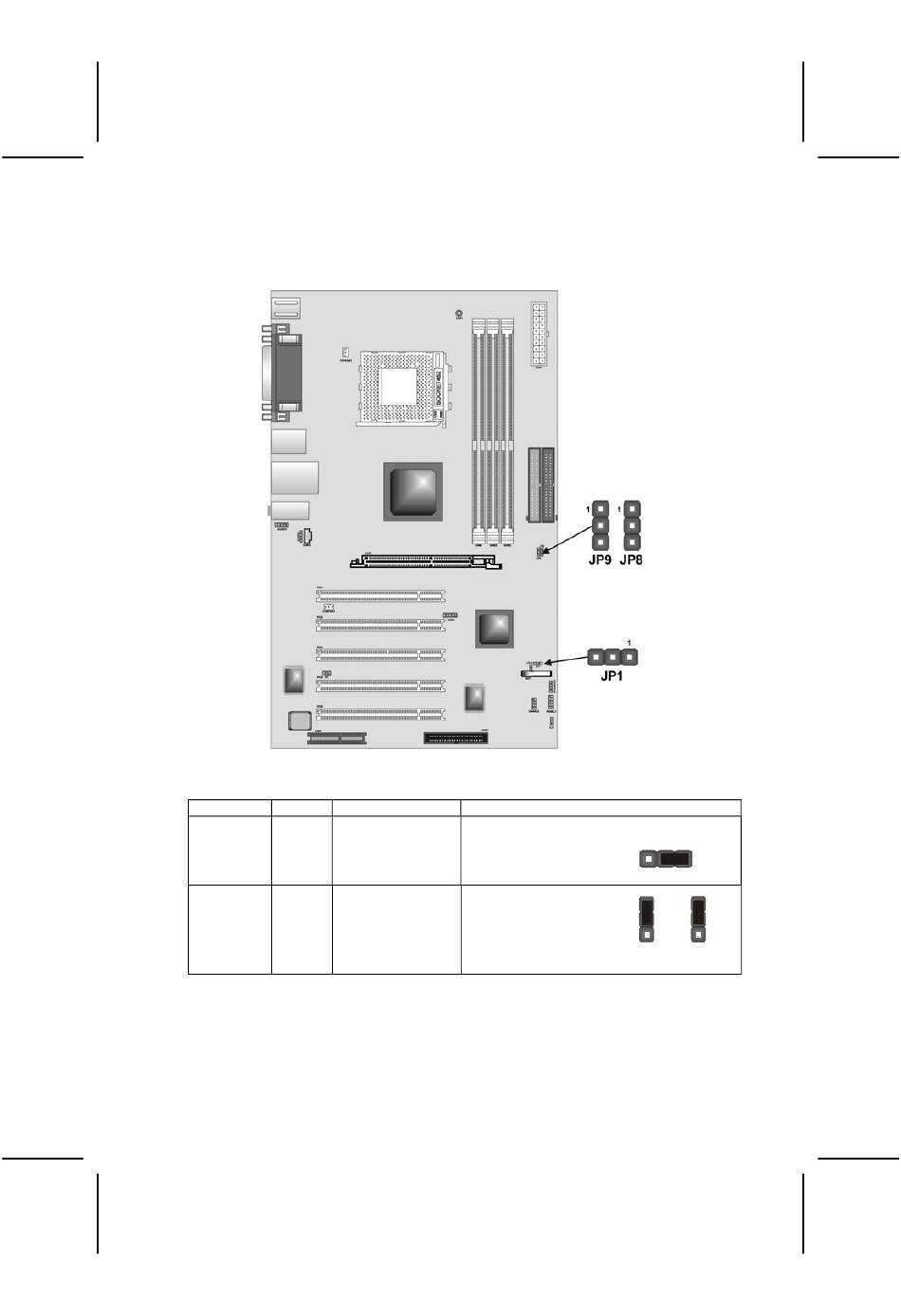

The following illustration shows the location of the mainboard jumpers. Pin 1 is
labeled.

Jumper Settings

Jumper Type
JP1 3-pin Clear CMOS
JP8 & JP9 3-pin CPU Frequency
select jumper
JP1 – Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory. You may need to
clear the CMOS memory if the settings in the Setup Utility are incorrect and
prevent your mainboard from operating. To clear the CMOS memory,
disconnect all the power cables from the mainboard and then move the
jumper cap into the CLEAR setting for a few seconds.
Description
1-2: Normal
2-3: Clear CMOS
See table on following
page for settings.
9
Setting (default)
JP1
1
1 1
JP 8
JP9
