Continued from front side

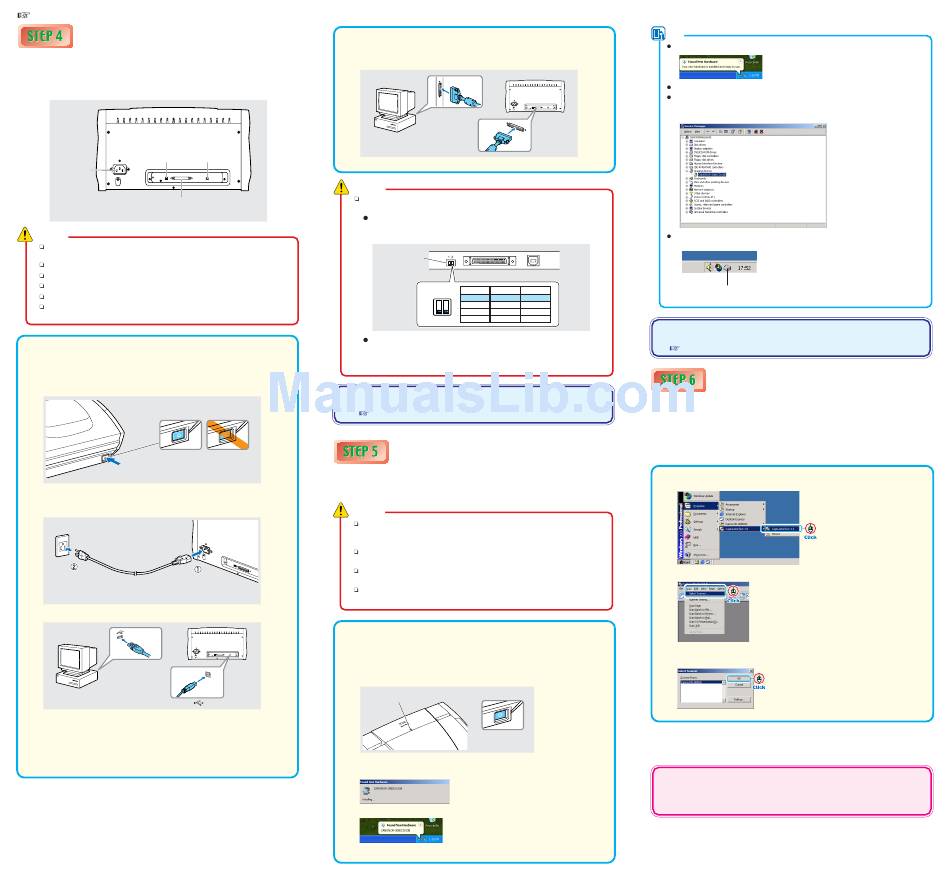

Connecting the Scanner to Your PC

The scanner can be connected to a computer in two ways: by USB connection to a
standard USB port on the computer, or by SCSI connection to a SCSI card installed in
one of the computer's expansion slots. Select a connection method appropriate to
your computing environment.
SCSI ID Dip Switches
Power Connector
SCSI Connector
(Half-pitch 50-pin, pin-type)
Warning
Windows NT does not support the USB interface. Use a SCSI connection with
Windows NT.
Do not use both a USB connection and a SCSI connection at the same time.
Use only the supplied power cord.
Connect the scanner to your computer while the scanner is turned OFF.
Before connecting the scanner with a SCSI cable, turn your computer OFF.
A SCSI cable is not supplied. Acquire a SCSI cable beforehand that matches
the shape of the connectors on your SCSI card and the scanner.
1.
When connecting the scanner with a SCSI cable, turn your computer OFF.
2.
Make sure the scanner's power switch is in the OFF position.
If the power switch is in the ON position, press the switch to turn it to the OFF
position.
Power Switch
OFF Position
3.
Plug the power cord into the power connector on the rear of the scanner (1 1 1 1 1 ).
4.
Plug the power cord into the power outlet (2 2 2 2 2 ).
5.
When connecting the scanner with a USB cable, use the supplied USB cable.
Type A
Insert the plug with the
6.
Follow the steps below when connecting the scanner to your computer with a
SCSI cable.
6-1 Turn OFF your computer.
Make sure your computer is turned OFF before connecting the SCSI
cable.
6-2 Connect the scanner to your computer with the SCSI cable.
SCSI cable is not supplied. Acquire a SCSI cable beforehand that
matches the shape of the connectors on your SCSI card and the
scanner.
USB Connector
Warning
When using the scanner in a daisy chain connection with other SCSI devices,
pay attention to the following points:
The default setting for the SCSI ID is "SCSI ID=2." Set the dip switches so
that the scanner's SCSI ID is different from all other SCSI devices on the
chain.
The scanner has a built-in SCSI terminator that is permanently set to [ON].
When using the scanner in a daisy chain connection, make sure that it is
connected as the terminating device and that the terminators of all other
SCSI devices in the chain have been set to [OFF].
The scanner is now connected to your computer.
Next, you need to turn on the scanner and ensure Windows recognizes
it. (
STEP5)
ON Position
When you turn on the DR-3080CII in a Windows 98SE/Me/2000/XP environment, Windows
uses the Plug and Play feature to recognize the scanner and automatically installs the neces-
sary driver. (Windows NT does not have a scanner recognition feature.)
Warning
When the scanner is connected by a SCSI cable, always turn on the scanner
before the computer. Turning on the computer first may prevent it from recog-
nizing the scanner properly.
Be sure to log on with Administrator privileges when logging on to Windows
NT/2000/XP.
Wait at least 10 seconds before turning the scanner on again after turning it
off.
If the scanner will not be used for an extended period, be sure to unplug it
from the power outlet for safety.
1.
Check the connection between the scanner and the computer.
2.
Press the power switch to turn the scanner ON (when connecting by SCSI).
The power indicator and start key indicator both light green.
3.
Turn ON your computer.
Type B
mark facing down.
4.
Windows recognizes the DR-3080CII as new hardware and performs installation
automatically.
(Windows98/Me/2000)
(WindowsXP)
Dip Switches
Default Position (SCSI ID=2)
SCSI ID
SW1
SW2
1
2
2
OFF
OFF
ON
3
ON
OFF
4
OFF
ON
OFF
5
ON
ON
Turning On the Power (Scanner
Recognition)
Power Switch
Power indicator
On Position
Note
For Windows XP, a balloon help pop-up appears when installation is finished.
The installation finished message does not appear in Windows 98SE/Me/2000.
The scanner is registered on the computer as "CANON DR-3080CII USB" (or
"CANON DR-3080CII SCSI") in the "Imaging Device" directory of the Device
Manager.
When you restart your computer, the scan panel icon remains resident in the task
tray. For details, refer to "About the scan panel" on page 35 of the User's Guide.
Scan Panel
The scanner is now correctly recognized by your computer.
Next, you need to select the scanner with the scanning software.
(
STEP6)

Selecting the Scanner

You must select your scanner before using it with an ISIS- or TWAIN-compatible scanning
application.
The menus and procedures for selecting the scanner are different for each application.
For details, refer to the manual for your scanning application when selecting the scanner.
This section explains the procedure for selecting the scanner with "CapturePerfect 3.0".
For details on how to use CapturePerfect 3.0, refer to the "CapturePerfect 3.0 Operation
Guide" in the Programs menu of Windows.
1.
Launch CapturePerfect 3.0 from the Programs menu in Windows.
2.
Select [Select Scanner] from the Scan menu.
The Scanner Selection dialog box appears.
3.
Select [Canon DR-3080CII] and click [OK].
The setup is now complete
This completes the setup of the DR-3080CII. Details on how to use the DR-3080CII are
described in the User's Guide packaged with the scanner. Before you start using the
scanner, make sure to thoroughly read the User's Guide.
