- Page 1 B u i l t i n F r i d g e I n s t r u c t i o n M a n u a l RIL 8 92 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Using the Appliance Ventilation Requirements Installation Built-in Installation Installing the Furniture Door Reversing the Furniture Door Food Storage Cleaning and Maintenance Transport and Repositioning Troubleshooting Energy Saving Tips Caple Contact Details Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 3 They may only use it unsupervised if they have been shown how to use it in a safe manner. They must be able to recognise and understand the dangers of misuse. Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 4 T E C H N I C A L S A F E T Y : - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you.
- Page 5 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. - Multi-socket adapters and extension leads should not be used to connect the appliance to the mains electricity supply.
-
Page 6: Warnings
- Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Your appliance must be at least 10cm away from gas Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 7 - If your fridge freezer is placed next to a deep freezer, there must be at least 10cm between them to prevent humidity forming on the outer surface. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons.
- Page 8 - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 9 - Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating. Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 11: Electrical Connection
The blue wire must be connected to the terminal marked N. The brown wire must be connected to the terminal marked L. You must make sure the lead is firmly secured under the cord clamp. Instruction manual RiL892 Please keep this instruction manual for future reference... -

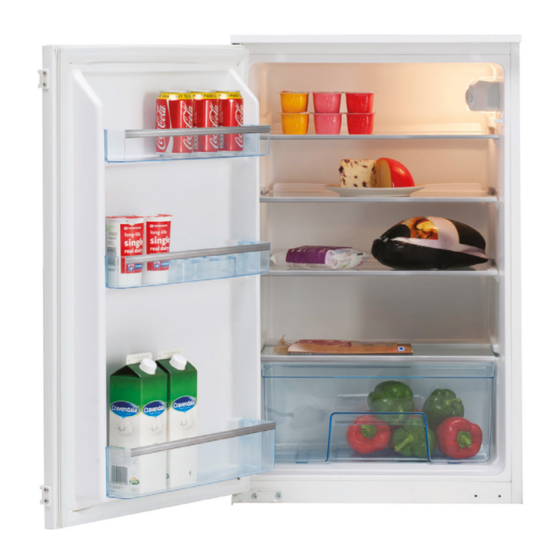

Page 12: Product Overview
6. Feet (adjustable feet at the front) 7. Door Racks 2. Adjustable Shelves 3. Drainage Hole 8. 1 x Egg Tray, Drainage Hole Unblocker 4. Non-adjustable Shelves 9. Installation Accessories 5. Crisper 12 Instruction manual RiL892 Please keep this instruction manual for future reference... -
Page 13: Using The Appliance
The thermostat controls the operation of the compressor, and you may hear a slight click as it cycles in and out, this is normal. Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 14 The standard operating temperature should be between 0ºC and 4ºC. The temperature of freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting. 14 Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 15: Ventilation Requirements
This should also be at least 540mm x 50mm. The more air available to circulate the product, the more efficiently it will operate. Instruction manual RiL892 Please keep this instruction manual for future reference... -
Page 16: Installation
2 x Door Guide 12 x Torx Screws Cover 2 x Foot Blanking Covers 2 x Door Guide Cover 2 x Door Guide Holder (pre-assembled on the door) 16 Instruction manual RiL892 Please keep this instruction manual for future reference... -
Page 17: Built-In Installation
The wooden cabinet the appliance is to be housed in must not be enclosed. The back wooden panel of the cabinet must be removed completely. This is to allow sufficient air circulation to cool down the condenser unit for energy efficiency. Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 18 6 C - 43 6 C - 43 range Caple Fresh 6 C - 43 (Maxi-fresh preserver) Caple Fresh (Maxi-fresh preserver) 18 Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 19 (approximately 42mm). Snap off the plastic off the plastic stem after installation. stem after installation. opriate height, hold the bottom of the balcony Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 20: Installing The Furniture Door
> Clip the door guide cover (part B) on the door guide (part A) hiding the screws. > Clip the door guide cover (part B) on the door guide (part A) hiding the screws. 20 Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 21 (part A). › Check that the cabinet door closes correctly. Check that the cabinet door closes correctly. Check that the cabinet door closes correctly. Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 22 These can be clipped on inge covers supplied for the lower and upper hinges. These can be clipped on if required. 22 Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 23: Reversing The Furniture Door
› Unscrew the 2 screws from the upper hinge and remove the fridge door by carefully lifting it up and away from the appliance. Do not fix the hinge to the opposite side. Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 24 Place the door back on to the lower hinge. er hinge 180° (so the pin is pointing upwards) and fix on to the opposite side at ppliance. Place the door back on to the lower hinge. 24 Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 25 finally tightening the top hinge pin. › Remove the 2 door guide holders from side of the doors and fix them on to the opposite side. Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 26: Food Storage
Potatoes, onions and garlic should not be stored in the refrigerator. The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. 26 Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 27 1 month On the designated egg shelf Cooked food All shelves * These are guidelines only, always refer to the expiry date, or best before date recommended by the producer. Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 28: Cleaning And Maintenance
R E P L A C I N G L E D L I G H T I N G To replace any of the LEDs, please contact Caple Service to arrange. This should only be performed by a qualified electrician. -
Page 29: Transport And Repositioning
- Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands/tape when re-positioning or transporting. Always carry your appliance in the upright position. Instruction manual RiL892 Please keep this instruction manual for future reference... -
Page 30: Troubleshooting
2 hours before a large amount of food is placed in the fridge. Otherwise the temperature of the fridge could fall bellow 0°C as the compressor will run continuously. 30 Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 31 BUBBLING NOISES: › This noise is caused by the flow of the refrigerant in the tubes of the system. Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 32 › Are door joints broken or torn? › Is your fridge on a level surface? IF THE INNER / OUTER SURFACES ARE WET › Caused by condensation. Dry the inside of the appliance. 32 Instruction manual RiL892 Please keep this instruction manual for future reference...
- Page 33 › To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open). If the problem persists or more help is required, please contact our Caple service team on or via email 0117 938 7420 service@caple.co.uk.
-
Page 34: Energy Saving Tips
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed. 7. The door gasket must be clean and pliable. Replace gaskets if worn. 34 Instruction manual RiL892 Please keep this instruction manual for future reference... - Page 35 N OT E S Instruction manual RiL892 Please keep this instruction manual for future reference...
-
Page 36: Caple Contact Details
