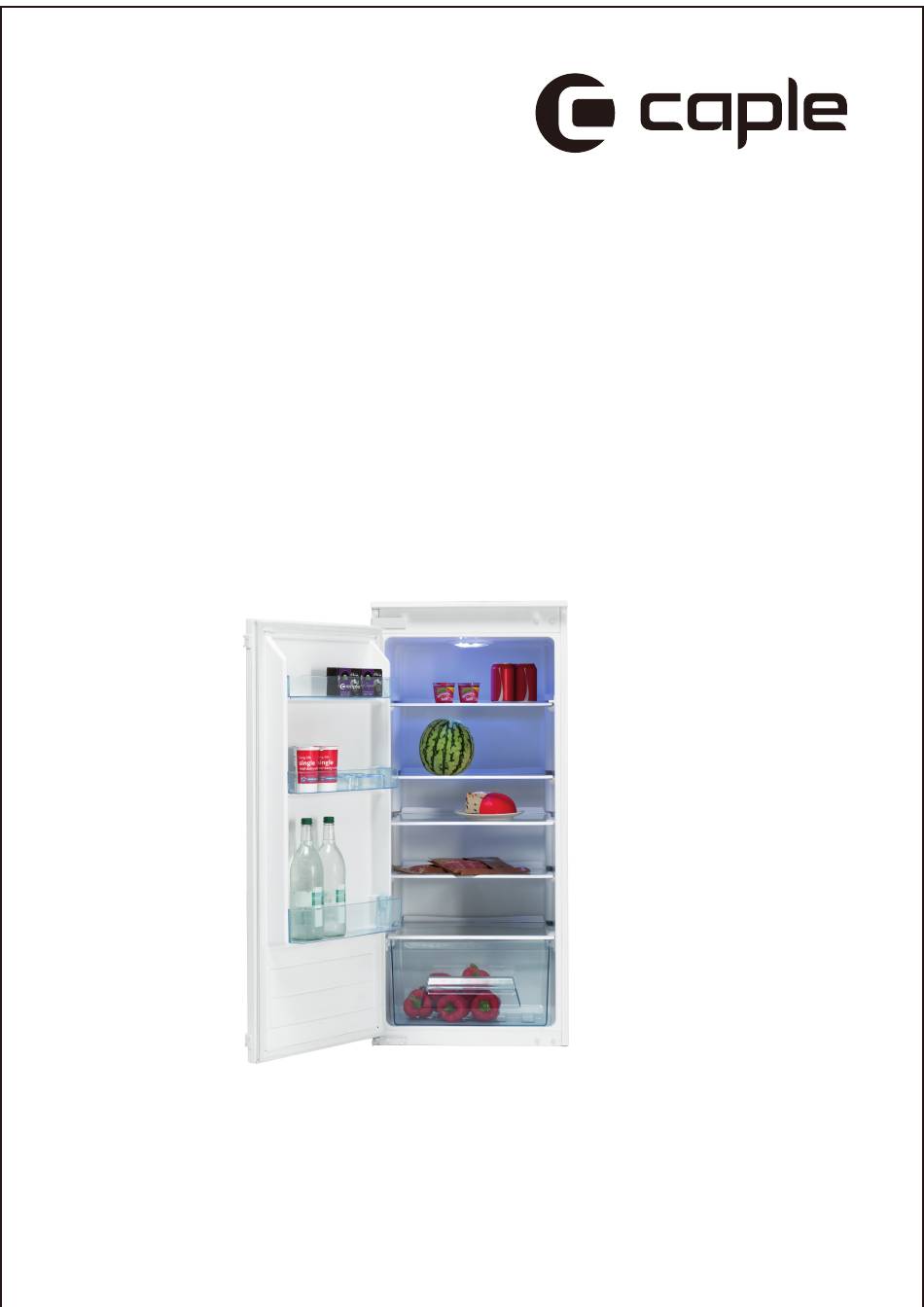

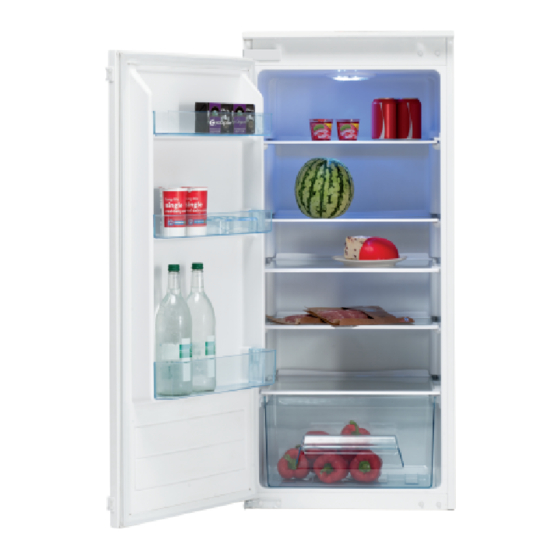

- Page 1 Instruction manual for integrated larder fridge Model code: RIL124 Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Contents Cautions--------------------------------------------------------------------------------------------1~2 Diagram---------------------------------------------------------------------------------------------3 Preparation-----------------------------------------------------------------------------------------3 Operation-------------------------------------------------------------------------------------------4 Instruction------------------------------------------------------------------------------------------5~7 Defrosting, cleaning and de-commissioning----------------------------------------------8~9 Trouble shooting---------------------------------------------------------------------------------10... - Page 3 Compression-type appliances which use flammable refrigerants shall be marked with the symbol “Caution: risk of fire”. Caution：risk of fire The height of the triangle in the symbol “Caution: risk of fire” shall be at least 15 mm. – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
Page 4: Cautions
Cautions Disposal of the old appliance Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to avoid the risk of child entrapment. It must be noted that the refrigeration system contains insulating gases and refrigerants, which require specialised waste disposal. - Page 5 Cautions to be carried out in strict compliance *The refrigerating circuit is leak-proof...
-
Page 6: Diagram
Refrigerator diagram and preparation 1.Shelves 2.Vegetable and fruit tray 3.Temperature Controller 4.Egg tray 5.Bottle racks This diagram may vary slightly with the layout of the refrigerator you have just purchased due to technical improvements. Preparation Unpacking Remove all packing materials. Check attachments and materials Checking should be conducted with reference to the Packing List. -
Page 7: Operation
Operation Starting the refrigerator Temp. control After connecting to the power supply, turn the temperature controller clockwise from position 0 to any position between 1 and 7 to start the refrigerator. The refrigerator compressor will stop when the temperature controller is at position 0. -
Page 8: Instruction
Instructions Cold storage is for short-term food storage or for daily consumption. Although the temperature in most parts of the cold storage compartment can be regulated between 0 food storage is not recommended. and 10 degrees Centigrade, extended periods of Cold storage should only be used for short-term storage. - Page 9 Instructions * Do not store excess quantities or weights of food; food should be stored with spaces in between for better storage results. Never overload shelves, as they may collapse under excessive loads. * Food to be stored should be sorted according to consumer requirements. Food consumed daily should be placed in the most convenient area, this will minimize opening periods for the door.
- Page 10 Instructions Instructions for food storage * Storage period will be extended if vegetables are placed with their roots towards the cold source. * Leaves of carrots or turnips should be removed before storage. * Put a wad of tissue on the bottle holder before placing bottles on it so that later cleaning is easier * Onions, garlic, ginger, water chestnuts and other root vegetables should not be stored in the refrigerator,as these foods are suitable for long-term storage at...
-
Page 11: Defrosting, Cleaning And De-Commissioning
Defrosting, cleaning and de-commissioning Defrosting the cold storage compartment The cold storage compartment is designed for automatic defrosting. Frost formed on the back wall will melt and flow via the drainpipe to the evaporating container over the compressor on the back of the refrigerator, where the heat generated by the compressor will evaporate the water. - Page 12 Defrosting, cleaning and de-commissioning Power failure Even in summer, food can be stored in the refrigerator for a few hours after a power failure. * Don’t put additional food into the refrigerator during a power failure. * Avoid opening the door during power failures *If prior notice of a power failure is given, make some ice and put it in a container in the top of the cold storage compartment.
-
Page 13: Trouble Shooting
Questions and answers The below events are normal working conditions: * The temperature of the refrigerator and the compressor will rise and the compressor will run for comparatively longer periods when the refrigerator is first started. * Wipe water drops on the external surface of the refrigerator with a soft cloth. * When the refrigerator is opened frequently or stays open too long in humid seasons, the cavity will become damp. - Page 14 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
- Page 15 Installation guide Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 16 Positioning and installing the appliance Once the appliance has been unpacked, check the main voltage is the same as that indicated on the rating plate. If the door opening direction is as required, contine with the installation. Otherwise, reverse the position of the hinges.
- Page 17 Sealing gasket Fill the gap on the non-hinged side with the sealing gasket, as shown in the image to the left.
- Page 18 Once the slider has been fitted to to the furniture door please add the decorative cover to cover the screw fixings. This simply clips into place. Tip: It can help if the door slider blocks are fitted after the sliders have been fully fixed to the furniture door and the covers cliped into place.
- Page 19 GRILL/SENSE600. This can be purchased from your retailer or www.caple.co.uk. To ensure the correct operation of the appliance it is important the top of the housing is not blocked off. The top of the cabinet needs to be vented into the room, the recommended size of the vent opening is 500mm x 40mm.
- Page 20 (mm) (mm) (mm) (mm) RI556/RI558 1776 550-560 1778-1785 RI735/RI737 RIR179/RIL179 1776 550-560 1778-1785 RIF178 1574 1574 550-560 1576-1580 1440 1440 550-560 1442-1449 1440 1440 550-560 1442-1449 RIF123 1221 550-560 1223-1230 RIL124 1221 550-560 1223-1230 1020 550-560 1022-1028 RIL891/RIF89 550-560 873-880...
- Page 21 12. Check that doors are properly aligned with the appliance body. 13. Replace the hinge caps. 14. Switch on the appliance as described in the relevant section of its operating instruc- tions. * This action applies to appliances with both refrigeration and freezer chambers. www.caple.co.uk...
