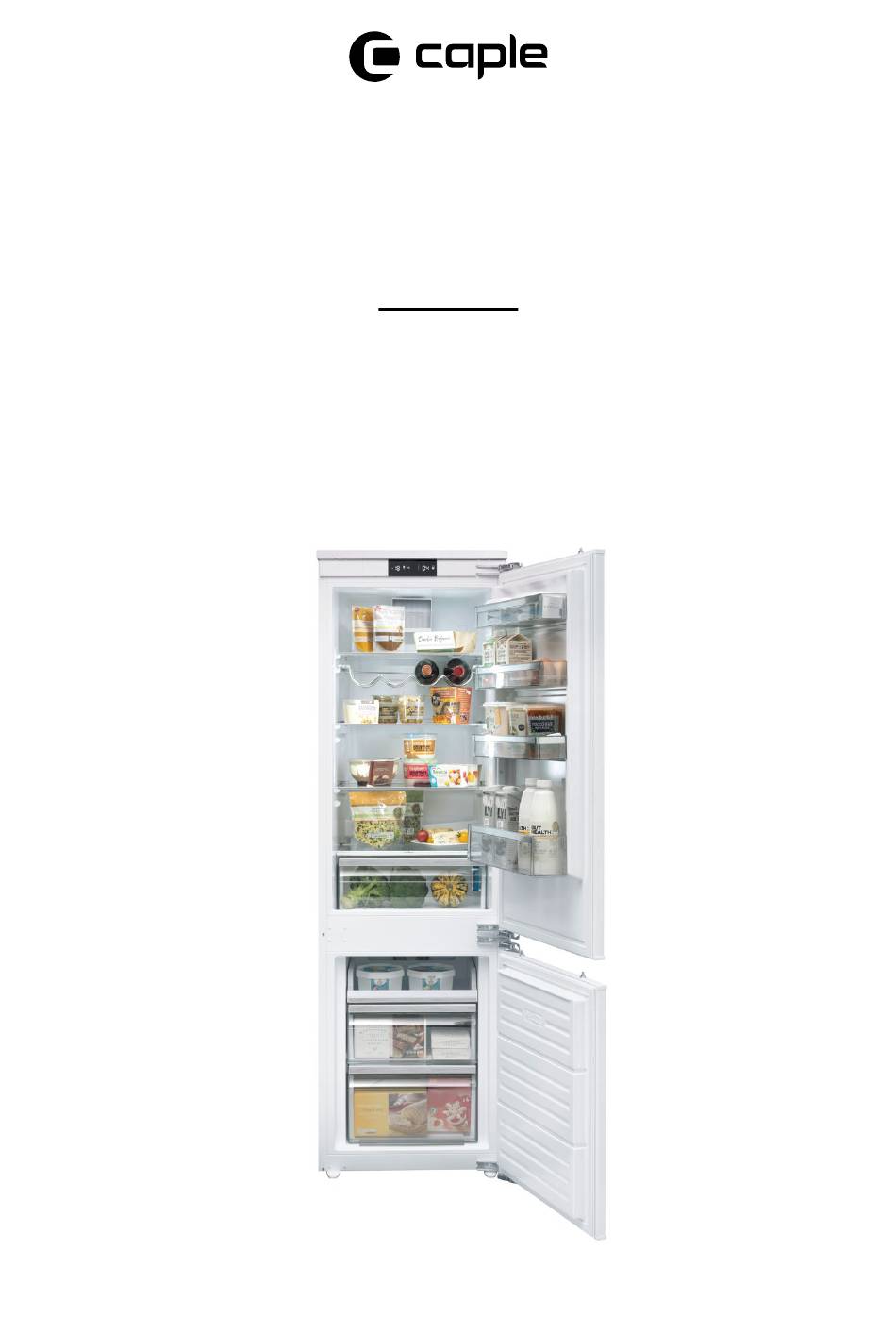

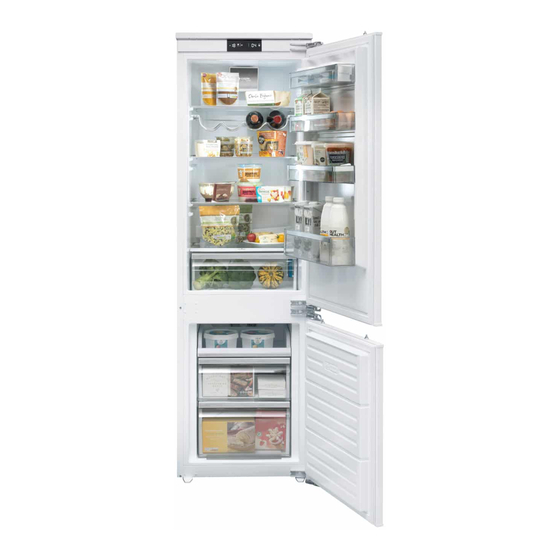

- Page 1 P r e m i u m B u i l t - I n 7 0 / 3 0 F r i d g e F r e e z e r I n s t r u c t i o n M a n u a l RI7 3 20 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Caple Fresh Humidity Controlled Drawer The Turbo Fan Easy Adjustable Door Shelf Freezer Storage Food Storage Cleaning And Maintenance Transport And Repositioning Troubleshooting Energy Saving Tips Caple Contact Details Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 3 They may only use it unsupervised if they have been shown how to use it in a safe manner. They must be able to recognise and understand the dangers of misuse. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 4 T E C H N I C A L S A F E T Y : - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you.
- Page 5 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. - Multi-socket adapters and extension leads should not be used to connect the appliance to the mains electricity supply.
-
Page 6: Warnings
- During installation the appliance must be completely disconnected from the mains electricity supply. - Do not operate the appliance before it is fully installed. Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 7 Caple Service immediately. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. If the supply cord is damaged, it must be replaced by a Caple Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 8 - Do not place your appliance on a carpeted surface as this will prevent adequate ventilation. - When the appliance is not in use, we recommend you turn it off, and isolate it from the electrical supply. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 9 - If using the appliance to quickly cool drinks, do not leave bottles inside the freezer compartment for more than 1 hour, otherwise they could burst. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 10 - Never use the door handles for lifting. - The appliance is heavy and could cause injury, it must be transported by two people. 10 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 11 Warning; Risk of fire / flammable materials FIRE: Injury or property damage risk CAUTION: Operating the system correctly IMPORTANT: Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Instruction manual Ri7320 Please keep this instruction manual for future reference...
-
Page 12: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 13: Electrical Connection
3. Replace fuse cover. fuse in this type of plug, follow the steps below: the fuse cover and fuse. ement 13A fuse, ASTA approved to BS nto the fuse cover. use cover. Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 14: Ventilation Requirements
N OT E : Installation instructions are supplied with the appliance in a separate document. Only the solid metal fixing bracket is included (part 1a) for installation. 14 Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 15: Product Overview
13) Egg tray This presentation is only for information This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 16: Using The Appliance
12 hours. The coolant within the product needs time to settle after it has been transported and put into position, failure to do this will affect the cooling performance of your appliance. 16 Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 17 Therefore, your Frost free fridge allows ease of use, in addition to its huge capacity and stylish appearance. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 18 7. Super Cool mode Indicator. 8. Holiday mode Indicator. 9. Eco mode Indicator. 10. Alarm Indicator. Lights when there is an error with the appliance (see Troubleshooting Section). 18 Instruction manual Ri7320 Please keep this instruction manual for future reference...
-
Page 19: Operating Your Fridge Freezer
› Super Cool mode can be cancelled by the same operation of selecting. Economy and Holiday mode can not be selected. Super Cool mode can be cancelled by the same operation of selecting. Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 20 24 hours before you put fresh food into the freezer. Super Freeze mode will automatically cancel after 54 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature. 20 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 21 Cool and Super Freeze › To cancel, press the “mode” button. y mode can be selected after cancelling the Economy mode. Then the d mode is activated. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 22 › Economy mode can be selected after cancelling the Holiday mode. Then the selected mode is activated. › To cancel, you will just need to press the “mode” button. 22 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 23 › The countdown starts from the adjusted time minute by minute. › Remaining time will blink on the screen. › To cancel this mode press the freezer set button for 3 seconds. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 24 30 seconds the control panel will turn Off again. › To cancel Screen Saver mode, press the “Mode” button for 3 seconds. › To reactivate this mode, press on the “Mode” button for 3 seconds. 24 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 25 › The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 26 After this mode is deactivated, an error code may light on the display because the product may not be cool enough. The error code will turn off when the product reaches normal temperature. 26 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 27 A M B I E N T T E M P E R AT U R E ° C Between 16 and 43 (°C) Between 16 and 38 (°C) Between 16 and 32 (°C) Between 10 and 32 (°C) Instruction manual Ri7320 Please keep this instruction manual for future reference...
-
Page 28: Accessories
By this method, it maximises the fresh foods shelf life, especially green vegetables. Caple Fresh also blocks the bad smells produced in the refrigerator. › The Caple Fresh filter must be cleaned once a year. It can be cleaned by leaving in sunlight for one day. -
Page 29: Humidity Controlled Drawer
T H E T U R B O F A N › Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired. Turbo fan Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 30: Easy Adjustable Door Shelf
Always keep hold of the handle of the box Always keep hold of the handle of the box while removing it. while removing it. while removing it. while removing it. 30 Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 31: Food Storage
Potatoes, onions and garlic should not be stored in the refrigerator. The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 32 On the designated egg tray Cooked food 2 days All shelves These are guidelines only, always refer to the expiry date, or best before date recommended by the producer. 32 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 33 If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 34 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. 34 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 35 N OT E : Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 36 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Add 10 % of sugar to the container Plum, cherry, raspberry Wash and hull the stems 8 - 12 36 Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 37 Original packaging may be Cheese - used for short-term storage. excluding white In slices 6 - 8 Keep wrapped in foil for longer cheese periods. Butter, margarine In its packaging Instruction manual Ri7320 Please keep this instruction manual for future reference...
-
Page 38: Cleaning And Maintenance
N OT E : Warning; Risk of fire / flammable materials The power supply must be disconnected during cleaning. Warning; Risk of fire / flammable materials 38 Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 39 › Remove the water tray from its position by removing the screws (if it has screws). Clean it with soapy water at specific time intervals. This will prevent odours from forming. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 40 This product contains light sources of energy efficiency classes E and F. The LED light must be replaced by an authorised engineer or similar only. For more information, please contact Caple service on 0117 938 7420 or service@caple.co.uk Unplug the unit from the power supply before starting the process.
-
Page 41: Transport And Repositioning
› Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands/tape when re-positioning or transporting. › Always carry your appliance in the upright position. Instruction manual Ri7320 Please keep this instruction manual for future reference... -
Page 42: Troubleshooting
W H Y W H AT TO D O T Y P E E01-E07 Sensor warning Call Caple service for assistance as soon as possible. This is not a failure. This prevents damage to the compressor. Power supply to the Low Voltage The voltage needs to be increased back to required levels. - Page 43 This noise is caused by the flow of the refrigerant in the tubes of the system. WATER FLOW NOISE: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting. Instruction manual Ri7320 Please keep this instruction manual for future reference...
- Page 44 › If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor. If the problem persists or more help is required, please contact our Caple service team on or via email 0117 938 7420 service@caple.co.uk.
- Page 45 10 years, based on the type of component, from the placing on the market of the last unit of the model. For more info and to order spares, please contact Caple service or visit our website www.caple.co.uk. Instruction manual Ri7320...
-
Page 46: Energy Saving Tips
6. Keep the covers of the different temperature compartments ( such as the crisper and chiller) closed. 7. The door gasket must be clean and pliable. Replace gaskets if worn. 46 Instruction manual Ri7320 Please keep this instruction manual for future reference... - Page 47 N OT E S Instruction manual Ri7320 Please keep this instruction manual for future reference...
-
Page 48: Caple Contact Details
