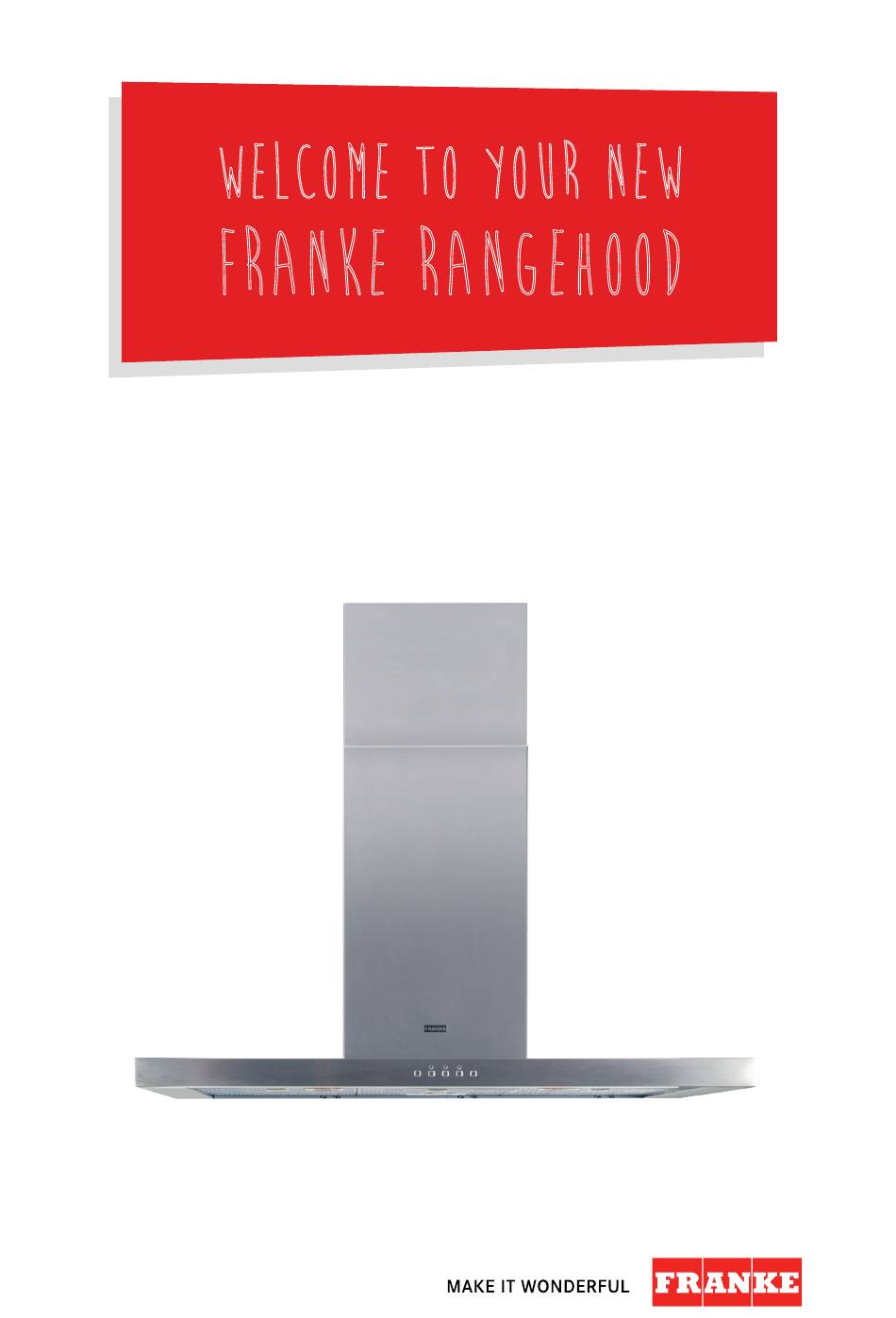

- Page 1 Welcome to your new Franke rangehood You’re about to begin a very happy and delicious relationship. Let’s get started. This is no ordinary rangehood. FDFPRO9354XSAU - 90CM T-SHAPE CANOPY RANGEHOOD...
- Page 2 Australia: 03 9700 9100 | info@prks.com.au New Zealand: 09 964 0400 | info@prks.co.nz WARRANTY Your Franke product is protected by a 2-year warranty. Should you ever need to make a warranty enquiry, simply contact our service department. Australia: 03 9700 9100 | service@prks.com.au New Zealand: 09 964 0400 | service@prks.co.nz...
-
Page 3: Table Of Contents
Operating your rangehood Maintenance information Cleaning metal shelf - supporting grease filters Cooking information Changing the filters Chapter 3: Getting the most out of your Franke Rangehood Cleaning and care Filter alarms Interior lighting Resetting the filter alarms Chapter 4: Last, but not least... -
Page 4: Chapter 1: Ready, Set Up, Go
CHAPTER 1 READY, SET UP, GO Your Franke rangehood is designed to be set up quickly and easily - so you can start creating delicious masterpieces even sooner. Chapter 1 Ready, set up, go... -
Page 5: Rangehood Functions
RANGEHOOD FUNCTIONS BUTTON FUNCTION Turns the motor off. When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 5 seconds. These indications are only visible when the motor is turned off. When the procedure terminates, the indication shown previously turns off: Led T2+Led T4 flash, indicating the need to wash the metal grease All the LEDs... -
Page 6: First Time Use
FIRST TIME USE When the rangehood is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulation panels within the rangehood. Run the rangehood on the highest setting for 15 minutes before using the rangehood with the cooktop on. - Page 7 INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
- Page 8 CHARACTERISTICS DIMENSIONS COMPONENTS Ref. Qty. Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Qty. Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support Wall Plugs...
- Page 9 Wall drilling and bracket fixing Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. •...
- Page 10 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
-
Page 11: Warnings And Safety
ENVIRONMENTAL INFORMATION This Franke appliance is particularly energy efficient, however to make the most out of it, and to save even more energy make sure you adhere to the following steps:. 1. It is more energy efficient to bake several items at the same time to avoid prolonged operation. -
Page 12: Chapter 2: Life With Your Franke Rangehood
CHAPTER 2 life with your franke rangehood We designed this rangehood with one thing in mind. How do we create a wonderfully simple user experience for you, our customer? Chapter 2 Life with your Franke rangehood... -
Page 13: Operating Your Rangehood
• Wash the filters, taking care not to bend them. Allow them to dry before refitting. • When refitting the filters, make sure that the handle is visible on the outside. Chapter 2 Life with your Franke rangehood... -
Page 14: Chapter 3: Getting The Most Out Of Your Franke Rangehood
CHAPTER 3 getting the most out of your franke rangehood Getting the most out of your Franke rangehood. Your Franke rangehood turns work into play, and inspires creativity every single day. Chapter 3 Getting the most out of your Franke rangehood... -
Page 15: Cleaning And Care
CLEANING AND CARE We want your Franke Appliance to be looking this good for a long time to come. To ensure that the various surfaces are not damaged through cleaning, please observe the following: Stainless steel: Hot soapy water with a soft cloth Control panel: Clean with a dish cloth and the dry with a soft cloth Filters: A mix of hot soapy water and lemon juice. - Page 16 CHAPTER 4 last but not least This section contains the warnings, precautions and legal notices to make sure everything runs smoothly. Chapter 4 Last but not least...
-
Page 17: Maintenance
ELECTRIC SHOCK HAZARD Never carry out an repairs yourself, always get an authorized technician to do any repairs or maintenance on your rangehood. If any electrical components become damaged or there is exposed wiring, there is a risk of electrical shock. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 18: Glossary
GLOSSARY Abrasive - a course and harsh substance capable of polishing or cleaning a surface by rubbing or grinding. Buzzer - a device that makes a loud noise and is used to signal something. Cabinetry - a collection of cupboards with drawers or shelves. Circuit breaker - and automatic device for stopping the flow of current in an electrical circuit for safety reasons. - Page 19 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au PR Kitchen & Washroom Systems NZ Ltd P.O Box 53171, Auckland Airport Auckland 2150 New Zealand Phone 09 964 0400 09 964 0401 info@prks.co.nz...
