Summary of Contents for Franke FGL 6015 XS

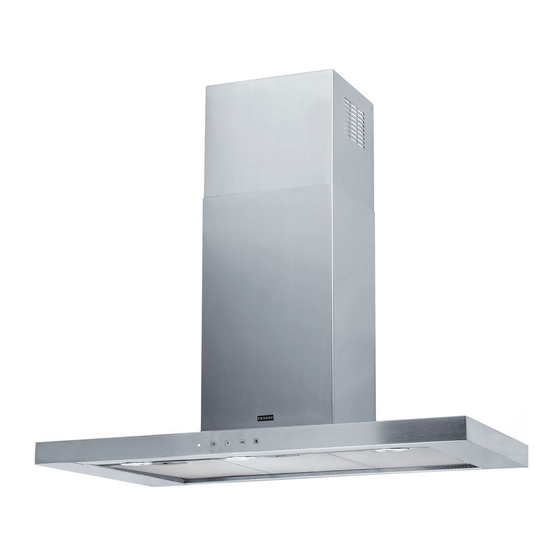

- Page 1 Instructions for use and installation Cooker Hood Istruzioni per l’uso e l’installazione Cappa Mode d’emploi et installation Hotte de Cuisine Bedienungsanleitung und Einrichtung Dunstabzugshaube Kullanım ve montaj talimatları Davlumbaz FGL 6015 XS FGL 7015 XS FGL 9015 XS...
- Page 2 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS................................4 INSTALLATION ..................................5 USE......................................8 MAINTENANCE..................................9 INDICE CONSIGLI E SUGGERIMENTI ............................10 CARATTERISTICHE ................................11 INSTALLAZIONE..................................12 USO ......................................15 MANUTENZIONE .................................16 SOMMAIRE CONSEILS ET SUGGESTIONS ............................17 CARACTERISTIQUES .................................18 INSTALLATION ..................................19 UTILISATION..................................22 ENTRETIEN..................................23 INHALTSVERZEICHNIS EMPFEHLUNGEN UND HINWEISE............................24 CHARAKTERISTIKEN................................25 MONTAGE....................................26 BEDIENUNG..................................29 WARTUNG....................................30 IÇERIKLER TAVSIYELER VE ÖNERILER ..............................31...
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. - Page 4 CHARACTERISTICS Dimensions 598 - 698 - 798 - 898 Min. Min. 650mm 500mm Components 14.1 Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, 12a 7.2.1 Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection...
-
Page 5: Installation
INSTALLATION Wall drilling and bracket fixing 7.2.1 Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. •... - Page 6 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the...
-
Page 7: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. -
Page 8: Control Panel
Control panel BUTTON FUNCTIONS T1 Speed Turns the Motor on at Speed one. Turns the Motor off. T2 Speed Turns the Motor on at Speed two. T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Light Turns the Lighting System on and off. -
Page 9: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time. - Page 10 Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it 436004820_ver1...
