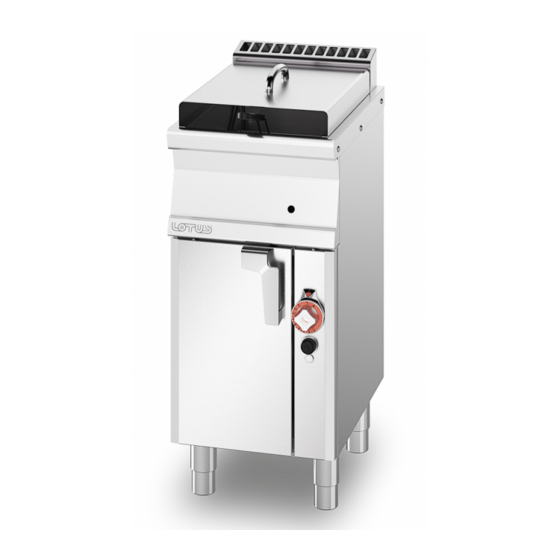

- Page 1 Installation and operating instructions GAS FRYERS FOR PROFESSIONAL USE F13-554G Model LIBR.ISTR.F110G Code 5630507A0 Review 1 Edition date 26/05/2022 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020 +39 0438 778277 Translation of the original instructions...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................Example installation of the appliance................... GENERAL INFORMATION......................Declaration of compliance......................Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation ......................... Electrical/gas connections ......................BURNERS TECHNICAL DATA TABLE (ITGB)................Burners technical data table ...................... -
Page 3: Introduction
INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 F13-554G A Data Plate C Gas connection Translation of the original instructions... -
Page 4: Components
INTRODUCTION Components FIG. A 1 Gas inlet 2 Ramp 3 Injector 4 Burner 5 Safety thermostat 6 Air adjustment 7 Knob 8 Extends drainage 9 Pilot 10 Ignition spark plug 11 Oil drain 12 Piezoelectric 13 Valve Translation of the original instructions... - Page 5 INTRODUCTION FIG. C A Piezoelectric FIG. D 1 Bracket 2 Pilot light nozzle 3 Extends drainage 4 Ignition spark plug FIG. E Burner air adjustment Translation of the original instructions...
-
Page 6: Example Installation Of The Appliance
INTRODUCTION Example installation of the appliance Translation of the original instructions... -
Page 7: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 8: Technical Data Table
GENERAL INFORMATION Technical data table Technical data table F13-554G RATED GAS FITTING TANK CAPACITY MODEL DIMENSIONS TOTAL GAS ISO 7-1 (lt) FLOW (kW) F13-554G 40x55x90h R ½GM 10,5 Translation of the original instructions... -
Page 9: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 10 INSTALLATION Installation operations, any conversion to other types of gas and start-up must only be performed by qualified personnel, in accordance with current regulations. Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
- Page 11 INSTALLATION For burners equipped with air adjustment, set the adjustable bushing and lock it with a screw. The "Burner technical data" table shows approximate values for the "h" parameter (primary air). The primary air flow volume must be adjusted to avoid a flame cut-off when the burner is cold and a flame blowback when the burner is hot.
- Page 12 INSTALLATION Forced evacuation (fig.4) The gas supply to the appliance must be directly servo-controlled by the forced evacuation system and must stop if the flow rate drops below the values indicated in point 4.3 of the UNI-CIG 8723 standard. Resetting the gas supply to the appliance must be possible only by hand.
-
Page 13: Burners Technical Data Table (Itgb)
BURNERS TECHNICAL DATA TABLE (ITGB) 4 BURNERS TECHNICAL DATA TABLE (ITGB) Burners technical data table Technical data table - Burner F S110G 12.68 kWh/KG 12.87 kWh/KG 9.45 kWh/m3st. BUTANE PROPANE METHANE H 30 mbar 37 mbar 20 mbar F13-554G ... -
Page 14: Instructions For Use
INSTRUCTIONS FOR USE 6 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. -
Page 15: Switching The Appliance Off
INSTRUCTIONS FOR USE · Turn the graduated valve knob to the star position . In this position only the pilot flame remains lit Switching the appliance off · Press and turn the knob to position "0". This control blocks the gas supply to both the main burner and the pilot burner ... -
Page 16: Maintenance
MAINTENANCE 7 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... -
Page 17: Spare Parts
MAINTENANCE · Replace the nozzle with the appropriate version and make sure that, after ignition, the flame correctly touches the tip of the thermocouple Warning After conversion to another type of gas, update the technical data plate to indicate the type of ... -
Page 18: Cleaning
CLEANING 8 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply.
