Summary of Contents for Lotus LIBR.ISTR.TP70G MOD.40
Page 1

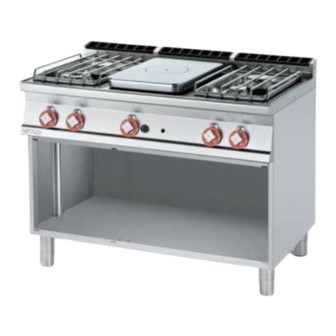

All manuals and user guides at all-guides.com Installation and operating instructions PROFESSIONAL GAS FULL-PLATE COOKER TP-74G TP2-78GP TP4-712GP TPF2-78GP TPF2-78GPE TPF4-712GPV TPF4-712GPEV TPF4-712GP TPF4-712GPE TPT-74G TP2T-78GP TP4T-712GP TPFV2-78GPE TPFV4-712GPEV Model LIBR.ISTR.TP70G MOD.40 Code 563007202 Review 1 Edition date 27/11/2018 Language English LOTUS S.p.A. Via Calmaor, 46...
All manuals and user guides at all-guides.com Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................Example installation of the appliance................... GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table........................INSTALLATION........................... Delivery checks ..........................
All manuals and user guides at all-guides.com INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 TP..-7..G A Data Plate B Electrical connection C Gas connection FIG. 2 TP...T A Data Plate C Gas connection Translation of the original instructions...
All manuals and user guides at all-guides.com INTRODUCTION Components FIG. H Translation of the original instructions...
Page 5
All manuals and user guides at all-guides.com INTRODUCTION FIG. B 1 Flame open by-pass 2 Oven by-pass FIG.C (FLAMES) 1 Flame injector 2 Air adjustment 3 Pilot Translation of the original instructions...
Page 6
All manuals and user guides at all-guides.com INTRODUCTION FIG. D (Fire pilot) 1 Pilot bracket screw 2 Pilot bracket 3 Pilot air bushing 4 Pilot injector 5 Injector screw 6 Spring 7 Extends drainage FIG. E 1 Oven injector 2 Oven air regulation ...
Page 7
All manuals and user guides at all-guides.com INTRODUCTION FIG. F (Oven pilot) 1 Pilot light nozzle 2 Ignition spark plug 3 Extends drainage 4 Pilot bracket Translation of the original instructions...
Page 8
All manuals and user guides at all-guides.com INTRODUCTION FIG. G Burner air adjustment FIG. I 1 Injector 2 Pilot Translation of the original instructions...
Page 9
All manuals and user guides at all-guides.com INTRODUCTION WIRING DIAGRAM OVEN GN 2/1 1 Switch 2 Power supply terminal board 3 Heating element 4 White indicator light 5 Green indicator light 6 Thermostat 7 Safety thermostat Translation of the original instructions...
Page 10
All manuals and user guides at all-guides.com INTRODUCTION WIRING DIAGRAM OVEN GN 3/1 1 Switch 2 Power supply terminal board 3 Heating element 4 White indicator light 5 Green indicator light 6 Thermostat 7 Safety thermostat Translation of the original instructions...
Page 11
All manuals and user guides at all-guides.com INTRODUCTION VENTILATED ELECTRICAL OVEN 1 Switch 2 Condenser 3 Power supply terminal board 4 Switching terminal board 5 Motor 6 Heating element 7 White indicator light 8 Green indicator light 9 Safety thermostat 10 Thermostat ...
All manuals and user guides at all-guides.com GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system.
All manuals and user guides at all-guides.com GENERAL INFORMATION User information, RAEE Directive on waste electrical and electronic equipment With regard to the regulatory framework of reference of the European Community, we remind the user of the following: · Used AAE (Electrical and Electronic Equipment) products must be collected separately ·...
All manuals and user guides at all-guides.com GENERAL INFORMATION Technical data table Electrical technical data table TPF S70GE MAXIMUM ELECTRICA POWER SUPPLY DIMENSION MAXIMUM Emissivity MODEL POWER SUPPLY CABLE ABSORPTION (A) dB (A) POWER silicon type (kW) TPF2-78GPE 80x70x29h 400V~3N 50/60 Hz 10,4 5 x 1,5 mm²...
Page 16
All manuals and user guides at all-guides.com GENERAL INFORMATION DESIGN ASSEMBLY/TRANSFORMATION ELECTRICAL LINKING TERMINAL BLOCK PERNIONS (see technical data table) · POWER SUPPLY CONNECTION · HEATING ELEMENT CONNECTION Translation of the original instructions...
All manuals and user guides at all-guides.com INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·...
Page 18
All manuals and user guides at all-guides.com INSTALLATION Warning Installation operations, any conversion to other types of gas and start-up must only be performed by qualified personnel, in accordance with current regulations. Gas systems, electrical connections and premises where the appliances are installed must comply with current regulations in the country of installation;...
Page 19
All manuals and user guides at all-guides.com INSTALLATION valve and fast-closing valve. Once installation is complete, make sure that there are no gas leaks from the fittings; to do this, do not use a naked flame but substances that do not cause corrosion, such as solutions of soapy water or leak detectors.
Page 20
All manuals and user guides at all-guides.com INSTALLATION - "A" type devices (see data plate) "A" type appliances must discharge combustion products into appropriate hoods, or similar devices, connected to an efficient fume stack or directly to the outside. (Natural evacuation) Fig. 1 If this is not possible, using an air suction device connected directly to the outside is permitted (Forced Evacuation) Fig.2, having a flow capacity not lower than the value defined in point 4.3 of the UNI-CIG 8723 standard.
Page 21
All manuals and user guides at all-guides.com INSTALLATION 1 Windproof fume stack (fig.3) - Extractor hood (fig.4) 2 Servo system "B11" type appliances are supplied on request with a hood or a hood and windproof fume stack to be assembled and delivered separately.
All manuals and user guides at all-guides.com BURNERS TECHNICAL DATA TABLE (ITGB) 4 BURNERS TECHNICAL DATA TABLE (ITGB) Burners technical data table Technical data table - Burners TP S70G 12.68 kWh/KG 12.87 kWh/KG 9.45 kWh/m3st. BUTANE PROPANE METHANE H 30 mbar 37 mbar 20 mbar...
All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE 5 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails.
All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE Switching the main burner off · Turn the knob into position . The burner turns OFF and only the pilot flame remains ON Turning the appliance off · Press and turn the gas cock knob to position "0". This control blocks the gas supply to both the main burner and the pilot burner ...
All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE · Also turn the knob of the selector, setting one of the three positions Top + bottom heating element Bottom heating element Top heating element Turning on and adjusting the fan oven The hot air put in circulation by the fan is distributed in the entire oven chamber, ensuring even cooking.
All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE Cooking table for the fan oven Ventilated electrical oven cooking table Guide no. Temperature Min. cooking Type of food from the Quantity Kg °C time bottom Sweets With a beaten dough, in a mould With a beaten dough, without a mould 1-3-4 Shortcrust pastry, cake base...
Page 27
All manuals and user guides at all-guides.com INSTRUCTIONS FOR USE Note · The indication of use of the levels shown in the table is recommended when cooking on multiple levels · The indicated times refer to cooking on only one level. Add 5-10’ when cooking on multiple levels ·...
All manuals and user guides at all-guides.com MAINTENANCE 6 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ...
All manuals and user guides at all-guides.com MAINTENANCE Warning After conversion to another type of gas, update the technical data plate to indicate the type of gas for which the appliance has been converted. Substituting the nozzle in the oven burner ·...
Page 30
All manuals and user guides at all-guides.com MAINTENANCE MEASURES TO BE TAKEN IF THE APPLIANCE IS NOT TO BE USED FOR A LONG TIME: Close the gas cock and/or disconnect the power supply. Clean the system as specified above. Translation of the original instructions...
All manuals and user guides at all-guides.com CLEANING 7 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections.
