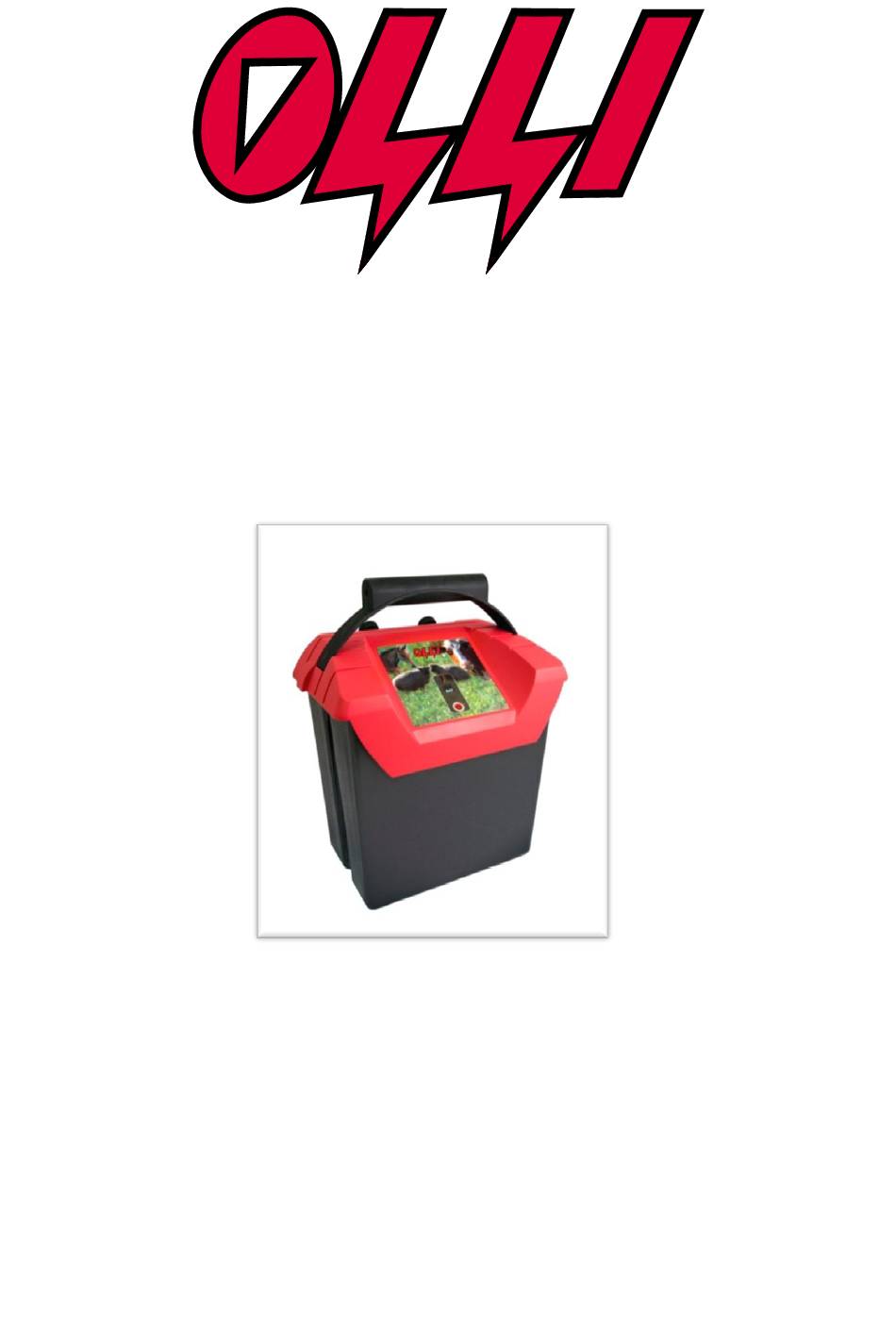

- Page 1 9 Volt Energisers 9.03B, 9.07B, 9.07S Operating Manual...
- Page 2 Contents of the Box 9.03B 9.07B 9.07S - Olli fence energiser √ √ √ - Connection cable to the fence √ √ √ - Earth Stake/Stand √ √ √ - Users guide √ √ √ - 12 Volt Connector Cable √...
- Page 3 How an Electric Fence works The animal makes the connection between the power and the earth and gets the shock ! Assembling the Energiser First Assemble the stand / Earth Stake as seen in the picture → ← Assemble Earth Screw Assembly as shown...
- Page 4 Fit Stand / Earth Stake to the energiser → → ← Power Earth RED LEAD = POWER/FENCE BLACK LEAD = EARTH MAKE SURE THE CONNECTIONS ARE TIGHT Connect the other end of the Earth Cable to the Earth Stand → Fitting the 9 Volt battery 1.
- Page 5 3. On the underside of the top - Connect the RED cable to the + Connect the BLACK cable to the - 4. Replace the handle, make sure it clicks to lock ! Connect to the Fence using the RED fence connector cable supplied MAKE SURE THE CONNECTIONS ARE TIGHT...
- Page 6 Functions of the 9.03B High Power - 0.3J Pulse Light Low Power - 0.15J Battery Indicator On/Off - High/Low Power To Switch On Press until the unit “Beeps” twice to confirm it is on. To change from High/Low Power to Low/High Power Press To Switch Off Press and Keep Pressed for 3 seconds it beeps twice on shutdown.
- Page 7 Functions of the 9.07B & 9.07S Pulse Light Battery Indicator Solar panel or Mains Adapter connected On/Off Fast Pulse every 1.55 seconds Slow Pulse every 2.55 seconds Choose by Pressing High Power - 0.7 J LowPower - 0.3 J Day Mode - High During the day –...
- Page 8 Battery Warning Light – 12 Volt Flashing x 1 = under 12.15 Volts in the battery – remember it will need charging soon! Flashing x 2 = Under 11.95 Volts in the battery – Charge the Battery Flashing x 3 = Under 11.74 Volts in the battery – Empty – Now operating Slow pulse and Low power Pulse light stops flashing when battery level in energiser is not high enough to produce pulses.
-
Page 9: Mains Adapter
Make sure the lock washer is fitted then add the Wing Nut When finished it should look like this → Connect to the smaller connector on the underside of the energiser top. Mains adapter The Olli Solar 9.07 comes complete with a mains adapter for charging the 12 volt re-chargeable battery. - Page 10 Earthing Poor earthing is the most likely cause of poor performance of the energiser; please follow these simple rules; 1. Wet/Clay ground makes good earthing – Dry/sandy soil is a poor earth 2. Use good quality earth stakes that are galvanized – A piece of iron will not work for very long 3.
-
Page 11: Maintenance
Maintenance Test the fence Put the testers earth in the ground Touch the fence with the testers pin Check connections Minimum Voltage should be 4,000 volts The Power in the electric fence is dependent on the connections making good contact. -
Page 12: Lightning Protection
Lightning protection All Olli energisers are protected against over voltage and the warranty covers also lightning damage. However, it is not possible to build the fence energiser to withstand all possible situations. Therefore it is wise to use an Olli lighting diverter whenever the fence is situated in very open ground or if lightning occurs frequently in the region. - Page 13 Instructions for installation and connection of electric fences Electric fences shall be installed, operated and maintained in a manner that minimizes danger to persons, animals or their surroundings and as far as is reasonably possible out of the reach of children and not subject to mechanical damage.
- Page 14 If an electric fence has to be installed under or near overhead power lines it should NOT cross above it or run in parallel to it for any big distance. Electric fencing should done at right angles to the power lines, the distance from the ground to the top of the fence should not exceed 2 meters, and the fence or any part of it should be no closer to the overhead wires than those values shown below;...
- Page 15 EMC directive 2014/30/EU by following the harmonised standards: EEN 60335-2-76:2005+A1:2006+A11:2008+A12:2010 and complies with the electrical safety standard: EN 55014-1:2017, EN 55014-2:2015 Tuusula, Finland March 30, 2012 Signed Declarations of Conformity documents are filed at Farmcomp Oy, Tuusula. Olli Specifications 9.03B 9.07B 9.07S...
- Page 16 FARMCOMP OY Jusslansuora 8 FI-04360 TUUSULA, FINLAND Tel. +358 9 7744 970 info@farmcomp.fi www.olli.fi Copyright © Farmcomp Oy 2012, All Rights Reserved 3820780...
