- Page 1 ELECTRIC FENCE ENERGISERS 122B Operating Manual...
- Page 2 Contents of the Box 122B √ √ √ - Olli fence energizer √ √ √ - Earth stake stand (in parts) √ √ √ - Fence connect cable and wall mount screw √ √ √ - Earth stake connection wire √...
-
Page 3: Preparation For Use

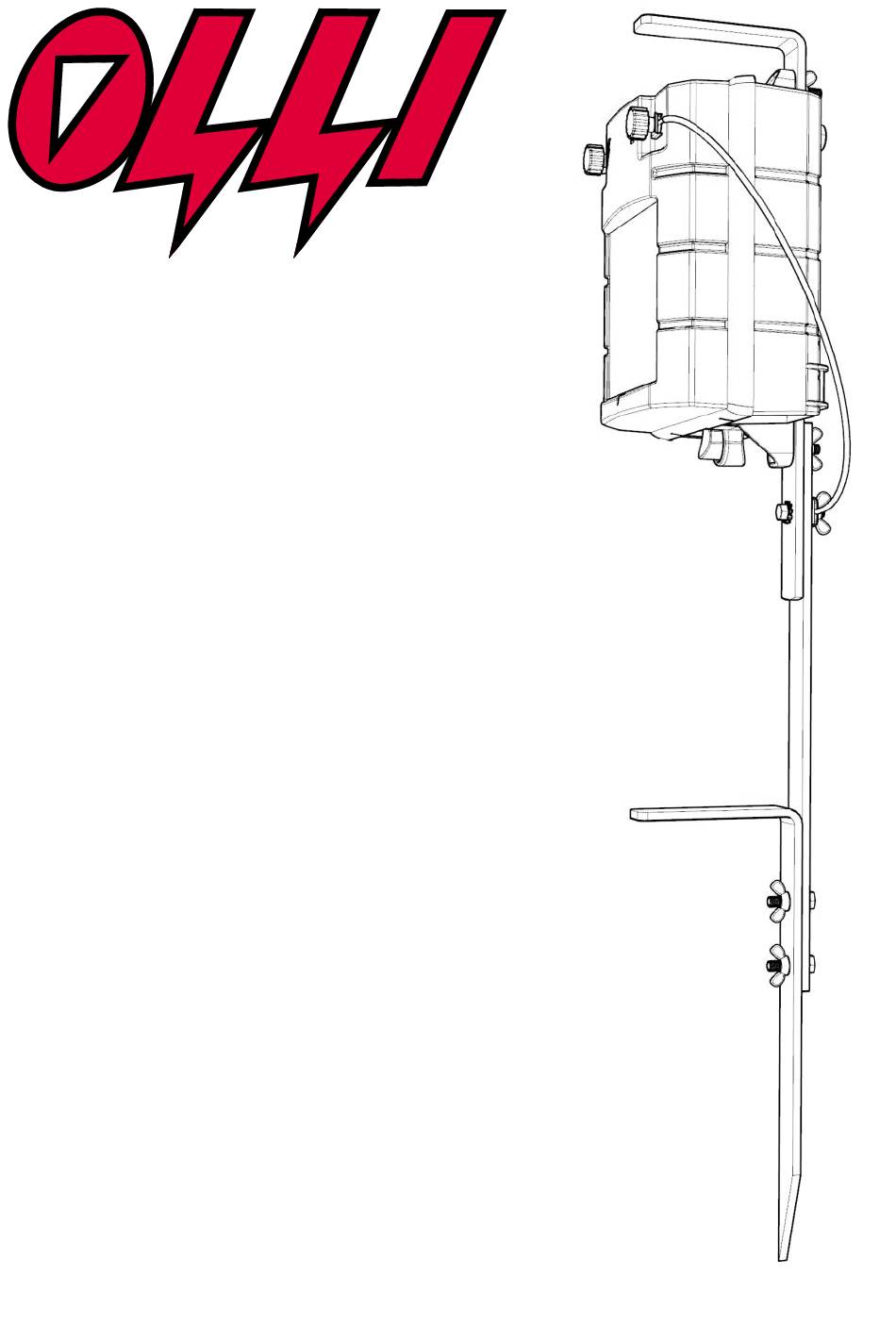

How an Electric Fence Works When an animal touches the fence, electrical current travels through the animal to earth, and back to the energiser through the earth stakes. Preparation for Use Never install the energiser upside down or leave it on the ground! The energiser must be screw mounted on a wall or a post or to included earth stake stand. - Page 4 Assemble the earth stake stand as illustrated above. Push earth stake firmly to the ground. Make sure it doesn't fall. If soil is dry, the included earth stake stand may not provide sufficient earthing. In this case use separate Olli earth rods. Fence connection Connect black earth wire to terminal marked with the earth symbol...
- Page 5 battery. Once mains voltage returns, 12 V battery will be charged slowly(ca. 10 Ah per day) until battery is fully charged. - Connect white connector to the charging port on the bottom of the energiser. - Optionally connect 12 V battery (battery backup for unreliable mains). - Put the adapter to a mains outlet (indoor use only!).

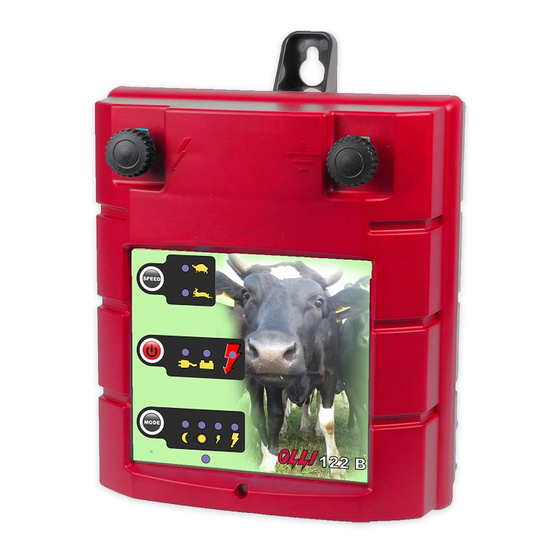

- Page 6 (or vice versa) press power button again. To switch Off, press and power button and keep it pressed for 3 seconds until the unit beeps twice on shutdown. Olli 122B / 62B Features Pulse light Battery warning light Mains adapter or solar panel connected...
- Page 7 Fast pulse every 1.5 seconds Slow pulse every 2.5 seconds Speed select button Pulse Light Pulse light flashes upon each fence pulse. If fence voltage is poor (less than 2000 V), the light will flash twice on each pulse. In this case check the fence for faults.
- Page 8 Earthing Poor earthing is the most likely cause of poor performance of the energiser; please follow these simple rules: 1. Wet/clay ground makes good earthing – Dry/sandy soil is a poor earth. 2. Use good quality earth stakes that are galvanized – A piece of iron will not work for very long.
-
Page 9: Lightning Protection
The power in the electric fence is highly dependent on quality of the fence. Install wires and insulators wit care. Any vegetation touching the fence wire will draw power away from the fence. It is necessary to check the fence regularly! Lightning protection All Olli energisers are protected against over voltage and the warranty covers... - Page 10 The warranty does not cover any damages that are caused by incorrect or careless use of the product, installation that does not correspond to the provided instructions and other damages which may arise due to causes beyond the control of the Manufacturer. Olli does not accept any responsibility for any direct, indirect or consequential damages that are caused by the use of the product or the fact that the product could not be used.
- Page 11 Installation and Use of Electric Fences Electric fences shall be installed, operated and maintained in a manner that minimizes danger to persons, animals or their surroundings. These instructions add to any official local regulations but are not meant to overrule them.
- Page 12 15 m for power lines with higher voltage. Additionally, the fence or any part of it should be no closer to overhead wires than the values shown below Power Line Voltage Up to 1,000 Volts Clearance 3 m Power Line Voltage 1,000 to 33,000 Volts Clearance 4 m Power Line Voltage...
- Page 13 EMC directive 2014/30/EU by following the harmonised standards EN 55014-1:2017 EN 55014-2:2015 and comply with the electrical safety standard EN 60335-2-76:2005+A1:2006+A11:2008+A12:2010. Tuusula, Finland February 31th, 2014 Signed Declaration of Conformity documents are filed at Farmcomp Oy, Tuusula.
- Page 14 FARMCOMP OY Jusslansuora 8 FI-04360 TUUSULA, FINLAND Tel. +358 9 7744 970 info@farmcomp.fi www.olli.fi Copyright © Farmcomp Oy 2014, All Rights Reserved 3820779...
