- Page 1 CATCHX BAIT BOAT QUICK START GUIDE Please visit https://rippton.com/tutorial to watch the video tutorial of CatchX. PLEASE READ SECTION 6 AND 7 IN THE USER MANUAL BEFORE READING THIS GUIDE.

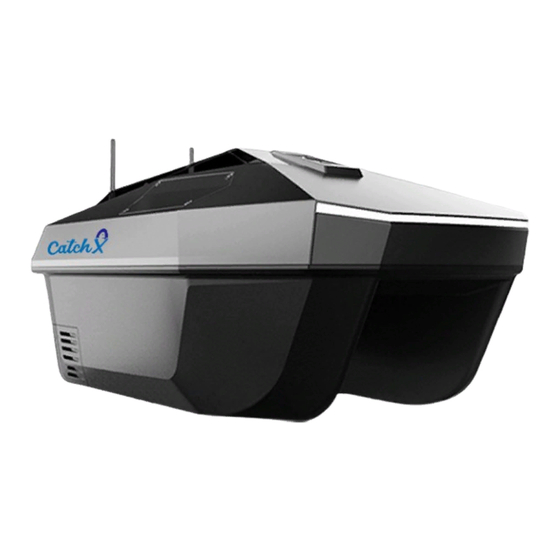

- Page 2 Dear Customer, Thank you for purchasing the CatchX baitboat. CatchX is an advanced smart fishing bait boat, which has a payload of 3kg and a range of 800 meters. With the two ergonomic handles, it is easy to carry around with.
-
Page 3: Installation Of The Batteries
1. Installation of the Batteries Use your hand or your own screwdriver to unlock the battery compartments. Open battery compartments and place two fully-charged batteries respectively. 2. Control of LED Light Belt Double click the power button of the remote control to switch on/off both of the head LED light belt and the tail light belt. -
Page 4: How To Use The Remote Control
4. How to Use the Remote Control 4.1 Brief The CatchX bait boat is capable of covering 800 meters controlled by the CatchX remote control. The remote control is equipped with a display screen and buttons of different functions as the image below shows. Please refer to Section 6&7 of the User Manual... - Page 5 4.2 Preparation of the Remote Controller Step 1 Unfold the rack Step 2 Unfold the antennas. Step 3 Attach your mobile device to the mobile device holder clamp 4.3 Operation of the Joystick TIP: Move the joystick to the right to the maximum extent for 3 seconds to unlock.
- Page 6 4.4 Releasing Burley and Hooked Fishing Line by the remote If you intend to use the remote to release burley and/or fishing line，please make sure the screen on the remote shows M (manual mode). If you intend to release hopper 1, press the button HOPPER1, and wait till the green light of the button turns...
- Page 7 Step 2: Tap the “catchx_xxxxxx” and enter the password 12345678. 5.2 Operation Step 1: Open the Rippton app and tap “Fishing” on the bottom Step 2: Tap the icon in the left upper corner to enter the device control page.
- Page 8 Before setting a mission, please check the image below to understand what each icon stands for. The Learner Mode (sailing range limited within 300m) is automatically on the first time you enter the page. It can be turned off in Common Set.
- Page 9 Step 3: Calibration After the boat connected with the APP, please tap the cog icon on the top right-hand corner of the APP interface to enter “Common Set” as below: Then tap “Ellipsis” icon on the bottom right-hand corner for calibration.
- Page 10 Press “Calibrate” on the line of “Compass” to start the whole calibration process: Note: ⚫ Clockwise rotation. ⚫ For horizontal calibration, please keep CatchX’s nose facing outwards. For vertical calibration, please ensure CatchX’s nose always goes downwards from the beginning.
- Page 11 Step 4: Set a Route for Casting Mission 4.1 Tap the “Mission Management” button (in red square 1) on the top of left side to start setting a route for your casting mission. Press the green button to confirm (in red square 4.2 Tap the “H”...
- Page 12 ✓ Before performing the mission, tap the ✓ If you start a task without selecting selected waypoint, and then tap hoppers before the CatchX begins to “Hopper Selection” to confirm which sail, you need to confirm which hopper or fishing line to be released on hopper to be released every time which waypoint.
- Page 13 Step 6: Perform the Mission Tap “Start” in the right bottom corner. Slide to start. NOTE: The CatchX will return to the home point automatically after the mission is completed. If you intend to cancel the ongoing mission, there are two methods: tap the “Return to Home Point”...
- Page 14 Slide to cast. 6. Charging 6.1 CatchX Bait Boat Direct charging ： 5.5/2.5 DC charging port (please refer to Picture1). Please note that both batteries must be inside the boat together when direct charging. It takes 4-6 hours to be fully charged;...
- Page 15 6.2 Remote Control Connect type-C side of the controller charger to the power port. It takes 2-3 hours to be fully charged.
- Page 16 Catch and e plore the Future For digital User Manual and video tutorials，please visit https://www.rippton.com/ If you have any questions, please contact support@rippton.com...
