Summary of Contents for Rippton HYDROBAT

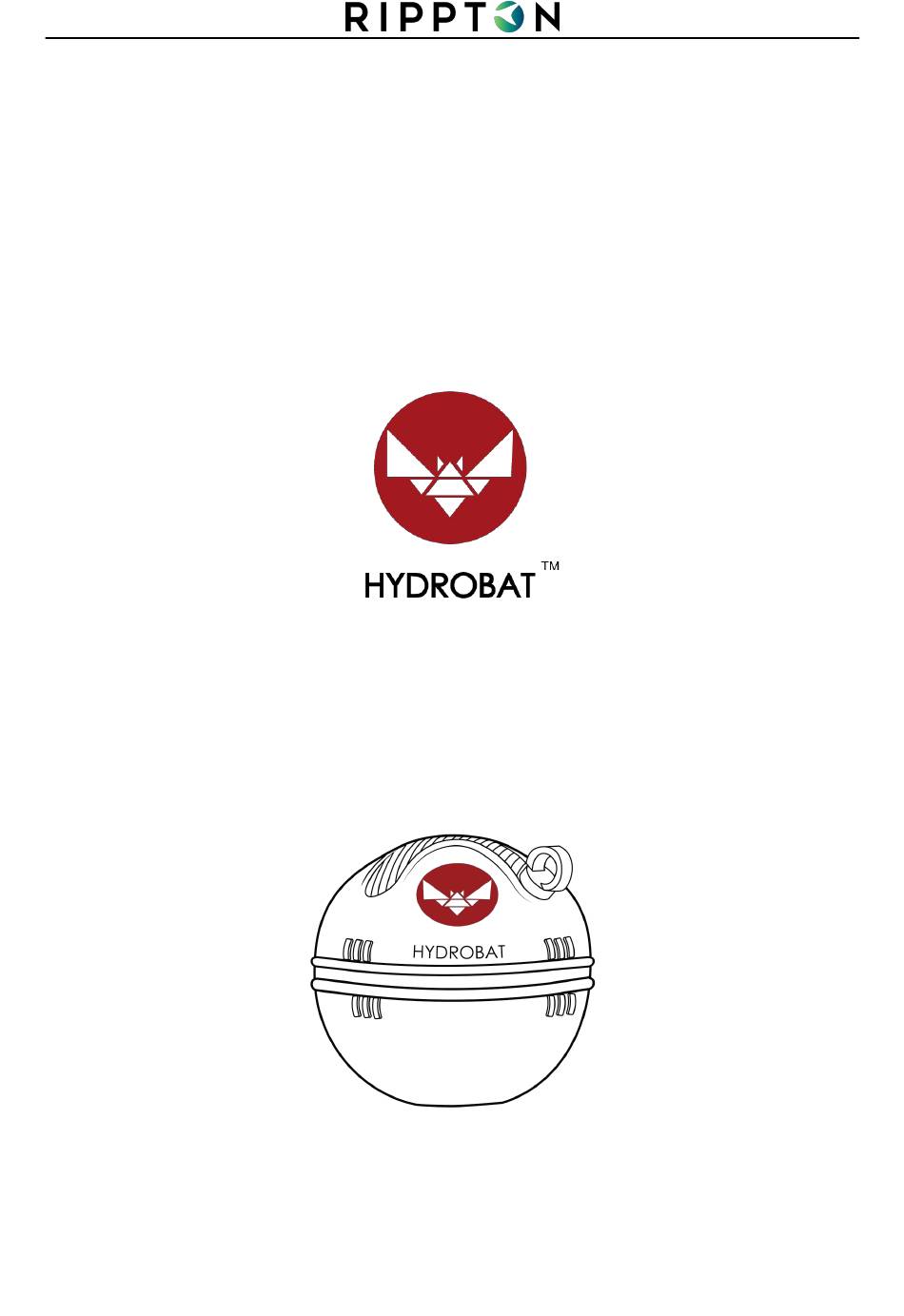

- Page 1 USER MANUAL Smart Fish Finder V6:2022/10/12...
-
Page 2: Table Of Contents
Catalogue 1. “Rippton” App Downloading ..............1 2. Directions for Use ..................1 3. Other Setting ................... 11 4. How to Charge ..................13 5. Specification ....................14 6. Other Tips ....................14 7. Disposal ....................15 8. FCC Compliance ..................16... -
Page 3: Rippton" App Downloading
Search for “RIPPTON” on the Google Play Store, Samsung Galaxy Apps or App Store or scan this QR code to install the app on your mobile device. You can find the “Rippton” app on the Google Play Store, Samsung Galaxy Apps and App Store. Installing the app requires... - Page 4 After the fish finder being turned on in water, please enter Settings in your mobile device and get into “WLAN”. Find “PLK-*****” in the list of available Wi-Fi networks and tap to connect with Password: 12345678 Enter “Rippton” App on your mobile device, tap “Device” and select the “HYDROBAT Fish Finder” interface.
- Page 5 After connection, please open Settings, and then turn off AP mode. It is required to enter the unique 6-digital SSID code to connect the fish finder with the boat as below: Kind Reminder: The unique 6-digital SSID code can be found inside the cover as shown above.
- Page 6 Get back to the Settings in your mobile device, re-enter “WLAN” and find “IN-******” in the list of available Wi-Fi networks and tap to connect with Password: 12345678 Re-enter “Rippton” App, tap “Device” select “CatchX Pro” interface. 10) Tap the 5 icon on the left to open the fish finder window.
- Page 7 11) Prior to performing any task, please set a home point according to the instructions below: 12) Tap the 2 icon on the left and select the suitable mission type for your need. Fixed Point Scan Long press the screen to pin spots (up to 10) in the green cycle to form a route for the fixed-point scanning mission.
- Page 8 Once the route is formed, tap “Start” on the bottom right corner and slide to confirm. The boat will straight perform the mission spot by spot. Zone Scan ≤spot number≤10 In the green cycle, please clockwise pin spots (3 by long press the screen for each one to set the zone of scanning mission.
- Page 9 Once the zone is formed, tap “Start” and slide to confirm. The boat will perform a kind of grid scan within the zone by sailing along the auto-generated green line. Mapping If you intend to know the depth of any fresh water area, the mapping function is a good choice for you.
- Page 10 Tips: Accurate Mapping has smaller line spacing (1m) for guided scanning than that of Quick Mapping (2m) a. In the green cycle, please clockwise ≤spot pin spots (3 number≤10 ) by long press the screen for each one to set the zone of mapping.
- Page 11 Time Axis c. Tap the 5 button on the right to show the history of your scanning mission in this water area. The red part of the Time Axis represents the time point in which you have available information. AP Mode (Use Solely without Boat) Ensure that your fish finder has been fully charged.
- Page 12 “WLAN”. Find “PLK-*****” in the list of available Wi-Fi networks and tap to connect with Password: 12345678. Enter “Rippton” App on your mobile device, tap “Device” and enter “Fish Finder” interface. Please keep the fish finder within the range of 35 meters around your...
-
Page 13: Other Setting
3. Other Setting 3.1. Switch on/off Display Fish Figure on the top right corner. 3.2. Tap “Sensitivity” to adjust detection sensitivity. 3.3. Tap “Settings” to customize your preferences. - Page 14 3.4. Sonar Mode Tap “Sonar Mode” to select the frequency 3.5. Depth Alarm...
-
Page 15: How To Charge
3.6. Fish Alarm 4. How to Charge Kind Reminder: Please use a 5V charging plug with the provided Micro USB cable. -
Page 16: Specification
5. Specification Dimensions: 68mm Weight: 105g Connection Mode: WiFi Connection Range: No less than 35m (solely) Range When Connected with the CatchX Pro Bait Boat: 500m Max/min Detection Depth: 100m/0.6m Detection Angles: 55°/15° Frequency: 110KHz/300KHz Data Frame Rate: 10 f/s Sensitivity Adjustment range: 1% - 100% Run Time on a Full Charge: 5.5 –... -
Page 17: Disposal
7. Disposal 7.1 Disposal Of Electronic Components The symbol on the product, the accessories and packaging indicates that this device must not be treated as unsorted municipal waste but must be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment if you live within the EU and in other European countries that operate separate collection systems for waste electrical and electronic equipment. -
Page 18: Fcc Compliance
8. FCC Compliance 8.1 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 19 8.4 FCC RF Exposure Information (SAR) This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
- Page 20 Name: Sea&Mew Accounting Ltd Address:Electric Avenue Vision 25, London, Enfield EN3 7GD Contact Person: Billy Han Email：info@seamew.net Manufacturer Company Name: Ningbo Pelican Smart Fishing Tackle Co., Ltd Address:16 Yongchang Road, Xiangshan County, Ningbo, Zhejiang Province, China, 315000 Importer Company Name: Ningbo Smart Fish Network Technology Co., Ltd Address: Room 1101, Building E, 655 Xueshi Road, Xinzhou District, Ningbo, Zhejiang Province, China, 315000...
