Summary of Contents for RTimes X508
- Page 1 X508 Product Manual Realtimes Beijing Technology Co., LTD. Fax：+86 010-84284669 / 84280996 Email: info@realtimes.cn Web Page: https://www.realtimesai.com Address:11th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District, Beijing 100013,P.R.China...
- Page 2 Reason for change Modified by hardware version V1.0 2020.02 Initial release V1.0 V1.1 2020.06 Add notes and indicators V1.0 V1.2 2020.09 Add line package configuration V1.0 RT0086 V1.3 2022-1-10 Add software version supporting V1.0 RT0086 instructions X508 Reference Manual V1.3...
-
Page 3: Table Of Contents
................................14 ETPACK 3.1 Jetpack Component summary ........................14 3.2 How to install Jetpack ..........................14 3.3 Sample application ............................16 3.4 Developer tools ............................16 3.5 Documentation .............................17 TERMS OF WARRANTY ..........................18 COPYRIGHT NOTICE ............................19 X508 Reference Manual V1.3... - Page 4 (including X508). Anti-static safety protection measures include, but are not limited to the following: a) The smart box should be placed in an anti-static bag during transportation and storage, and then the board should not be taken out during installation and deployment.
- Page 5 Due to the wide range of embedded system knowledge and various types of involvement, we can not guarantee that all kinds of questions can be answered one by one. The following content is not available for technical support, only suggestions can be provided. 1) Knowledge beyond the course published by our company; X508 Reference Manual V1.3...
- Page 6 Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay close attention to our developments in order to ensure that your information is up to date. We will push through WeChat public. X508 Reference Manual V1.3...
-
Page 7: Product Presentation
Product presentation 1 Product introduction RTSS - X508 to one based on NVIDIA Jetson ™ AGX Xavier series ™ module design of your new feiyun box, built-in integration 512 nuclear Volta ™ architecture of GPU AGX Xavier module, Ubuntu 18.04... -
Page 8: Ordering Information
Includes power adapter, provides RtSO-1001 Linux4Tegra software support package, has passed THE 3C and CE certification RTS-Xavier-AC/DC Power Adaptor for X508-1/-2, 100-240VAC/12V/6A,72W Mini-pcie Video Capture Card ,RTSV-6911i (8-channel D1 RTSV-6911i (optional ) NTSC/PAL video input), Pro Capture Mini SDI (single-channel SDI... -
Page 9: Product Specifications

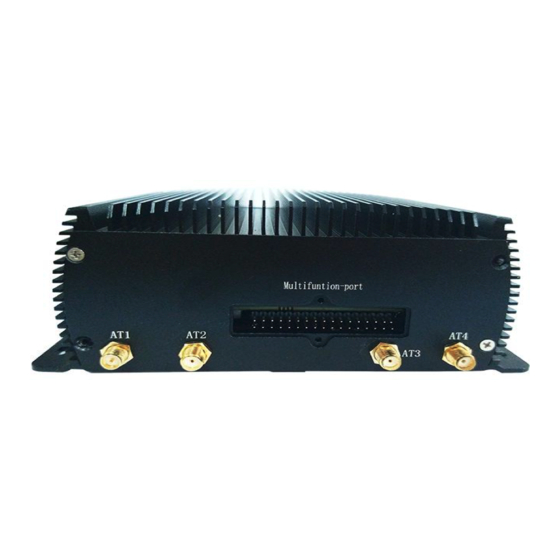

Realtimes Beijing Technology Co.,LTD www.realtimesai.com Product specifications 1 External interface function and location X508 FRONT X508 BACK X508 Reference Manual V1.3... -
Page 10: Connectors Description
TF CARD （top） marking Micro SD（TF） Type 2.5 SIM card connector SIM card interface Function TF CARD （below） marking Micro SIM Type 2.6 Power input port Power input port Function 9～20V marking 4 Pin interface Type X508 Reference Manual V1.3... -
Page 11: Led
USB2.0 connectors or two serial port Function Debug marking UBS2.0 Micro Type-B Type 2.9 USB3.0 connector USB3.0 connectors Function USB3.0/DP marking USB Type-C Type The USB3.1 Type-C interface in the green frame can be used for Pin define system flash. X508 Reference Manual V1.3... -
Page 12: Function Pin
UART1 and UART2 is ttyTHS0, ttyTHS1. GPIO high level is 3.3V and GPIO is directly derived from Xavier,The mapping Numbers of GPIO04, GPIO05, GPIO20 and GPIO21 in the system are respectively:290、289、291、288 The mapping number of I2C in the system is: I2C-2. X508 Reference Manual V1.3... -
Page 13: Product Size Diagram
Realtimes Beijing Technology Co.,LTD www.realtimesai.com 3 Product size diagram 4 Hardware update history X508 hardware update history edition Updata description V1.0 Initial release X508 Reference Manual V1.3... -
Page 14: Software Version Supporting Instructions
(BSP) and sample file system. X508 Smart Box is working on a system burned with the official original version of NVIDIA Linux For Tegra (L4T). HDMI, Gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus can all be supported. But Mini-PCIe, M.2, USB3.0, fan interface, etc. -
Page 15: Jetpack
You must have a Linux host with internet access to run SDK Manager and refresh the developer kit. The supported host operating systems are: Ubuntu Linux x64 Version 18.04 or 16.04 Download and install NVIDIA SDK Manager. Installation package： sdkmanager sdkmanager-[version].[build#].deb The current version is： sdkmanager_1.2.0 X508 Reference Manual V1.3... - Page 16 Use SDK Manager to select and install the required components NVIDIA SDK Manager supports installing software to Jetson core (Flying Cloud Smart Box). For complete instructions, please refer to Chapter 5 of "Xavier System Programming Manual". X508 Reference Manual V1.3...
-
Page 17: Sample Application
API debugging through user interface and command line tools. •NSight Graphics for graphics application debugging and evaluation: a consolegrade tool for debugging and optimizing OpenGL and OpenGL ES programs. Run on the Linux host. Support all Jetson products. X508 Reference Manual V1.3... -
Page 18: Documentation
Documentation • CUDA Toolkit • NVIDIA Container Runtime • OpenCV Documentation • Jetson Linux Multimedia API Reference • Nsight Systems • nvprof • Visual Profiler • Nsight Graphics • Nsight Compute CLI • VPI–Vision Programming Interface X508 Reference Manual V1.3... -
Page 19: Terms Of Warranty
Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or broken,the wrong connection,drop damage,transportation damage,damage due to over operating temperature and so on). e) The logo and part number on the product have been deleted or removed. The product is out of warranty. X508 Reference Manual V1.3... -
Page 20: Copyright Notice
Without the written permission of the company, no unit or individual may copy, extract, backup, modify, disseminate, translate into other languages, or use all or part of it for commercial purposes in any way or form. X508 Reference Manual V1.3...
