Summary of Contents for RTimes X508
- Page 1 X508 User Manual Realtimes Beijing Technology Co., LTD. Fax：+86 010-84284669 / 84280996 / 84278927 Email: info@realtimes.cn Web Page: http://www.realtimes.cn Address: 9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District, Beijing 100013,P.R.China...
- Page 2 Revision History Applicable hardware Revision Date Reason for change Modified by version V1.0 2020.02 Initial release V1.0 V2.0 2020.06 Add notes and indicators V2.0 V2.0 2020.09 Add line package configuration V1.0 X508 Reference Manual V2.0...
- Page 3 (including X508). Anti-static safety protection measures include, but are not limited to the following: a) The smart box should be placed in an anti-static bag during transportation and storage, and then the board should not be taken out during installation and deployment.
- Page 4 3) Burn in verification of all BSP support packages provided by the company; 4) The company released burn environment construction, entry-level use. ; 5) Various peripheral module drivers released by the company; 6) The company's product fault diagnosis and after-sales maintenance services; 2. Scope of technical discussion X508 Reference Manual V2.0...
- Page 5 Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay close attention to our developments in order to ensure that your information is up to date. We will push through WeChat public. X508 Reference Manual V2.0...
-
Page 6: Table Of Contents
OWER INPUT PORT 4.7 LED...................................12 4.8 OTG-USB2.0 ..........................12 CONNECTOR 4.9 USB3.0 ............................12 CONNECTOR 4.10 F ..............................13 UNCTION PIN 5 HARDWARE UPDATE HISTORY........................13 6 PRODUCT SIZE DIAGRAM..........................14 7 SOFTWARE/BSP DETAILS..........................14 8 TECHNICAL SUPPORT............................15 TERMS OF WARRANTY............................16 X508 Reference Manual V2.0... -
Page 7: Product Introduction
1 Product introduction RTSS - X508 to one based on NVIDIA Jetson ™ AGX Xavier series ™ module design of your new feiyun box, built-in integration 512 nuclear Volta ™ architecture of GPU AGX Xavier module, Ubuntu 18.04 operating system, with 32 tflops floating point arithmetic AI processing capacity, super strong light aluminum... -
Page 8: Feature
4x GPIO compliance with 3.3V voltage level 3x 3.3V UART interface 2x CAN interface 1x SPI interface 1x I2C interface 1x I2S interface Size：150mm×127.8mm×61.85mm Power input: 9~20V Temperature: -20℃~+55℃ Weight:1240g X508 Reference Manual V2.0... -
Page 9: Ordering Information
(Type-C revolution type-a female); Includes power adapter, provides RtSO-1001 Linux4Tegra software support package, has passed THE 3C and CE certification RTS-Xavier-AC/DC Power Adaptor for X508-1/-2, 100-240VAC/12V/6A,72W Mini-pcie Video RTSV-6911i (8-channel D1 NTSC/PAL video input), Capture Card (optional) RTSV-6901 (single-channel SDI video input), RTSV-6941 (single-channel HDMI Video Input) M.2 transfer card... -
Page 10: External Interface Function And Location

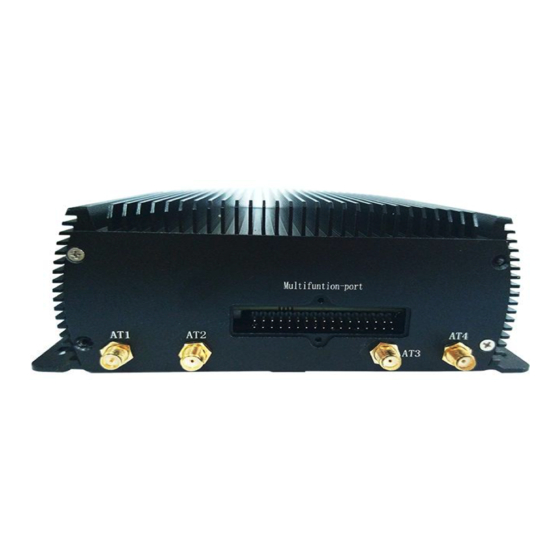

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html 2 External interface function and location X508 FRONT X508 BACK X508 Reference Manual V2.0... -
Page 11: Installation And Use
USB cable connecting the keyboard and mouse ...) c) Connect the power cord to a power source. d) X508 adopts manual power-on design. Turn on the power and the system starts to work. 3.2 Recovery mode... -
Page 12: Connectors Description
Function USB3.0 marking UBS3.0 Type-A Type 4.4 SD card connector SD card interface Function TF CARD （top） marking Micro SD（TF） Type 4.5 SIM card connector SIM card interface Function TF CARD （below） marking Micro SIM Type X508 Reference Manual V2.0... -
Page 13: Power Input Port
4.8 OTG-USB2.0 connector USB2.0 connectors or two serial port Function Debug marking UBS2.0 Micro Type-B Type 4.9 USB3.0 connector USB3.0 connectors Function USB3.0/DP marking USB Type-C Type interface can be used for system programming.it’s USB3.1 Pin define Type-C. X508 Reference Manual V2.0... -
Page 14: Function Pin
UART2 is ttyTHS0, ttyTHS1, and UART3 is the debugging port. The mapping Numbers of GPIO04, GPIO05, GPIO20 and GPIO21 in the system are respectively: 288, 289, 290, 291 5 Hardware update history X508 hardware update history X508 Reference Manual V2.0... -
Page 15: Product Size Diagram
Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html edition Updata description V1.0 Initial release 6 Product size diagram 7 Software/BSP Details X508 Reference Manual V2.0... -
Page 16: Technical Support
Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html The X508 board works on systems that burn using the official original NVIDIA Linux For Tegra (L4T) ,HDMI, gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus, fan interface, can be supported. But Mini-PCIe, USB3.0, M.2,etc,can't work normally. -
Page 17: Terms Of Warranty
Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or broken,the wrong connection,drop damage,transportation damage,damage due to over operating temperature and so on). The logo and part number on the product have been deleted or removed. The product is out of warranty. Special concerns X508 Reference Manual V2.0... - Page 18 Rev.C 6/2020 X508 Reference Manual V2.0...
