Important
When cleaning the exterior of the printer, use a soft cloth to wipe it gently. For details, refer to "Cleaning Your Printer" in the Quick Start Guide.
1
2

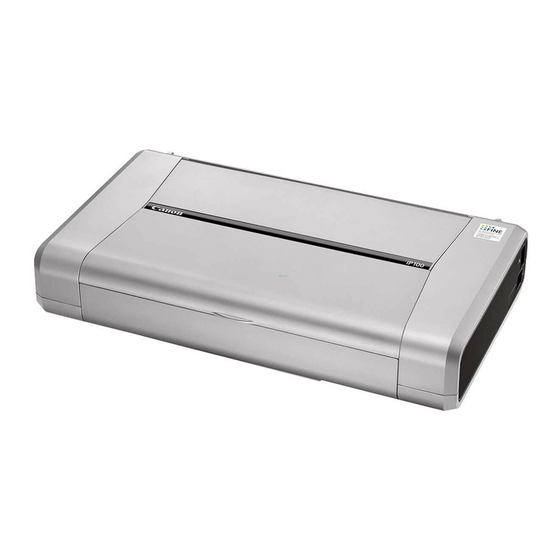

Prepare the Printer
Install the Print Head
a
Unpack the Printer.
a
Open the Print Head Cover. The Print
Head Holder moves to the center.
Confi rm the included items referring to the
illustration printed on the lid of the packing box
or "Included Items" in the Quick Start Guide.
A USB cable is necessary to connect the printer
with your computer.
b
Place the printer on a fl at and
horizontal surface, and do not place
any objects in front of the printer.
Remove all the shipping tapes on the outside of
the printer.
Connect the power cord to the AC
c
adapter. Plug the AC adapter into the
Unlock the Print Head Lock Lever by
b
printer, and connect the other end of
squeezing both tabs inward.
the power cord to the wall outlet.
Important
Make sure the printer is turned on and the Power
lamp is flashing green.
Important
Make sure the Print Head Holder has moved to
the center.
Do NOT connect the USB cable at this stage.
Raise the Print Head Lock Lever until it
d
Open the Rear Tray Cover and pull out
c
stops.
the Paper Support completely.
Paper Support
Rear Tray Cover
Caution
Paper Output Slot Cover
Do not touch internal parts other than the Print
Head Lock Lever.
Note
The Paper Output Slot Cover will open automatically.
d
Remove the Print Head from its
package.
Press the Power button to turn on the
e
printer.
Caution
There may be some transparent or light blue ink
on the inside of the bag the print head comes in,
or the inside of the protective cap - this has no
effect on print quality. Be careful not to get ink on
yourself when handling these items.
Start Here
Easy Setup Instructions
e
Remove the orange protective cap from
the Print Head and discard it.
Print Head Cover
Print Head Holder
Important
Do not touch the print head nozzles.
Do not reattach the protective tape once you
have removed it.
f
Insert the Print Head.
g
Lower the Print Head Lock Lever
carefully.
Push both tabs in left to right order until
h
each clicks into place.
Important
Make sure that the Print Head Lock Lever is fi rmly
locked into the Print Head Holder by pressing both
tabs on the Print Head Lock Lever until it clicks.
3
Install the Ink Tanks
Note
For the ink tanks compatible with this printer, refer to
the back cover of the Quick Start Guide.
Print Head Nozzles
a
Remove the orange protective cap and
discard it.
Protective Cap
Ink Port
Important
Do not touch the electrical contacts and the ink
port.
Do not reattach the protective tape once you
Protective Cap
have removed it.
b
Insert the Black ink tank at a slant into
the right slot.
Align the
mark on the ink tank
with the
mark on the Print Head
Align the
mark on the
Holder.
Print Head with the
mark
on the Print Head Holder.
c
Press the
mark on the ink tank until it
clicks into place.
Important
Make sure that the ink lamp lights red.
If the ink lamp does not light red after it is in-
serted, repeat steps b and c.
If the Print Head Cover is left open for more than
10 minutes, the Print Head Holder moves to the
right. Close and reopen the Print Head Cover to
return the holder to the center.
d
Similarly, insert the Color ink tank into
the left slot.
Electrical Contacts
Important
If the front (innermost) part of the ink tank (A) is
sticking up, push down on the Canon logo on the
ink tank as illustrated below. Do not remove the
ink tank forcibly.
(A)
e
Close the Print Head Cover.
Important
Once you have installed both ink tanks, the Power
lamp will fl ash green. Wait for about 2 minutes,
until the Power lamp stops fl ashing and changes
to steady, non-fl ashing green and the printer has
stopped making operating noises, before proceed-
ing.
Note
If the Alarm lamp on the printer fl ashes orange after
you have closed the Print Head Cover, refer to "Alarm
Lamp Flashes Orange" in "Troubleshooting" of the
Quick Start Guide.
QT5-1436-V02
XXXXXXXX
Photo Printer
4
Load Printing Paper
a
Load a sheet of supplied paper (Paper
For Print Head Alignment MP-101)
loaded with the printing side (whiter
side) facing UP in the Rear Tray, align
the paper stack against the guide on
the right side of the Rear Tray.
Make sure that the Paper Thickness Lever is
set to the right.
MP-101
Print Side
Paper Guide
Paper Thickness Lever
Hardware setup is now complete.
Next, turn over and install the software.
© 2008 Canon Inc.
PRINTED IN THAILAND
