STIH)

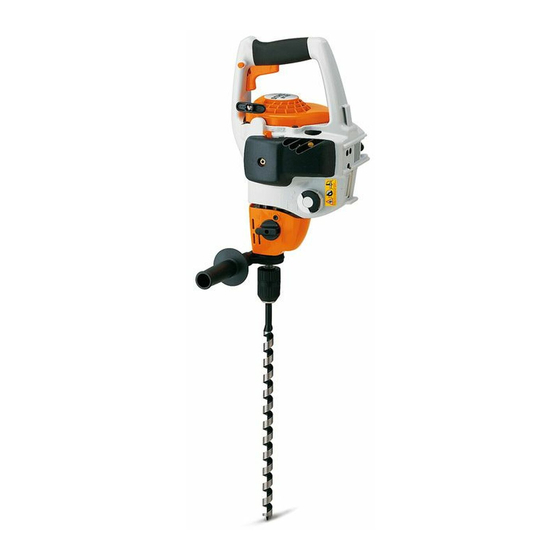

STIHL BT 45
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT 45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stihl BT 45

Summary of Contents for Stihl BT 45

  • Page 1 STIH) STIHL BT 45 Instruction Manual...

  • Page 2: Table Of Contents

    Guide to Using this Manual ....2 Safety Precautions and Thank you for choosing a quality Working Techniques ......3 engineered STIHL product. Mounting the Handles ...... 9 This machine has been built using Using the Power Drill ...... 10 modern production techniques and Fuel ..........

  • Page 3: Guide To Using This Manual

    Engineering improvements in different ways: individual components. STIHL’s philosophy is to continually Note or hint which is not essential A bullet marks a step or procedure improve all of its products. As a result, for using the machine, but may...

  • Page 4: Safety Precautions And Working Techniques

    To When the machine is not in use (work torque, the sharp-edged reduce health risks, STIHL recommends break), shut it off so that it does not drilling tools and the high speed of the that persons with pacemaker consult endanger others and secure it against drilling tool in certain applications.
  • Page 5 Clothing and Equipment Wear heavy-duty accessories that are explicitly approved gloves, preferably made Wear proper protective clothing and for this power tool model by STIHL or of leather. equipment. are technically identical. If you have any questions in this respect, consult a...
  • Page 6 To avoid risk of serious or fatal burn damaged or not properly assembled. injuries, check for leakage. If fuel leakage is found, do not start or run the engine until leak is fixed. BT 45...
  • Page 7 Check and correct the idle speed setting at regular intervals. If the drilling tool still rotates, have your dealer check your machine and make proper adjustments or repairs. BT 45...
  • Page 8 (e.g. gas, water, electricity): – Obtain the necessary information from the public utilities. – In case of doubt, check the existence of cables and pipes with detectors or dig inspection holes. BT 45...
  • Page 9 The period of usage is shortened by: dealer if in doubt. Check that the muffler is in perfect – Any personal tendency to suffer STIHL recommends the use of genuine working condition. from poor circulation (symptoms: STIHL spare parts. Such parts have frequently cold fingers, itching).

  • Page 10: Mounting The Handles

    Loose the two wing screws (3) on the flange (4). Make sure the polymer bushing is correctly seated (see arrow) BT 45...

  • Page 11: Using The Power Drill

    Make sure you have a safe and secure footing. During operation, always hold the machine firmly with both hands to control unexpected reactive forces caused by the drilling tool jamming in or penetrating the ice. Release the throttle trigger if the drilling tool jams. BT 45...
  • Page 12 Release in or passing through the wood. Be the throttle trigger if the drilling tool prepared to release the throttle jams. trigger. Drilling tool jammed See "Releasing a Trapped Auger". ** see "Special Accessories" ** see "Special Accessories" BT 45...

  • Page 13: Fuel

    STlHL engines 0.20 (200) 0.40 (400) and guarantees a long engine life. 0.30 (300) 0.60 (600) If STIHL two-stroke engine oil is not 0.40 (400) 0.80 (800) Mixing Fuel available, use only quality two-stroke oil 0.50 (500) 1.00...

  • Page 14: Fueling

    Rotate the cap about 1/4 turn filler cap is pointing up. counterclockwise and remove. Avoid spills while refueling and do not fill the tank to the brim. STIHL recommends use of the STIHL filling system. BT 45...

  • Page 15: Gearbox

    You must repeat the above steps. drilling spindle slightly before the rotary knob can be moved to the required position. Do not change the position of the rotary knob while the engine is running above idle speed – the drilling tool rotates. BT 45...

  • Page 16: Fitting The Drilling Tool

    !When using the geared rim drill adapter. chuck**, make sure you remove the Use a 17mm open-end wrench to chuck key before starting up. secure and release the planting hole auger. Depending on market ** see "Special Accessories" ** see "Special Accessories" BT 45...

  • Page 17: Starting / Stopping The Engine

    Squeeze the throttle trigger (3) and from loss of control. hold it there. Press in the starting throttle lock (4) and hold it there. Now release the throttle trigger and the starting throttle lock in that order. This is the starting throttle position. BT 45...
  • Page 18 If the engine still does not start: throttle lock moves to the normal run Move the stop switch to $ – this is position and the engine returns to important to prevent any errant idle speed. ignition spark. BT 45...

  • Page 19: Operating Instructions

    If tank has been run completely again. Storing for a long period: dry and then refilled see chapter "Storing the Machine". Press the fuel pump bulb at least fives times. Now start the engine. BT 45...

  • Page 20: Cleaning The Air Filter

    If there is a noticeable loss of firmly. engine power Move choke lever to l. Loosen the nut (1) and remove the filter cover (2). Clean away loose dirt from around the filter. Take the filter (3) out of the filter housing (4). BT 45...
  • Page 21 Turn low speed screw (L) clockwise (richer) no further than counterclockwise until the engine stop. runs and accelerates smoothly. It is usually necessary to change the setting of the idle speed screw (LA) after every correction to the low speed screw (L). BT 45...

  • Page 22: Checking The Spark Plug

    100 operating hours – or sooner if the electrodes are badly eroded. Install only suppressed spark plugs of the type approved by STIHL – see "Specifications". To reduce the risk of arcing and fire: If engine is down on power, difficult to...

  • Page 23: Engine Running Behavior

    Have the muffler checked for contamination (coking). STIHL recommends that all maintenance and repair work be carried out by an authorized STIHL dealer. Replacing the starter rope Remove remaining rope from the rotor and grip. The rewind spring may pop out and Tie a simple overhand knot in the uncoil during this operation.
  • Page 24 Release the rope rotor. Refit the pawl (4). Fit the washer (3). Install spring clip (2) on starter post and engage it on the pawl's peg – the spring clip must point clockwise. ** see “Special Accessories” BT 45...

  • Page 25: Storing The Machine

    Use a suitable tool to push spring into the housing. Apply tool through the openings (arrows). The frame slips off in this process. If the spring pops out of the housing during installation: Refit it in the clockwise direction, starting outside and working inward. BT 45...

  • Page 26: Maintenance Chart

    All accessible screws and nuts (not Retighten adjusting screws) Inspect AV elements Have replaced by servicing dealer Drilling spindle Clean Inspect Drilling tool Replace Safety label Replace STIHL recommends that this work be done by a STIHL servicing dealer BT 45...

  • Page 27: Minimize Wear And Avoid Damage

    STIHL recommends that you have caused by non-observance of the safety maintenance and repair work carried out – Clutch precautions, operating and maintenance only by an authorized STIHL servicing – Augers instructions in this manual. This includes dealer. STIHL servicing dealers are able –...

  • Page 28: Main Parts And Controls

    18 Assist handle* 19 Muffler with spark arresting screen 20 Spark plug boot 21 Drilling spindle 22 Adapter for planting hole auger 23 Adapter for ice auger Depending on market see "Guide to Using this Manual" ** see "Special Accessories" BT 45...

  • Page 29: Specifications

    English Specifications Engine Ignition system Weight Electronic magneto ignition STIHL single cylinder two-stroke engine (without attachment and drilling tool) Spark plug (suppressed) 4.8 kg Displacement: 27.2 cm Bosch WSR 6 F, NGK BPMR 7 A or Dimensions Bore: 34 mm...

  • Page 30: Special Accessories

    (for attaching to machine) When repairing the machine, only use Chuck with chuck key replacement parts which have been approved by STIHL for this power tool conforms to the specifications of Kit for wood drill or are technically equivalent. Only use Directives 98/37/EC and 89/336/EEC.

  • Page 31: Quality Certification

    All STIHL products comply with the highest quality standards. An independent organization has certified that all products manufactured by STIHL meet the strict requirements of the ISO 9001 standard for quality management systems in terms of product development, materials purchasing, production, assembly, documentation and customer service.
  • Page 32 English BT 45...
  • Page 33 English BT 45...
  • Page 34 0458 421 0121 englisch / English...
