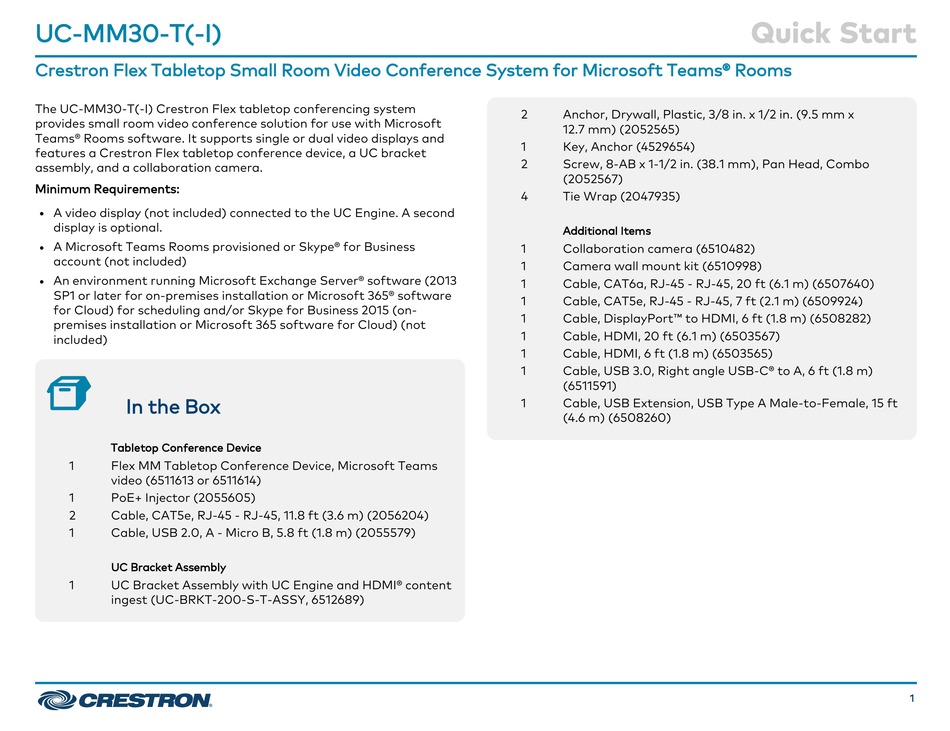

Crestron UC-MM30-T Quick Start Manual

UC-MM30-T(-I)
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

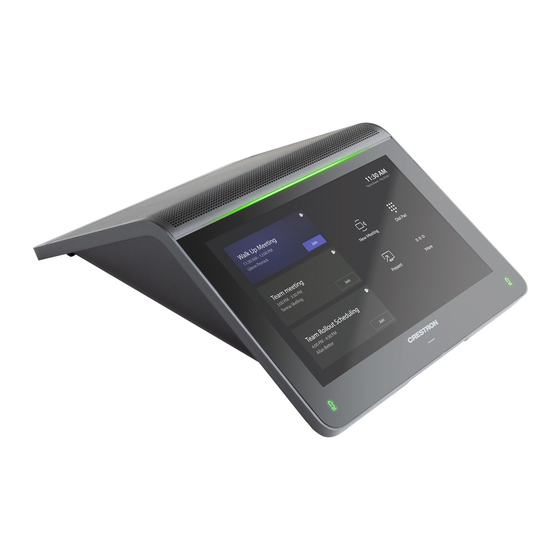

The UC-MM30-T(-I) Crestron Flex tabletop conferencing system
provides small room video conference solution for use with Microsoft
Teams® Rooms software. It supports single or dual video displays and
features a Crestron Flex tabletop conference device, a UC bracket
assembly, and a collaboration camera.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Tabletop Conference Device
1 Flex MM Tabletop Conference Device, Microsoft Teams
video (6511613 or 6511614)
1 PoE+ Injector (2055605)
2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)
1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-T-ASSY, 6512689)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft
(4.6 m) (6508260)
Quick Start
