AIR SOURCE

Clean air of correct air pressure is recommended for the power supply
for this tool . A maximum of 90 PSI at the tool is recommended for most
air tools of this class. Check specifications section for recommended
pressure . (Depending on length of air hose and other circumstances, air
pressure at compressor may need to be increased to 100 PSI to ensure
90 PSI at the tool .)
Water in the air hose and compressor tank contributes to reduced per-
formance and damage of the air tool. Drain the air tank and filters before
each use and as necessary to keep the air supply dry .
Hose length over 25' causes loss in line pressure . Increase hose I .D . or
increase compressor pressure to compensate for the pressure loss . Use
an in-line pressure regulator with gauge if air inlet pressure is critical .
LUBRICATION & MAINTENANCE
Warning!
Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil
placed in the air inlet is sufficient. Use proper air pressure and CFM
rating listed for this tool.
Drain water from hoses and compressor tank . Water in the air supply
line will cause gumming and loss of power. Clean the air filter on the
supply line and flush the tool with gum solvent or a 50/50 mix of air tool
oil and kerosene . It may be necessary to disassemble the tool to prop-
erly clean and re-lubricate .

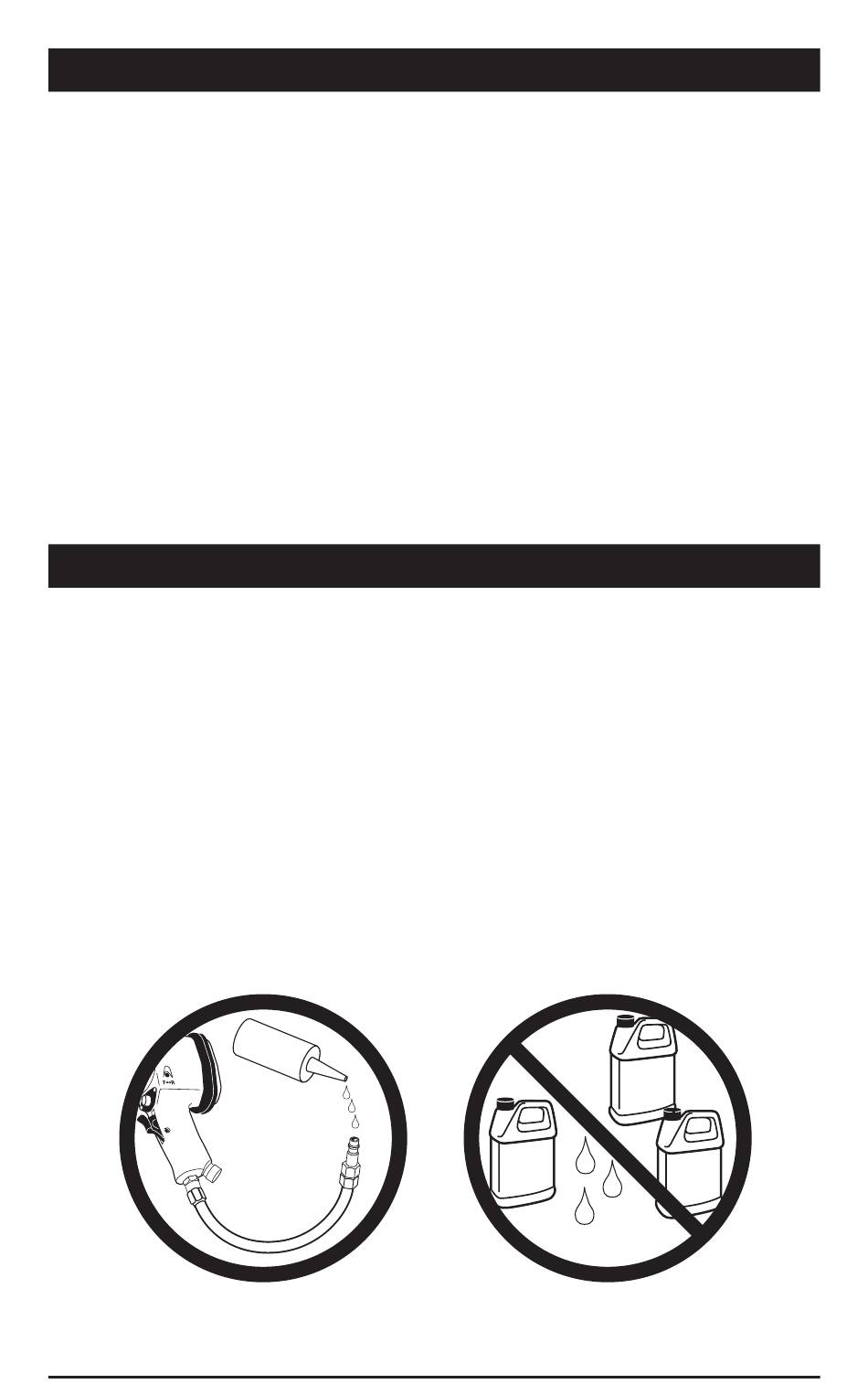

Air Tool
Oil
Whip
hose
Yes
T r a n s .
F l u i d
M o t o r
O i l
Water
No
B r a k e
F l u i d
5
