Performance Tool M561 Owner's Manual

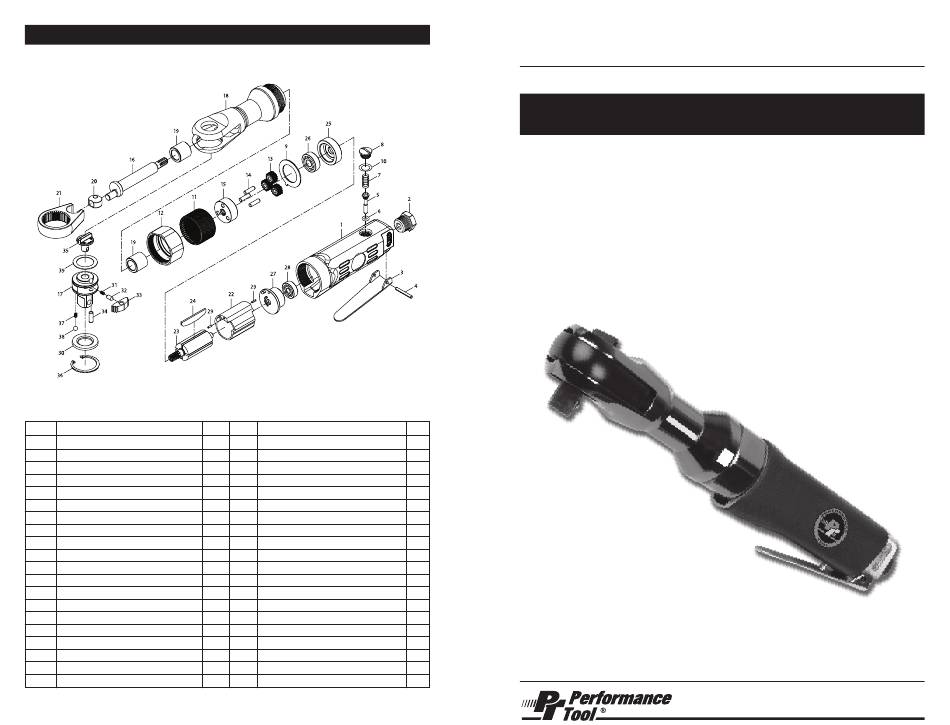

PARTS LIST

INDEX DESCRIPTION QTY INDEX DESCRIPTION
1 Housing
2 Housing Adaptor
3 Trigger
4 Trigger pin
5 Pin
6 O-ring
7 Sprin
8 Copper head
9 Washer
10 O-ring
11 Gear ring
12 Clamp nut
13 Gear
14 Gear pin
15 Idler gear plate
16 Crank shaft
17 Ratchet anvil
18 Ratchet housing
19 Anvil bushing
20 Drive bushing
P.O. Box 88259 Tukwila, WA 98138 • 1-800-497-0552 • www.wilmarcorp.com • Made in China • © Copyright 2010
1 21 Ratchet yoke
1 22 Cylinder
1 23 Rotor
1 24 Rotor blade
1 25 Front plate
1 26 Front bearing
1 27 Read plate
1 28 Read bearing
1 29 Cylinder pin
1 30 Thrust washer
1 31 Spring
4 32 Pin
3 33 Ratchet pawl
3 34 Ratchet pin
1 35 Reverse button
1 36 O-ring
1 37 Spring
1 38 Steel ball
2 39 Washer
1

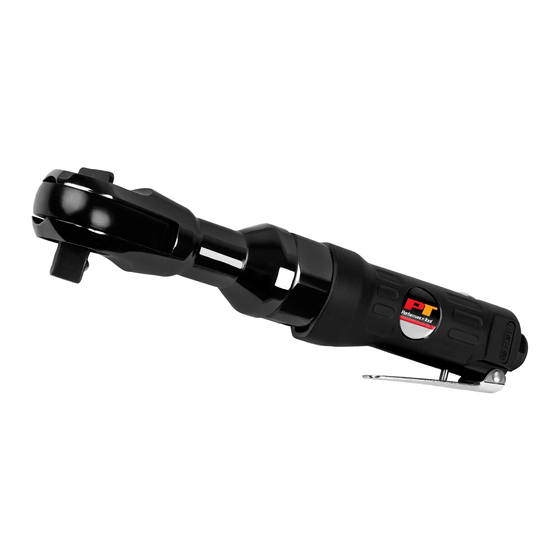

1/2" Dr. Air Ratchet
Stock Number M561

SPECIFICATIONS:

Square Drive (IN.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2
Working torque (FT./LBS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-50
Air pressure (P.S.I.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Average air consumption (C.F.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Free speed (R.P.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Bolt capacity (IN.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2
Air inlet (N.P.T.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4
Hose size (I.D.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8 in.
Weight (LBS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.65
Specifications are subject to change without notice.
QTY
2
1
1
4
1
1
1
1
2
1
1
1
1
WARNING!
2
1
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
1
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO
2
MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE
2
AND WILL VOID WARRANTY.
1
OWNER'S MANUAL
