Performance Tool M552DB Owner's Manual

PARTS LIST

INDEX DESCRIPTION QTY INDEX DESCRIPTION
1 Housing
2 Trigger
3 Trigger Pin
4 Air Inlet
5 O-Ring
6 Valve Stem
7 Spring
8 O-Ring
9 Screw Knob
10 Bearing
11 Rear Plate
12 Blade
13 motor
14 Pin
15 Cylinder
16 Front plate
17 Bearing
18 Washer
19 Gear Ring
1 20 Idle Gear
1 21 Gear Pin
1 22 Gear Plate
1 23 Clamp Nut
1
24 Retainer
1 25 Bearing
1 26 Washer
1
27 Crank Shaft
1 28 Driving Bushing
1 29 Screw Knob
1 30 Bushing
4 31 Nibble Head
1 32 Slide Rod
2 33 Cutter
1
34 Set Screw
1 35 Clamp Nut
1 36 Cutter Die
37 O-ring
1
1 38 Cutter

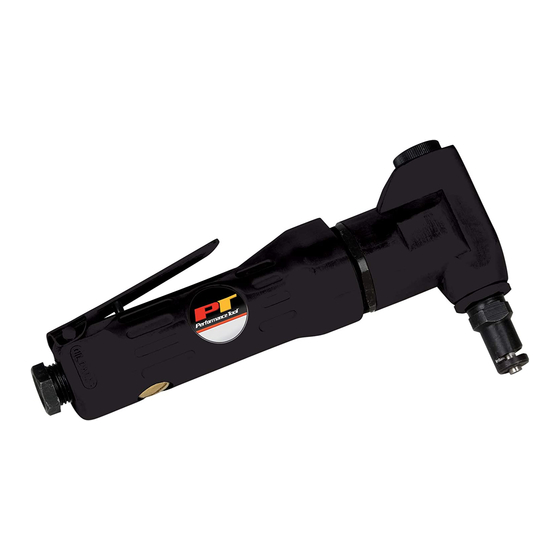

AIR NIBBLER
Stock Number M552DB

SPECIFICATIONS:

Air pressure (P.S.I.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Average air consumption (C.F.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Free speed (R.P.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,500
Air inlet (N.P.T.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4
Hose size (I.D.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8 in.
Length (IN.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6
Weight (LBS.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0
Specifications are subject to change without notice.
QTY
3
3
1
1
1
2
1
1
1
1
1
1
1
WARNING!
1
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
1
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO
1
MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE
1
1
AND WILL VOID WARRANTY.
2
OWNER'S MANUAL
