Instruction and
Assembly Manual

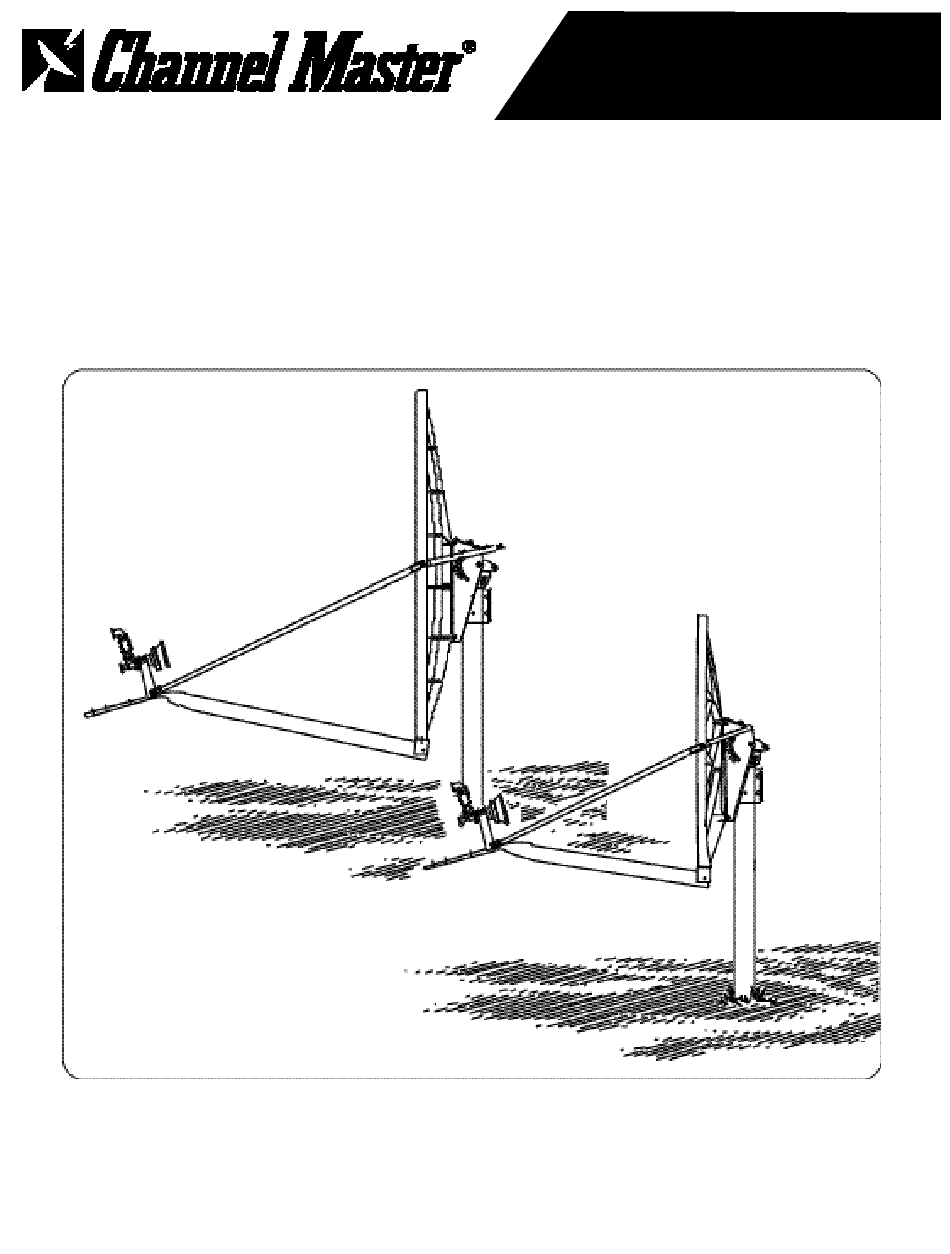

Type 960 Class I & II .96m Antenna System
Type 123 Class I & II 1.2m LFL Antenna System
Factory Assembled Az/El Cap Mount
US Sales Office • 1315 Industrial Park Drive, Smithfield, NC 27577 USA • Telephone:(919) 989-2205 • Fax:(919) 989-2200
Germany Sales Office • Julius-Moser-Str. 13, 75179 Pforzheim, Germany • Telephone: +49 (0) 7231-14557-0 • Fax:+49 (0) 7231-14557-10
©2001 Channel Master LLC
ECN 9000000 P/N 8000842 8/01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 960 I and is the answer not in the manual?

Questions and answers

Summary of Contents for Channel Master 960 I

  • Page 1 US Sales Office • 1315 Industrial Park Drive, Smithfield, NC 27577 USA • Telephone:(919) 989-2205 • Fax:(919) 989-2200 Germany Sales Office • Julius-Moser-Str. 13, 75179 Pforzheim, Germany • Telephone: +49 (0) 7231-14557-0 • Fax:+49 (0) 7231-14557-10 ©2001 Channel Master LLC ECN 9000000 P/N 8000842 8/01...
  • Page 2 WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PA RTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THIS WA R R A N T Y. CHANNEL MASTER DOES NOT AUTHORIZE ANY PERSON TO ASSUME FOR IT THE OBLIGATIONS CONTAINED IN THIS WARRANTY AND CHANNEL MASTER NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT DELIVERED OR PROV I D E D.
  • Page 3: Site Selection

    The owner and installer assumes full responsibility that the installation is structurally sound to support all loads (weight, wind & ice) and properly sealed against leaks. Channel Master will not accept liability for any damage caused by a satellite system due to the many unknown variable applications.
  • Page 4 GROUND POLE INSTALLATION (96cm System) DEEP FROST STANDARD PIER FOUNDATION LINE FOUNDATION PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS Exposure “B” Exposure “C” Exposure “B” Exposure “C” GROUND ANT WIND VEL. DIM “d” CONC VOL. DIM “d” CONC VOL. DIM “d’ CONC VOL.
  • Page 5 GROUND POLE INSTALLATION (1.2m System) PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS Exposure “B” Exposure “C” Exposure “B” Exposure “C” GROUND WIND VEL. DIM “d” CONC VOL. DIM “d” CONC VOL. DIM “d’ CONC VOL. DIM “d” CONC VOL. POLE 80 MPH 8”...
  • Page 6: Assembly And Installation

    ASSEMBLY AND INSTALLATION INSTALLING AZ/EL CAP MOUNT ONTO POLE The AZ/EL Cap is factory preassembled, therefore, no assembly is required. Before installing AZ/EL Cap onto ground pole, a concrete foundation should be in place and cured. MODEL 611612001 (Fine Tune Option) Loosen (8) Carriage Bolts and nuts securing the “U”...
  • Page 7 ASSEMBLY AND INSTALLATION FEED AND FEED LEG INSTALLATION NOTE: Long formed end of Side Feed Leg attaches to the Reflector rim, short formed to side of Feed Support Terminal. Assemble Bottom Feed Leg to bottom of Reflector rim. From the inside of Reflector rim, insert M6 x 16mm Hex Bolt thru hole in rim and attach Bottom Feed Leg.Secure with Lock Washer and Hex Nut.
  • Page 8 ASSEMBLY AND INSTALLATION 1.2m System (Ref. Fig. 1.6) Attach Side Feed Legs and Braces to left and right sides of Reflector using M6 x 20mm Hex Bolts, Lock Washers and Hex Nuts. (NOTE: Long formed end of Feed Leg attaches to Reflector. Short formed end of Brace attaches to inside of Reflector rim.) Attach flat- ten end of Brace to Extension Plate, using M6 x 22mm Round Head, Square Neck Bolts, Tooth Lock...
  • Page 9: Antenna Alignment Procedure

    ANTENNA ALIGNMENT PROCEDURE Alignment with the satellite is obtained by setting polariza- tion, elevation and azimuth.Charts 1, 2 & 3 are to determine these values for your earth station antenna site. “∆L” is the difference between the earth station antenna site longitude and the satellite longitude.
  • Page 14: Parts List

    PARTS LIST QTY. QTY. DESCRIPTION 96cm 1.2m DESCRIPTION 96cm 1.2m WASHER, FLAT, SS, ¹⁄₄ (Medium Duty) BOLT, PLOW, SPECIAL, M8 x 1.25 x 2.21 BOLT, PLOW, SPECIAL, M8 x 1.25 x 3.56 MOUNT ASSEMBLY, 1.2m LFL (Light Duty) REFLECTOR, .96m NUT, M6 x 1.0, ESNA REFLECTOR, 1.2m LFL “U”CUP, BOOM...
  • Page 15 HARDWARE SORTER...
