Channel Master 4221 Instruction Sheet

WARNING: Installation of this product near power lines is DANGEROUS.

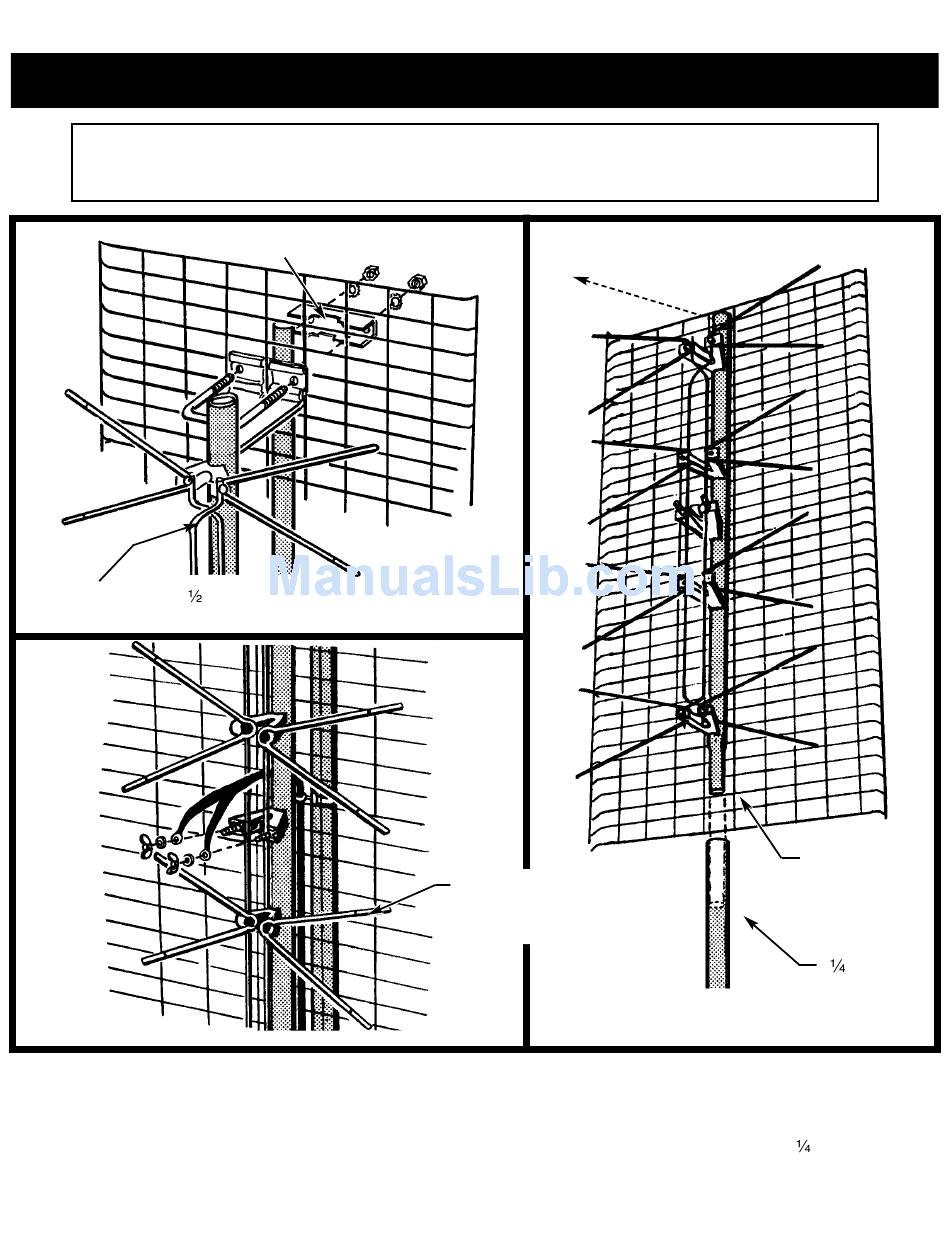

FIG. A
NOTE: A space of
between wires at crossover points.
FIG. B
STEP 1
Attach antenna to mast using square U-bolts and mast clamps as shown. See FIG. A.
STEP 2
Secure transmission line to tap-off points with washers and wing nuts as shown and run
transmission line down mast. See FIG. B.
ALTERNATE MOUNTING METHOD: Insert swaged end of antenna crossarm into 1 " mast.
Face antenna in proper direction, tap down on top of crossarm to secure into mast.
See FIG. C.
NOTE: For translator stations (Channels 70-83), break off ends of dipoles (indicated by notch)
approximately 1" from each end. See FIG.B.
P/N 51022
MULTI-BAY ANTENNA
INSTRUCTION SHEET
For your safety, read the enclosed "DANGER" booklet before
beginning your installation.
MAST CLAMP
" should be maintained
TO TRANSMITTING
BREAK-OFF NOTCH
FOR TRANSLATOR
STATIONS ONLY
FIG. C
STATION
CROSSARM
1 " MAST
Printed in U.S.A. 4221A & 3021 Rev. D
