Channel Master 2016 Features And Benefits

OUTDOOR ANTENNA
HDTV, VHF High Band and UHF
Get the Cl e arest Picture and Sound

APPLICATION

The Channel Master 2016 is a compact outdoor TV antenna that
is engineered to receive high quality digital/HDTV broadcast over
channels 7 to 51. Since most broadcasts after the February 2009
analog shutoff will be made on channels 7 to 51, stations that the
2016 is perfectly suited. Oversized antennas will be needed for low
band channels 2 to 6.
FEATURES & BENEFITS
• Offers optimum reception for today's digital reception and beyond the
February 2009 analog shutoff
• Quality design from a brand you trust
• Compact size

DIMENSIONS

Reception Range
Channels 7 thru 69,
HD, UHF/VHF HIGH Up to 35 miles
Antenna Size
(L x W x H) 36.5 x 47 x 22 in (92.7 x 119.4 x 55.9 cm)
Turning Radius 34 in
Number of Elements 22
CEA Classification MD
Matching Transformer
Included 75 Ohm

CHANNEL BEAMWIDTH

CHANNEL GAIN BEAMWIDTH, F/B
7 2 MULTI-DIRECTIONAL
9 0 MULTI-DIRECTIONAL
11 2 MULTI-DIRECTIONAL
13 2 MULTI-DIRECTIONAL
14 5.5 60 deg, 17 db
19 6.5 68 deg, 11 db
27 6.3 27 deg, 12 db
35 8.1 19 deg, 11 db
43 8.9 41 deg, 9 db
52 9.2 41 deg, 12 db
60 9.5 37 deg, 13 db
BEAMWIDTH IN DEGREES AT 3db DOWN POINTS
F/B = FRONT TO BACK RATIO IN dB
www.channelmasterintl.com
2151 E Broadway Road, Ste 211 | Tempe, AZ 85282-1933 | USA | Tel +1.480.813.0925 | Fax +1.480.545.1080
© 2008 Channel Master by PCT, a division of PCT International, Inc. The Channel Master logo is used under licensed agreement.
Specifications subject to change without notice. All rights reserved. 2008.05
™
Suburban/Metro TV Reception
Get Free
HIGH - DEF INITI O N T EL EV I SI O N
C O M P A T I B L E
Without Monthly Fees
Call
+1.800.306.8948
for more information

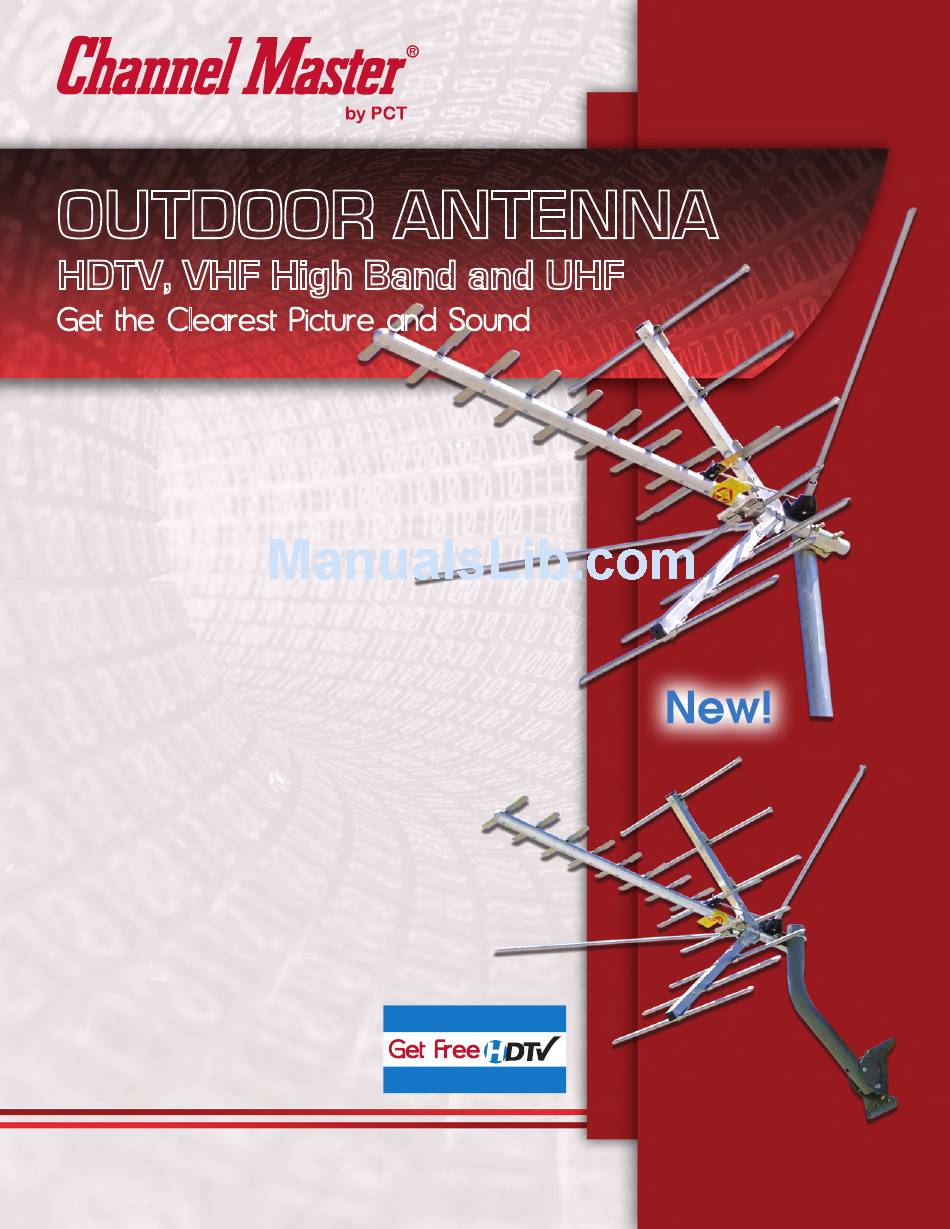

Model 2016
Traditional
Mounting
Satellite Style
Universal
Mounting
Visit antennaweb.org
to maximize
your antenna reception.
