Apollo 55100-001 Manual

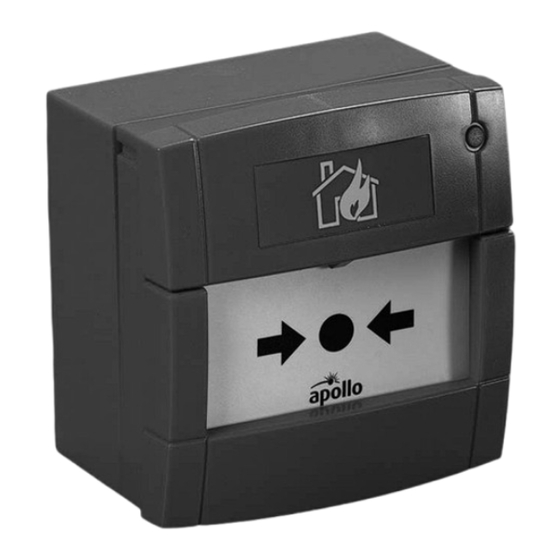

Conventional Manual Call Point
FUNCTION
The Conventional Manual Call Point has been
designed to operate on conventional fire detection
systems.
The Manual Call Point is available in two versions,
indoor and outdoor in either red or yellow.
FEATURES
The Manual Call Point has an easily resettable
element rather than a break glass. The call point is
supplied with a backbox for surface mounting.
It also features a unique 'Plug and Play' installation
concept designed specifically to reduce installation
time. The call point utilises a terminal block, where
all installation cabling is terminated.
The red Manual Call Point is approved to EN54-11
standard.
MECHANICAL CONSTRUCTION
The component parts of the call point are
moulded in polycarbonate or ABS, depending on
their function.
DIMENSIONS AND WEIGHT
Indoor 93mm x 89mm x 59.5mm
Outdoor 93mm x 97.5mm x 71mm
OPERATING PRINCIPLES
The Manual Call Point consists of a 470Ω resistor in
series with a normally open switch contact.
MANAGEMENT
SYSTEMS
www.acornfiresecurity.com
Part numbers: 55100-001 (Indoor - Red)
The Manual Call Point helps reduce installation
time as all the initial installation cabling is wired to
a terminal block which connects neatly to the call
point.
Once activated, the manual call point can be reset
180g
by inserting the test key into the bottom of the unit
350g
until the key clicks into position. Remove the test
key and push the front cover up until it clicks home.
EMC DIRECTIVE 2004/108/EC
The Manual Call Point complies with the essential
requirements of the EMC Directive 2004/108/EC,
provided that it is used as described in this PIN sheet.
www.acornfiresecurity.com
PP2417/2011/Issue 1
55100-002 (Indoor - Yellow)
55100-003 (Outdoor - Red)
55100-004 (Outdoor - Yellow)
