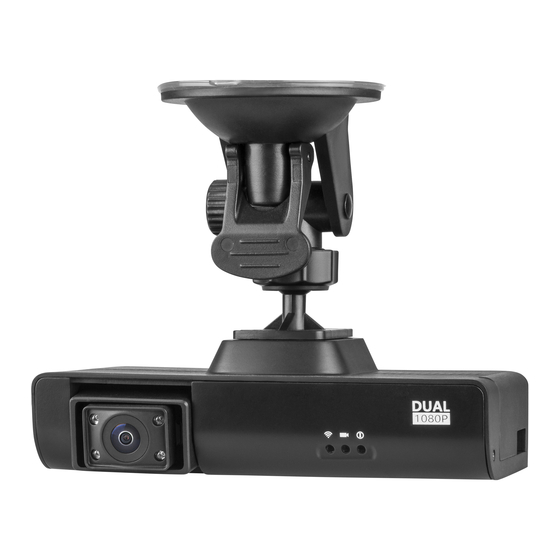

VIA Technologies Mobile360 D700 Quick Start Manual

Hide thumbs Also See for Mobile360 D700:
Table of Contents

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
VIA Mobile360 D700
EVK
1.12-06052022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile360 D700 and is the answer not in the manual?

Questions and answers

Related Manuals for VIA Technologies Mobile360 D700

Summary of Contents for VIA Technologies Mobile360 D700

  • Page 1 QUICK START GUIDE VIA Mobile360 D700 1.12-06052022...
  • Page 2 Disclaimer VIA Technologies makes no warranties, implied or otherwise, in regard to this document and to the products described in this document. The information provided in this document is believed to be accurate and reliable as of the publication date of this document. However, VIA Technologies assumes no responsibility for the use or misuse of the information (including use or connection of extra device/equipment/add-on card) in this document and for any patent infringements that may arise from the use of this document.
  • Page 3 Updated guide to include ADAS Pattern calibration and new DSS calibration process 1.08 04/02/2021 Updated Guide to include VIA Mobile360 D700 specific instructions for setting up the VIA Fleet Cloud Management Portal 1.07 03/11/2020 Updated Guide FCW sensitivity level descriptions 1.06...

  • Page 4: Table Of Contents

    VIA Mobile360 D700 EVK Quick Start Guide Table of Contents VIA Mobile360 D700 Introduction ............................................ 1 EVK Package Content .............................................. 1 1.1.1 Document Folder Content ..........................................1 1.1.2 Firmware Folder Content ..........................................1 Upgrade Firmware Using SD Card ............................................ 2 System Status LEDs ..............................................

  • Page 5: Via Mobile360 D700 Introduction

    1. VIA Mobile360 D700 Introduction This Quick Start Guide provides instructions on how to boot from the Linux EVK system image on the VIA Mobile360 D700 AI Dash Cam system and configure the supported hardware functions in the build. It also provides explicit instructions on how to setup and use the VIA Mobile360 D700 device with the VIA Fleet Cloud Management portal for the included 30 day free trial period.

  • Page 6: Upgrade Firmware Using Sd Card

    3. When the upgrade process is completed, the system will automatically restart. While the system is booting the red, yellow, and green LEDs will flash once per second. 4. Once the system boot has completed, the status LEDs will change according to the recording status of the VIA Mobile360 D700 AI Dash Cam. This also indicates that...

  • Page 7: System Status Leds

    VIA Mobile360 D700 EVK Quick Start Guide 2.1 System Status LEDs The VIA Mobile360 D700 device comes with three LED indicators located on the rear panel to show system status for various situations. The LED indicator states are shown in the image below.

  • Page 8: Via Fleet Cloud Management Portal

    Also included is 50 hours of live streaming with Amazon KVS. Please refer to the VIA Fleet Cloud Management Portal Quick Start Guide for complete instructions to log in and set up the free trial period for a VIA Mobile360 D700 AI Dash Cam.
  • Page 9 - Used to identify the vehicle throughout the VIA Fleet Cloud Management Portal. • Plate Number - The license plate number of the vehicle the VIA Mobile360 D700 device is installed in. • Fleet - Select the “Fleet” created in step 3 of section 1.3.1 in the VIA Fleet Cloud Management Portal Quick Start Guide.
  • Page 10 VIA Mobile360 D700 EVK Quick Start Guide − Vehicle License - Image of the vehicle registration document (not mandatory). − Permitted Drivers - Drivers must be created before adding permitted drivers for the vehicle. • AI Features − Alert Language:...
  • Page 11 VIA Mobile360 D700 EVK Quick Start Guide Note: Values in “Driver's Seat”, "Vehicle Width" and "Hood Length" fields are required for LDW, FCW and DSS AI features to work correctly. 5. Click “Save” to register the vehicle.

  • Page 12: Via Mobile360 D700 Device Registration

    3.2 VIA Mobile360 D700 Device Registration Before registering a VIA Mobile360 D700 device to the vehicle created in the section above, install the device in the vehicle. It is recommended to use the OBD II and ACC connector to get all vehicle and trip information. A 4G SIM card is also required to be installed. Refer the VIA Mobile360 D700 User Manual for complete instructions.
  • Page 13 VIA Mobile360 D700 EVK Quick Start Guide 2. After installation is complete, launch the app. 3. Select “Me” from the bottom row of icons in the app. 4. Select “VIA Fleet Login”. 5. Input the same Username and Password provided for the VIA Fleet Cloud Management Portal to login and tap on “OK”.
  • Page 14 11. Tap on “OK” on the pop-up notification to return to the vehicle list where it will show “Registered” beside the vehicle name. Note: If the QR code is not successfully scanned within the 60-second window, the VIA Mobile360 D700 device will play the audio notification “Registration Failed”. If this occurs, reboot the system and start over.
  • Page 15 - A green check mark indicates that the vehicle has a device bound with it. To unregister the device, click on the “Unregister” button displayed. • SIM Card - Displays the SIM card number installed in the VIA Mobile360 D700 device. AI Features - Displays the available AI features and calibration status: •...
  • Page 16 VIA Mobile360 D700 EVK Quick Start Guide The image above represents the new fields added for a VIA Mobile360 D700 AI dash cam. Note: To register more devices, repeat steps in sections 1.3.1 and 1.3.2 of the VIA Fleet Cloud Management Portal Quick Start Guide.

  • Page 17: Adas And Dss Ai Features

    Warning "Stop smoking” ü ü Before an AI feature can be used on a VIA Mobile360 D700 device in the VIA Fleet Cloud Management Portal, the corresponding calibration process must be completed through the VIA Mobile360 App. • ADAS Calibration - Calibrates the device to ensure accurate LDW and FCW event detections •...

  • Page 18: Installation With Ai Features

    • It is recommended to connect the VIA Mobile360 D700 device to the OBD II port in the vehicle to be able to get the real vehicle speed. This is a critical input to determine the TTC (Time to Collision) for the FCW warning.
  • Page 19 To calibrate the device for the ADAS and DSS features, the VIA Mobile360 app must be connected to the target VIA Mobile360 D700 device. Open the VIA Mobile360 app on your mobile device and follow the prompts to connect to the VIA Mobile360 D700 device over Wi-Fi. The VIA Mobile360 D700 device's Wi- Fi SSID is named “VIA Mobile360_XXX”...

  • Page 20: Adas Calibration

    3.3.2 ADAS Calibration ADAS Calibration is a simple process required to calibrate the VIA Mobile360 D700 device for both FCW and LDW AI features. 1. Begin the calibration process by tapping on the red ADAS calibration icon on the left-hand side of the “Live” tab in the VIA Mobile360 app.
  • Page 21 VIA Mobile360 D700 EVK Quick Start Guide 3. A live preview of the front ADAS camera with a red bar overlay will be displayed which represents the acceptable region the horizon must be in. The red line inside the bar is the horizontal centerline of the camera. Adjust the camera angle so that the red line overlays the horizon line as close as possible.

  • Page 22: Dss Calibration

    Note: After ADAS calibration, the VIA Mobile360 D700 device will automatically run background ADAS calibration checks and improve the calibration when the vehicle is driven at a speed of at least 30 km/hr on every trip.
  • Page 23 VIA Mobile360 D700 EVK Quick Start Guide 3. Once the camera is positioned correctly, tap on "OK" to complete the calibration process. The VIA Mobile360 app will return to the “Live” tab. The DSS icon will now be green, confirming the calibration has been completed.
  • Page 24 After completion of the ADAS and DSS calibration, go back to the VIA Fleet Cloud Management Portal and select the vehicle. The ADAS and DSS calibration fields will show a green check mark indicating that the calibration has been completed for the device. ADAS and DSS AI features can now be used on the VIA Mobile360 D700 device if they...

  • Page 25: Device Settings

    VIA Mobile360 D700 EVK Quick Start Guide 3.4 Device Settings The “System Settings” page allows universal settings to be configured for all VIA Mobile360 Series devices registered to an account in the VIA Fleet Cloud Management Portal.
  • Page 26 After making changes, click “Save”. Note: When the VIA Mobile360 D700 connects to the VIA Fleet Cloud Management Portal, System Settings on cloud will override the local default settings or settings changed using the VIA Mobile360 app. *Collision, Parking and Driver Alert videos will always include audio.

  • Page 27: Via Mobile360 App

    VIA Mobile360 D700 EVK Quick Start Guide 4. VIA Mobile360 App The VIA Mobile360 app for iOS and Android can be used to connect to a VIA Mobile360 D700 device to view live streaming, recorded trip videos and data on the system through a Wi-Fi connection.

  • Page 28: Connecting To Via Mobile360 D700

    4.1 Connecting to VIA Mobile360 D700 Once the VIA Mobile360 app has been installed on a mobile device, open the app and follow the prompts to connect to the VIA Mobile360 D700 device over Wi-Fi. The VIA Mobile360 D700 device's Wi-Fi SSID is named “VIA Mobile360_XXX” and can be found in the phone’s available Wi-Fi connections once the VIA Mobile360 D700 device has booted.

  • Page 29: App Menu

    - Statistics about the driving status of the vehicle during the trip. • Album - View the videos saved to the MicroSD card in the VIA Mobile360 D700 device and download the videos to the connected mobile phone. • - Change map, VIA Fleet login and about VIA Mobile360 app.

  • Page 30: Live

    VIA Mobile360 D700 EVK Quick Start Guide 4.3 Live The “Live” interface of the VIA Mobile360 app allows real-time viewing of either camera as well as tracking of the GPS positioning on the map below the live stream. Users can also initiate the calibration processes for the ADAS and DSS AI features. The “Live” interface is described below.

  • Page 31: Device Settings

    VIA Mobile360 D700 EVK Quick Start Guide 4.3.1 Device Settings Tap on “Device Settings” button in the “Live” interface to configure the various VIA Mobile360 D700 device parameters as described below: Trip: • Units - Change the units displayed in the app between metric, Imperial and US customary.
  • Page 32 - Refer to the user manual of the vehicle to insert the correct engine displacement value. AI Features: After completion of ADAS and DSS calibration on the VIA Mobile360 D700 device, ADAS and DSS functions and alerts can be enabled or disabled.
  • Page 33 VIA Mobile360 D700 EVK Quick Start Guide G-Sensor Sensitivities: Move sliders to set G-Sensor sensitivity to low, medium or high for detecting hard braking, hard cornering and hard revving. There are multiple sensitivity levels between high to low, where “High” makes it easier to detect hard braking, hard cornering or hard revving, while “Low”...

  • Page 34: Trips

    Tap on “Download” to download the trip to the connected mobile device to view when begins to record a trip. The recording not connected to the VIA Mobile360 D700 device. of the trip only ends when the device is turned off. The “Trips” interface allows Tap on the trip to enter the trip details screen.

  • Page 35: Stats

    VIA Mobile360 D700 EVK Quick Start Guide 4.5 Stats The “Stats” interface can query the trip statistics for a selected day or an interval of time. Total stats for all trips during the selected interval will be displayed followed by each trip included in the period.

  • Page 36: Album

    VIA Mobile360 D700 EVK Quick Start Guide 4.6 Album From the “Album” tab, users can playback or download videos stored on the MicroSD card, including Trip, and Alert (including Collision, parking and driver alerts) videos. • Trip - Trip videos are recorded as 3-minute video files. When the MicroSD card runs out of space, the device will automatically delete the oldest video file and record in a cyclic manner.
  • Page 37 VIA Mobile360 D700 EVK Quick Start Guide To delete videos from the Local tab, long press on a video then a blue check mark will appear in the bottom left-hand corner of the video. Tap “ ” in the bottom left-hand corner of the screen to select all videos or individually tap on videos to add to the delete group.
  • Page 38 VIA Mobile360 D700 EVK Quick Start Guide 4.7 Me The “Me” tab allows changing of map service between Google or Baidu, logging in to access VIA Fleet Cloud Management QR codes and checking of current app version. The “Me” interface is shown as below.
  • Page 39 Taiwan Headquarters Taiwan Headquarters Japan Japan China China 1F, 531 Zhong-zheng Road, 940 Mission Court 3-15-7 Ebisu MT Bldg. 6F, Tsinghua Science Park Bldg. 7 Xindian Dist., New Taipei City 231 Fremont, CA 94539, Higashi, Shibuya-ku No. 1 Zongguancun East Road, Taiwan Tokyo 150-0011 Haidian Dist., Beijing, 100084...
