QUICK START GUIDE

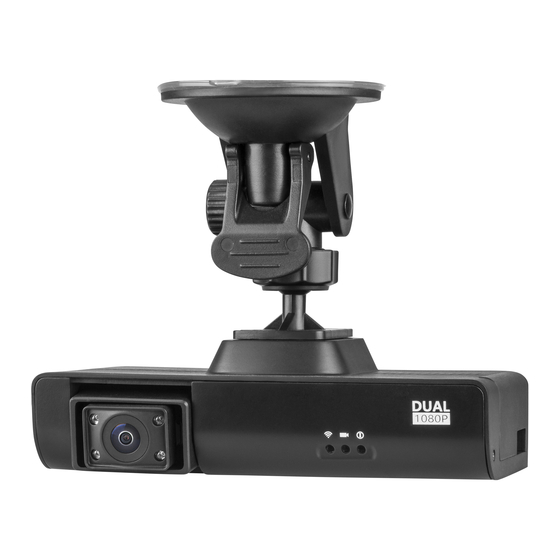

VIA Mobile360 D700
EVK
1.02-18052020-110700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile360 D700 and is the answer not in the manual?

Questions and answers

Related Manuals for VIA Technologies Mobile360 D700

Summary of Contents for VIA Technologies Mobile360 D700

  • Page 1 QUICK START GUIDE VIA Mobile360 D700 1.02-18052020-110700...
  • Page 2 C o p y r i g h t C o p y r i g h t © 2020 V I A T e ch n o l o g i e s I n co r p o r a t e d . A l l r i g h t s r e s e r v e d . o art o this oc ent a e re ro ce trans i e transcri e store in a retrie al s ste...
  • Page 3 VIA Mobile360 D700 EVK Quick Start Guide Revision History Version Date Remarks 1.02 05/18/2020 Update AI features and 2-way call settings description 1.01 04/17/2020 Update “Alert Recording Duration” setting description 1.00 03/31/2020 Initial release...

  • Page 4: Table Of Contents

    VIA Mobile360 D700 EVK Quick Start Guide Table of Contents 1. VIA Mobile360 D700 Introduction ����������������������������������������������������������������������������������������������������������������������������������������������������������������������� 1 1�1 EVK Package Content ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 1 1�1�1 Document Folder Content ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 1 1�1�2 Firmware Folder Content ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 1 2� Upgrade Firmware Using SD Card ������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 2 2�1...
  • Page 5 VIA Mobile360 D700 EVK Quick Start Guide 3.10.3 Deleting and Editing Fleets and Vehicles ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 43 3�10�4 Drivers �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 44 4� VIA Mobile360 App �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 45 4.1 Connecting to VIA Mobile360 D700 ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 45 4�2 App Menu ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 46 4�3 Live ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 47 4.3.1 Device Settings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 48 4�4 Trips ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 50 4�5...

  • Page 6: Via Mobile360 D700 Introduction

    VIA Mobile360 D700 EVK Quick Start Guide 1� VIA Mobile360 D700 Introduction This Quick Start Guide provides instructions on how to boot from the Linux EVK system image on the VIA Mobile360 D700 AI Dash Cam system and configure the supported hardware functions in the build. 1�1 EVK Package Content There are two folders in the package listed as below. Document folder Description VIA_ Mobile360_D700_EVK_Quick_Start_Guide.pdf Quick Start Guide VIA_Software_License_Agreement.txt VIA Software License Agreement Firmware folder Description VIA_Mobile360_D700_EVK_firmware.zip Linux EVK system image 1�1�1 Document Folder Content VIA_Mobile360_D700_EVK_Quick_Start_Guide.pdf: This document provides instructions on how to boot from the Linux EVK system image on the VIA Mobile360 D700 AI Dash Cam system and configure the supported hardware functions in the build including connecting with the VIA Fleet Cloud Management Portal. VIA_Software_License_Agreement.txt: Receiving this package indicates your acceptance of the terms detailed in the VIA Software License Agreement. If you do not agree with any of the terms and conditions do not continue to use the software included. 1�1�2 Firmware Folder Content VIA_Mobile360_D700_EVK_firmware.zip: This VIA_Mobile360_D700_EVK_firmware.zip file includes the EVK firmware FW.bin file, the MCU processor MCU.bin file and the...

  • Page 7: 2� Upgrade Firmware Using Sd Card

    VIA Mobile360 D700 EVK Quick Start Guide 2� Upgrade Firmware Using SD Card To upgrade the firmware using an MicroSD card, please follow the steps listed below: 1� Format the MicroSD Card using the exFAT file system, then extract and copy the FW.bin, MCU.bin and ota_config.ini files from the VIA_Mobile360_D700_EVK_ firmware.zip file to the MicroSD Card. Insert the MicroSD Card into the MicroSD slot of the VIA Mobile360 D700 AI Dash Cam. 2� Once powered on, the VIA Mobile360 D700 AI Dash Cam will automatically start upgrading the system and MCU firmware. Note: During the upgrade process, the Red LED will flash twice per second, the Yellow LED will be off, and the Green LED will remain on. 3� When the upgrade process is completed, the system will automatically restart. While the system is booting the red, yellow, and green LEDs will flash once per second� 4� Once the system boot has completed, the status LEDs will change according to the recording status of the VIA Mobile360 D700 AI Dash Cam. This also indicates that the firmware upgrade process has completed.

  • Page 8: Led Status

    VIA Mobile360 D700 EVK Quick Start Guide 2�1 LED Status The VIA Mobile360 D700 comes with three LED indicators located on the rear panel to show system status for various situations. The LED indicator states are shown in the image below� • Device Boot Up - All three LEDs flashing at 1Hz • Recording - Solid green LED • SD Error - Red and yellow LEDs flashing at 1Hz • Hotspot Startup - Yellow LED flashing at 1Hz and solid green LED • Recording Error - Solid red and yellow LEDs • Mic Error - Red LED flashing at 1Hz and solid green LED •...

  • Page 9: 3� Via Fleet Cloud Management Portal

    VIA Mobile360 D700 EVK Quick Start Guide 3� VIA Fleet Cloud Management Portal VIA Fleet Cloud Management Portal is VIA’s web-based application built on AWS IoT Core and AWS KVS, which allows customers to quickly evaluate VIA Mobile360 D700 AI Dash Cams. Each sample device comes with a 30-day trial period of the VIA Fleet Cloud Management for customers to evaluate the VIA Mobile360 D700 including real-time tracking, collision alerts with video upload, trip history and fleet statistics. Also included is 50 hours of live streaming with Amazon KVS. 3�1 System Prerequisites Hardware Prerequisites Software Prerequisites 1) PC or Notepad with a screen resolution of 1366px x 768px or above 1) Windows/Linux/Mac OS 2) VIA Mobile360 D700 device 2) Browsers supported: • Firefox 21 and above • Chrome 23 and above • Edge 12 and above •...

  • Page 10: 3�2�2 Via Fleet Overview

    VIA Mobile360 D700 EVK Quick Start Guide 3�2�2 VIA Fleet Overview The main menu of the VIA Fleet Cloud Management Portal is located on the left-hand side of the webpage and includes links to 4 sections which include: • Live Tracking - Real-time monitoring of vehicles on and off road • Dashboard - Statistical summary for fleets, vehicle, and drivers • Trip History - Allows to search by driver history or Alert history • Management - Includes sections to manage vehicles and drivers...

  • Page 11: Setting Up The Test Environment

    VIA Mobile360 D700 EVK Quick Start Guide The menu can be expanded or collapsed by clicking on the hamburger menu in the top bar. 3�3 Setting Up the Test Environment To evaluate the VIA Mobile360 D700 platform with AWS IoT Core and KVS features, the device must first be registered to the VIA Fleet Cloud Management Portal. 3�3�1 VIA Fleet Vehicle Registration Follow these steps to register a new vehicle in the VIA Fleet Cloud Management Portal. 1� From the left-hand menu select “Management -> Vehicles”. 2� On the “Vehicles” management page select “Add Fleet” in the top bar of the page to create a new fleet group. 3� Fill in the required information including: • Fleet Name - Unique name for a group of vehicles. • Description - A short description for the group. • Color - Select a unique color to identify the group in the VIA Fleet Cloud Management Portal.
  • Page 12 VIA Mobile360 D700 EVK Quick Start Guide 4� Click “Save” to add the new fleet group. 5� After clicking “Save” the program will return to the “Management -> Vehicles” page. From the top menu bar select “Add Vehicle” to register a new vehicle to the new fleet group created. 6� Fill in the information for the new vehicle including: • Vehicle Name - Used to identify the vehicle throughout the VIA Fleet Cloud Management Portal. • Plate Number - The license plate number of the vehicle the VIA Mobile360 D700 device is installed in. • Fleet - Select the “Fleet” created in step 3.
  • Page 13 VIA Mobile360 D700 EVK Quick Start Guide • Model - Car model (not mandatory)� • Fuel Tank Capacity - Required to calculate total fuel and idle time fuel consumption for each trip. Refer to the owner’s manual of the vehicle the VIA Mobile360 D700 device is installed in� • Fuel Type - Fuel octane grade required by vehicle (not mandatory). • Vehicle Weight - There are three default ranges to choose from “Under 1.8T”, “1.8T-3.5T” or “Over 3.5T” (Metric units shown) which help increase the accuracy of the g-sensor sensitivity for collision alerts, driver score and fuel tank consumption. • Displacement - The engine displacement value is required to calculate idle time fuel consumption. Refer to the owner’s manual of the vehicle the VIA Mobile360 D700 device is installed in� •...
  • Page 14 VIA Mobile360 D700 EVK Quick Start Guide 7� Click “Save” to register the vehicle. 8� After clicking “Save” the program will return to the “Management -> Vehicles” page. Click on the Fleet name and it will expand to show the vehicle has been added to the fleet.

  • Page 15: Via Mobile360 D700 Device Registration

    VIA Mobile360 D700 EVK Quick Start Guide 3�3�2 VIA Mobile360 D700 Device Registration Before registering a VIA Mobile360 D700 device to the vehicle created in the section above, install the device in the vehicle. It is recommended to use the OBD II and ACC connector to be able to get all vehicle and trip information. A 4G SIM card is also required to be installed. Refer the VIA Mobile360 D700 User Manual for complete instructions. After installation is complete, follow the steps below to register the VIA Mobile360 D700 to the VIA Fleet Cloud Management Portal. 1� Scan the appropriate QR code below to download the VIA Mobile360 app from either the Google Play Store for Android devices or the App Store for iOS devices. 2� After installation is complete, launch the app.
  • Page 16 VIA Mobile360 D700 EVK Quick Start Guide 3� Select “Me” from the bottom row of icons in the app. 4� Select “VIA Fleet Login”. 5� Input the same Username and Password provided for the VIA Fleet Cloud Management Portal to login and click “OK”. This will show the list of all vehicles created in your VIA Fleet Cloud Management account�...
  • Page 17 VIA Mobile360 D700 EVK Quick Start Guide 6� Start the vehicle to power on the VIA Mobile360 D700 device. After the device finishes booting there will be a short beep followed by the notification “Scan register QR code.” After the audio notification, there is a 60 second window to scan the QR code from the app. 7� In the app, click on the vehicle in the list to generate a QR code that is used to bind the device. 8� Place the QR code in front of the interior camera lens of the VIA Mobile360 D700. 8� Once the device has scanned the QR code the device will play the audio confirmation, “Scan Successful”. 9� Click “OK” on the pop-up notification to return to the vehicle list where it will show “registered” beside the vehicle name. Note: If the QR code is not successfully scanned within the 60 seconds timeframe, the device will play the audio notification “Registration Failed”. If this occurs, reboot the device and start over. 10� Log back into the VIA Fleet Cloud Management Portal and go to “Management -> Vehicles”. Click on the Fleet in the list and select the vehicle which was registered. There will be three new sections added to the vehicle information page.
  • Page 18 VIA Mobile360 D700 EVK Quick Start Guide Device Information - Displays information about the device bound to the vehicle: • Device Model - The model of the device bound to the vehicle, VIA Mobile360 D700. • Registration - A green checkmark indicates that the vehicle has a device bound with it. To unregister the device, click on the “Unregister” button displayed. • SIM Card - Displays the SIM card number installed in the VIA Mobile360 D700. AI Features - Displays the available AI features and calibration status. • - Lane Departure Warning • - Forward Collision Warning • - Driver Monitoring System • ADAS Calibration - Shows whether the ADAS calibration process has been completed. •...

  • Page 19: 3�3�3 Enabling Ai Features

    VIA Mobile360 D700 EVK Quick Start Guide Note: To register more devices, repeat the steps in sections 3�3�1 and 3�3�2� 3�3�3 Enabling AI Features The VIA Mobile360 D700 supports configurable AI features including LDW (Lane Departure Warning), FCW (Forward Collision Warning) and DMS (Driver Monitoring System) warnings to assist drivers with real-time safety notifications and for fleet owners to gain deeper insights into driver behaviors and overall fleet safety measures.

  • Page 20: Installation With Ai Features

    VIA Mobile360 D700 EVK Quick Start Guide Note: FCW and DMS cannot be enabled at the same time due to device performance limitations. The table below provides an overview of the available AI features, requirements to trigger alerts as well as how the stats are incorporated into the driver score metric and trip data� AI Feature Alarm Trigger Alarm Sound Driver Score Trip Stats Speed > 65km/h Warning û ü FCW - Warning 1.0s > Time to Collision > 0.6s Warning û û FCW - Critical Time to Collision < 0�6s Critical ü...
  • Page 21 VIA Mobile360 D700 EVK Quick Start Guide • It is recommended to connect the VIA Mobile360 D700 to the OBD II port in the vehicle to be able to get the real vehicle speed. This is a critical input to determine the TTC (Time to Collision) for the FCW warning. • For DMS, the interior camera should be no further than 90cm in front of the driver and no further than 40cm to the side of the driver's face. (Measured from the center of the face.) Note: If the vehicle speed cannot be obtained from the vehicle directly, the speed will be calculated using the GPS sensor which is less accurate. Installa�on Area 2.0m Installa�on Range Vehicle 1.3m Center 10cm Max Distance from Driver < 90cm Max Distance from Head < 40cm Max Distance above Nose < 40cm To calibrate the device for the ADAS and DMS features, the VIA Mobile360 app must be connected to the target VIA Mobile360 D700.

  • Page 22: Dms Calibration

    VIA Mobile360 D700 EVK Quick Start Guide After the connection has been established, you will see the live camera stream and a map in the “Live” tab of the app along with the following icons, “ ” for ADAS calibration and “ ” for DMS calibration. A red icon indicates that the calibration has not yet been completed, where a green icon indicates the calibration has been completed� 3�3�3�2 DMS Calibration The DMS calibration process is required to position the driver's head in the focal detection area of the camera to ensure accurate DMS detection. 1� To begin the calibration process, click on the red DMS icon on the right-hand side of the "Live" tab in the VIA Mobile360 app. This will bring up the live view of the interior camera� 2� Follow the instructions in the app to select which side the Driver's seat is on and adjust the camera angle, if necessary, to ensure the driver's head is within the bounding box. If the "Driver's Seat" field was filled in during the vehicle creation step in section 3.3.1, the correct side will already be selected.

  • Page 23: Adas Calibration

    VIA Mobile360 D700 EVK Quick Start Guide 3� Once the camera is positioned correctly, click on the "Calibration" button to complete the process, and go back to the "Live" tab in the VIA Mobile360 app. The DMS icon will now be green, confirming the calibration has been completed. 3�3�3�3 ADAS Calibration The ADAS calibration is a single process required to calibrate the VIA Mobile360 D700 for both the FCW and LDW AI features. The ADAS calibration process requires the vehicle to be driven on a stretch of road where the lane markings are clearly visible. The vehicle should be moving for the entire time at a speed over 30km/h. The full process will take between 30~60 seconds to complete. It is recommended to do the calibration process on a highway or expressway. 1� Once driving on a suitable stretch of road, begin the calibration process by clicking on the red ADAS icon on the left-hand side of the "Live" tab in the VIA Mobile360 app� 2� This will bring up a screen showing fields for "Vehicle Height" and "Distance from Camera to Roof". If this information was filled in during the vehicle creation step in section 3.3.1, the values will be displayed. If not, enter the correct values and click "Ok".
  • Page 24 VIA Mobile360 D700 EVK Quick Start Guide Note: It is recommended to refer to the vehicle's User Manual to obtain the vehicle height information. 3� This will bring up a live preview of the front camera with red bar overlaid. This represents the acceptable region the horizon must be in. The red line inside the bar is the horizontal centerline of the camera. Adjust the camera angle such that the red line overlays the horizon line as close as possible. 4� Once the camera is positioned correctly, click the "Calibration" button to start the calibration process. An audio notification will inform "starting ADAS calibration". Start driving along a road with clearly marked lines for at least 30 seconds. Once the device has enough information, the VIA Mobile360 D700 will provide an audio alert "ADAS calibration complete" and show a "Complete" button in the app interface. Press the button to confirm the ADAS calibration process is finished and return to the "Live" tab in the VIA Mobile360 app. The ADAS icon will now be green, confirming the calibration has been completed.
  • Page 25 V I A M o b i l e 3 6 0 D 7 0 0 E V K Q u i c k S t a r t G u i d e Note: he A A cali ra�on has a e a lt � e li it o in tes to co lete the rocess I the A A Cali ra�on rocess cannot e co lete in the �...

  • Page 26: 3�3�3�4 Select Features

    VIA Mobile360 D700 EVK Quick Start Guide 3�3�3�4 Select Features After completing the calibration steps for ADAS and DMS, go back to the VIA Fleet Cloud Management Portal and select the vehicle. The ADAS and DMS calibration fields will show a green check mark indicating that the calibration has been completed for the device. To turn on the AI features, select edit. The options to enable LDW, FCW or DMS will now be active. Enable the feature combination desired and click "Save" to activate the features�...

  • Page 27: Via Fleet Driver Registration

    VIA Mobile360 D700 EVK Quick Start Guide Note: FCW and DMS cannot be enabled at the same time due to device performance limitations. 3�3�4 VIA Fleet Driver Registration The VIA Fleet Cloud Management Portal allows for drivers to be registered in the system to allow for deeper insights when managing a fleet. To identify drivers of individual trips, drivers must first be created in the VIA Fleet Cloud Management Portal. Follow the steps below to create drivers and register them as permitted drivers for vehicles. 1� From the left-hand menu select “Management -> Drivers” 2� Next select “Add Driver” from the top bar. 3� Fill in the listed below as a minimum: • First Name - First name of driver - mandatory • Last Name - Last name of driver - mandatory...
  • Page 28 VIA Mobile360 D700 EVK Quick Start Guide • Driver Photo - Photo of driver to be used to help identify the driver throughout the VIA Fleet Cloud Management Portal. • Permitted Vehicles - click the “+” symbol to register the driver as a permitted driver for a vehicle. More than one vehicle can be selected. 4� Click “Save” to add the new driver.

  • Page 29: Registering A Driver For A Trip

    VIA Mobile360 D700 EVK Quick Start Guide 3�3�5 Registering a Driver for a Trip After creating a driver in the VIA Fleet Cloud Management Portal, drivers will now be able to register for a trip by scanning their unique driver QR code from the VIA Mobile360 app after the VIA Mobile360 D700 device boots. Follow these steps to successfully register a driver for a trip. 1� Go to “Management -> Drivers” in the VIA Fleet Cloud Management Portal and select the driver you will use to register for the trip. You will see a field at the bottom of the page named “Login ID”. This is the driver username which can be used to login into the VIA Mobile360 app for that driver. • Username - The default username is generated as follows: “company name_driver’s first name_driver’s last name”. This can be changed after creating a driver. For example: VIA_Michael_Fox • Password - The password is your company name.
  • Page 30 VIA Mobile360 D700 EVK Quick Start Guide 2� After a VIA Mobile360 D700 device has been registered to the VIA Fleet Cloud Management Portal you will hear an audio notification “Scan driver QR code” after the device completes booting. To register a driver for a trip, open the VIA Mobile360 app on a mobile device. 3� Select “Me” from the icons at the bottom of the app. 4� Select “VIA Fleet Login”. Note: This process needs to be done for every trip, where a trip is defined as when the device boots to when the device is powered off. 5� Input the Driver Login ID and Password and click “OK”. This will open a screen with the driver QR code which will remain valid for the time set in the settings (default is 60 seconds). After the device has completed booting the notification “Scan driver QR code” will be played. 6� Place the driver QR code in front of the interior camera lens (the default scan time is 60 seconds). Once the VIA Mobile360 D700 device has successfully scanned the QR code, an audio notification will play "Scan successful" and the trip recording will begin. 7� An image will be captured by the internal camera of the VIA Mobile360 D700 after a default period of 30 seconds which will be included in the trip history report.

  • Page 31: Account Settings

    VIA Mobile360 D700 EVK Quick Start Guide Note: If no QR code is scanned within the time limit the trip will automatically begin recording and the after the time limit expires. The vehicle will display “unknown driver” in the live tracking section of the VIA Fleet Cloud Management Portal. 3�4 Account Settings After completing the test environment setup, settings for the entire fleet devices and account information can be found by clicking on the username in the right-hand side of the top menu bar. Clicking it will expand the menu to show options for: • Account - User profile including Company, Login Name, E-mail, and other information. • Settings - Unit settings, Login scan time, Login picture delay, Alert recording duration, Collision sensitivity and Audio recording. • Logout - Logout of the VIA Fleet Cloud Management Portal. 3�4�1 My Account After selecting “My account” the user profile including Company, Login Name, E-mail, and other information will be displayed.

  • Page 32: System Settings

    VIA Mobile360 D700 EVK Quick Start Guide 3�4�2 System Settings The “System Settings” pop-up window allows for universal settings to be configured for all VIA Mobile360 D700 devices registered to an account in the VIA Fleet Cloud Management Portal� • Units - Select either Metric, Imperial or US Customary to set the units used throughout the VIA Fleet Cloud Management Portal� • Login Scan Time - Set the time after the device finishes booting to accept Driver QR code scans, the default setting is 60 seconds� • Login Picture Delay - Set the time after a successful Driver QR code scan to take a photo with the interior camera. This will be added to the trip history to valid who was driving the vehicle. • Alert Recording Duration - Set the recording time (10, 20 or 30 seconds) from the point of the alert trigger� For collision alerts while driving or driver initiated alert videos via the short record button, 10 seconds prior to the trigger point will be added to the alert video.

  • Page 33: Live Tracking

    VIA Mobile360 D700 EVK Quick Start Guide Note: When the VIA Mobile360 D700 connects to the VIA Fleet Cloud Management Portal, the cloud settings will override the local default settings or settings changed using the VIA Mobile360 app. *Collision videos will always include audio� 3�5 Live Tracking The “Live Tracking” page provides real-time tracking of registered vehicles. Selecting the “On-road” tab will display all vehicles currently active. The panel to the right of the menu displays a list of all fleets and vehicles assigned to each which are currently active. Note: An active vehicle is defined as a vehicle with a registered VIA Mobile360 D700, active 4G signal and has started the ignition. Icon Legend “ 7/12” - Active/Total vehicles in fleet “ ” - Currently selected vehicle “ ” - Collision alert triggered by the device. “ ” - Offline, the vehicle is on road but has lost its 4G signal temporarily. “ ” - 2-way call requested by driver alert. Note: Vehicles with a red font in the list identify current trips with either an unregistered driver or a driver who is not permitted for that vehicle. Clicking on a fleet name will display icons for each active vehicle within the fleet on the map, while clicking on a specific vehicle the map will center on that vehicle as well as bring up a pop-up window on the right-hand side of the screen showing more information.
  • Page 34 VIA Mobile360 D700 EVK Quick Start Guide...
  • Page 35 VIA Mobile360 D700 EVK Quick Start Guide <-Clicking on the Alert icon will show the recorded videos for each collision alert, if any. -> Clicking on the camera icon allows a live KVS stream to be initiated with either camera. The information tab of the pop-up window displays current trip information about the vehicle including: • Vehicle name along the top bar • Vehicle license plate number • Fleet group the vehicle belongs to • Current driver (Driver name if driver QR code was scanned otherwise it will display “Unknown”) • Current speed, trip fuel consumption and current location • Image captured by the VIA Mobile360 D700 after the QR code scan • Initiate 2-way communication button with the vehicle Note: KVS streams are optimized at resolutions of 640 px x 480px @ 15fps to ensure smooth playback.

  • Page 36: Collision Alert Notification

    VIA Mobile360 D700 EVK Quick Start Guide Selecting the “Off -road” tab will display the list of vehicles currently not active. Selecting any vehicle in the list will display the last known location of the vehicle as well as information pertaining to the last trip. 3�6 Collision Alert Notification When a collision alert is sent from a VIA Mobile360 D700 device to the VIA Fleet cloud, the “ ” alert icon in the top bar will show a red dot to indicate a new alert has been sent. Alerts sent within the past 24 hours will be kept in the list. Clicking on the alert icon will pop-up a window showing the list of alerts for that day including the vehicle, fleet, collision location, driver, and time of each alert. Clicking on the location will go to the “Alert” section of the “Trip History” page and automatically select the vehicle and display the videos. In the “Live Tracking” page, an alert icon “ ” will be displayed beside the vehicle in the list on the left-hand side of the page. Select the vehicle, then in the pop-up window select the “Alert” icon to see the collision alert information and videos.

  • Page 37: 2-Way Calling Notifications

    VIA Mobile360 D700 EVK Quick Start Guide Note: When a collision alert is first sent, snapshots from each camera on the VIA Mobile360 D700 will be sent along with the alert information. Videos will replace these snapshots after being uploaded to the VIA Fleet Cloud Management Portal. 3�7 2-Way Calling Notifications The VIA Mobile360 D700 allows for 2-way calling between a driver and the fleet management center. When a driver does a long press on the short record/2-way call alert button, a message is sent to the VIA Fleet Cloud Management Portal. In the top menu bar, the 2-way call “ ” icon in the top bar will show a red dot beside it to notify a driver request has been sent. Clicking on the 2-way call icon will pop-up a window showing the list of requests sent by drivers. There are two tabs in the pop-up window, one for "Notifications" which shows requests sent in the past one hour and another for "Missed Calls", which will keep all unanswered requests within the past 24-hours. Detailed information for each request includes the vehicle, fleet, driver, time, location, log, log event and status of the request.
  • Page 38 V I A M o b i l e 3 6 0 D 7 0 0 E V K Q u i c k S t a r t G u i d e he og an el s ill in icate i a ri er has sent l�...

  • Page 39: Dashboard

    VIA Mobile360 D700 EVK Quick Start Guide 3�8 Dashboard The “Dashboard” page of the VIA Fleet Cloud Management Portal displays a summary of all relevant data collected to provide an overview of the fleet history. Statistics can be filtered by the last 7 days / 30 days / 12 months, or by a user defined range. Under the top menu bar, a list of all fleet groups created, and the corresponding color code is displayed. Beneath this are five sections which display key statistics for the entire fleet including:...
  • Page 40 VIA Mobile360 D700 EVK Quick Start Guide • Hours Driven - Total and average for the range selected. • Distance Driven - Total and average for the range selected. • Fuel Consumption - Total and average for the range selected. • Collision Alerts - Total for the range selected. • Driver Score - Average for the range selected. Beneath this to the left are 3 line charts displaying total hours driven, total distance driven and total fuel consumption for the time period selected. This provides an easy way to see trends in the key metrics for the entire fleet. To the right of the line charts are two tables showing rankings by vehicles and drivers for the period selected. To filter by any of the categories, click on the arrow icons beside the column headings in the table. Clicking the section title will pop-up a full-page view with complete rankings.

  • Page 41: Trip History

    VIA Mobile360 D700 EVK Quick Start Guide 3�9 Trip History The “Trip History” page of the VIA Fleet Cloud Management Portal provides an easy way to review any trip which has been logged. There are two tabs which allow searching by either Driver History or by Alert History for the entire fleet. 3�9�1 Driver Selecting the “Driver” tab in the “Trip History” page allows filtering by specific drivers to review their driving history. Note: For trips to be associated with drivers you will need to have used the “Driver QR Code” to register when the VIA Mobile360 D700 device boots as described in section 3.3.4. If no driver was registered for a trip they will be classified as “Unknown Driver” in the list. After selecting a driver from the list of registered drivers, the calendar will display days which have trips recorded.
  • Page 42 VIA Mobile360 D700 EVK Quick Start Guide Calendar Legend: • Days with Trips - Days with trips are designated with a grey circle behind the date: " ". • Days with Collision Alerts - Days with collision alerts are designated with a red circle around the date: " ". • Current Selection - The current day selected is designated with a blue circle behind the date: " ". After selecting a day, the total trips statistics for all trips driven on that day will be displayed beneath the calendar including: • Total Time - Total driving time • Distance - Total distance driven • Total Fuel Consumption - Total fuel consumption • G-Sensor Events: • Revving Up - Total revving up events •...
  • Page 43 VIA Mobile360 D700 EVK Quick Start Guide If there are collision alerts in a trip they will be shown on the route. Clicking on the collision icon will bring up the video player within the pop-up window with the recorded front and rear camera videos available for playback�...
  • Page 44 VIA Mobile360 D700 EVK Quick Start Guide Select a different trip from the list to bring up the information in the map for that trip.

  • Page 45: 3�9�2 Alerts

    VIA Mobile360 D700 EVK Quick Start Guide 3�9�2 Alerts Selecting the “Alerts” tab in the “Trip History” page brings up all collision alerts recorded by the entire fleet. Days with collision alerts will be shown in the calendar with red circles “ ” around the date. The currently selected day will be shown with a blue circle “ ” behind the date. After selecting a day with collision alerts, a list of all recorded collision alerts will be shown below the calendar indicating the time and location of the alert. Selecting any alert from the list will display the location of the collision alert on the map as well as a pop-up window with details of the collision event including vehicle, driver, time, location and speed at the time of the alert. The videos recorded by the front and rear cameras are displayed beneath as shown in the image above. Clicking once on a video will begin playback while double-clicking a video will go to full screen playback mode.

  • Page 46: 3�10 Management

    VIA Mobile360 D700 EVK Quick Start Guide 3�10 Management 3�10�1 Vehicles The “Vehicles” tab will show a complete list of all fleets created including fleet name, number of vehicles assigned to the fleet, number of drivers permitted to drive vehicles within the fleet and a short description.

  • Page 47: Registration Status And Trial Period Information

    VIA Mobile360 D700 EVK Quick Start Guide 3�10�2 Registration Status and Trial Period Information Clicking on an individual fleet will expand the group and display all assigned vehicles within the fleet. General vehicle information as well as registration status, AWS trial time remaining and KVS time remaining are displayed. VIA provides a 30-day AWS trial period and 50 hours of KVS real-time streaming for each device. Note: When a KVS stream is enabled, the video stream will stay alive for 3 minutes, unless manually stopped, then auto disconnect to avoid forgetting to close the KVS function and waste trial time.

  • Page 48: Deleting And Editing Fleets And Vehicles

    VIA Mobile360 D700 EVK Quick Start Guide 3�10�3 Deleting and Editing Fleets and Vehicles If you want to delete a vehicle or fleet, check the box to the left of the vehicle or fleet name, and click “ ” to delete. To edit vehicle or fleet information, click “ Delete ” on the right-hand side of the screen. Note: When deleting a fleet, the vehicles in the fleet will keep all information and be assigned to the unassigned vehicle group at the bottom of the list. When deleting a vehicle, all information will be removed�...

  • Page 49: 3�10�4 Drivers

    VIA Mobile360 D700 EVK Quick Start Guide 3�10�4 Drivers The “Drivers” page shows a complete list of all drivers including driver name, login ID, contact number, license number, number of vehicles they are permitted to drive, and the emergency contact. If you want to delete a driver click on the box to the left of the driver’s name and click “ ” to delete. To edit information for a driver Delete click “ ” on the right-hand side of the screen for the driver.

  • Page 50: 4� Via Mobile360 App

    VIA Mobile360 D700 EVK Quick Start Guide 4� VIA Mobile360 App VIA Mobile360 app supports Android and iOS phone connections and can be used to connect to a VIA Mobile360 D700 device to view live streaming as well as recorded trip video and data on the device through a Wi-Fi connection. Note: A MicroSD card is required to save trip video and data on the VIA Mobile360 D700 device. A 4G SIM card is required for the map views of GPS route tracking as well as to send data in real-time to the VIA Fleet Cloud Management Portal. • Inserting MicroSD Card or Micro SIM Card - When inserting a MicroSD card or Micro SIM card, use your fingernail to press the card into the correct slot on the device. When it is fully inserted, the card will snap into the slot. To remove the card, use your fingernail to gently press the card into the device and it will pop up, allowing it to be removed� Note: Please confirm the 4G SIM can connect to internet. The Micro SIM card does not support hot plugging. 4�1 Connecting to VIA Mobile360 D700 Once the VIA Mobile360 app has been installed on a mobile device, open the app and follow the prompts to connect to the VIA Mobile360 D700 device over Wi-Fi. The VIA Mobile360 D700 Wi-Fi SSID is named “VIA Mobile360_XXX” and can be found in the phone’s available Wi-Fi connections once the VIA Mobile360 Device has booted. The default password is “12345678”.

  • Page 51: App Menu

    VIA Mobile360 D700 EVK Quick Start Guide After a Wi-Fi connection has been established, the VIA Mobile360 app will display the “Live” interface. Note: The VIA Mobile360 app supports English, Simplified and Traditional Chinese languages. The app will detect the language settings of your mobile device to choose which language to use. English will be displayed for all languages not listed� 4�2 App Menu The menu for the VIA Mobile360 app is located along the bottom of the app interface and includes the 5 items described below:...

  • Page 52: Live

    VIA Mobile360 D700 EVK Quick Start Guide • Live - View the live stream and GPS tracking of the VIA Mobile360 D700 AI Dash Cam. • Trips - View your trips, play back videos, and download videos to the connected mobile phone. • Stats - Statistics about the driving status of the vehicle during the trip. • Album - View the videos saved to the MicroSD card in the VIA Mobile360 D700 and download the videos to the connected mobile phone. • - Change map, VIA Fleet login and about VIA Mobile360 app. 4�3 Live The “Live” interface of the VIA Mobile360 app allows real-time viewing of either camera as well as tracking of the GPS positioning on the map below the live stream. Users can also initiate the calibration processes for the ADAS and DMS AI features. The “Live” interface is described below. 1� VIA Mobile360 D700 device settings 2� Full screen 3� Mute audio 4� Switch camera view 5� Trip duration 6� Current vehicle speed 7� GPS signal strength 8� 4G network signal: If there is no signal or the SIM card cannot access the Internet, the map will not be displayed 9�...

  • Page 53: Device Settings

    VIA Mobile360 D700 EVK Quick Start Guide 4�3�1 Device Settings Click the “Device Settings” button in the “Live” interface to configure the various VIA Mobile360 D700 device parameters as described below: Trip: • Units - Change the units displayed in the app between metric, Imperial and US customary. • Alert Recording Duration - Set the recording time (10, 20 or 30 seconds) from the point of the alert trigger. For collision alerts while driving or driver initiated alert videos via the short record button, 10 seconds prior to the trigger point will be added to the alert video. Parking mode collision alerts will record the time set after the device boots. • Alert Sensitivity - Change the sensitivity for alert triggering, where “High” makes it easier to trigger an alert and “Low” makes it harder to trigger an alert. • Audio Recording - Turn on/off audio recording. • Alert Volume - Adjust the volume level for alert notifications. There are 4 settings between the minimum and maximum volumes. Where min=25% and max=100%. • 2-Way Call Volume - Adjust the volume for 2-way calls. There are 4 settings between the minimum and maximum volumes. Where min=25% and max=100%. Network: • Wi-Fi Mode - Switch the recorder’s Wi-Fi mode (need to reconnect after switching 2.4G/5G). • Wi-Fi Name - VIA Mobile360 D700 Wi-Fi AP Mode SSID. Tap to change SSID and Password. •...
  • Page 54 VIA Mobile360 D700 EVK Quick Start Guide Vehicle Configuration: The “Vehicle Configuration” settings are used to improve the accuracy of the “Collision Alert”, “Driver Score” and fuel consumption results� • Vehicle Weight - Select between “Under 1.8T”, “1.8T-3.5T” or “Over 3.5T” (metric units). • Tank Capacity - Refer to the user manual of the vehicle to insert the correct fuel tank capacity of the vehicle. • Displacement - Refer to the user manual of the vehicle to insert the correct engine displacement value. AI Features: After calibration for ADAS and DMS have been completed, the sliders can eb used to enable or disable the LDW, FCW and DMS AI features� • ADAS Audio Alerts - Enable or disable the audio alert for LDW and FCW. • DMS Audio Alerts - Enable or disable the audio alerts for Driver Fatigue, Smoking, Distracted Driving and Phone Usage. Note: FCW and DMS cannot be enabled at the same time due to device performance limitations.

  • Page 55: Trips

    VIA Mobile360 D700 EVK Quick Start Guide 4�4 Trips The “Trip” interface displays stored trips By clicking a day in the calendar with trips, the interface will display a short on the MicroSD card inserted in the VIA summary of all trips that occurred that day including time, location and if any Mobile360 D700 device. When the VIA collision alerts occurred during the trip. Mobile360 D700 is turned on, it begins Click “Download” to download the trip to the connected mobile device to view to record a trip. The recording of the when not connected to the VIA Mobile360 D700. trip only ends when the device is turned off. The“Trips” interface allows a user Click on the trip to enter the trip details screen. The trip details show the to view and downloaded trips by date� entire route of the trip, the trip videos, collision alert videos (if any) and other Days with trips are indicated with a information about the trip. blue circle around the date. A red mark Click on the trip video to play back the video. The corresponding position during below the date in the calendar indicates the trip will be synced in the map below the video player. that a collision alert has occurred on that date and a full red circle indicates the current date selected. Note:...

  • Page 56: Stats

    VIA Mobile360 D700 EVK Quick Start Guide 4�5 Stats The “Stats” interface can query the trip statistics for a selected day or an interval of time. Total stats for all trips during the selected interval will be displayed followed by each trip included in the period. The “Stats” interface is as shown below:...

  • Page 57: Album

    VIA Mobile360 D700 EVK Quick Start Guide 4�6 Album From the “Album” tab, users can playback or download videos stored on the MicroSD card, including “Trip”, “Alert” and “Short Record” videos. • Trip - Trip videos are recorded as 3-minute video files. When the MicroSD card runs out of space, the device will automatically delete the oldest video file and record in a cyclic manner. These can be viewed in the “Trip” tab in the Album of the VIA Mobile360 app. • Alert - When the recorder detects that the G-Sensor value exceeds the threshold of the alert sensitivity, an alert video will be recorded. The length of the alert video will depend on the value in the settings as explained in section 4.3.1� • Short Record - A driver can trigger an emergency alert by short pressing the “Short Record” button on the VIA Mobile360 D700. The length of the alert video will depend on the value in the settings as explained in section 4.3.1. These videos can be viewed it in the “Short Record” tab in the album of the VIA Mobile360 app. • Local - Videos which have been downloaded to the connected mobile device are displayed in the “Local” tab in the Album of the VIA Mobile360 app. Clicking on a video file will begin playback. To download videos, long press on a video then a blue check mark will appear in the bottom left-hand corner of the video. Click “ ” in the bottom left-hand corner of the screen to select all videos or individually tap on videos to add to the download group. After selecting the videos, click “ ” to download them to the connected mobile device. Downloaded videos can be seen in the “Local” tab.
  • Page 58 VIA Mobile360 D700 EVK Quick Start Guide To delete videos from the Local tab, long press on a video then a blue check mark will appear in the bottom left-hand corner of the video. Click “ ” in the bottom left- hand corner of the screen to select all videos or individually tap on videos to add to the download group. After selecting the videos, click “ ” to delete them from the connected device storage� Note: Deletion of videos from the inserted MicroSD card can only be done through a PC.
  • Page 59 VIA Mobile360 D700 EVK Quick Start Guide 4�7 The “Me” tab provides the opportunity to; change the map service used between Google or Baidu, login to access VIA Fleet Cloud Management QR codes and check the current app version. The “Me” interface is shown as below. • Choose Map - Change the default map service used in the app to either Google or Baidu maps. • VIA Fleet Login - Administrator or driver login portal for VIA Fleet Cloud Management purposes� • About VIA Mobile360 App - Shows the current version of the app installed as well as a link to the user agreement. Note: The default selection for the map used is “Automatic” and will use Baidu maps for phones using Simplified Chinese as the system language and Google maps for all other languages.
  • Page 60 Taiwan Headquarters Taiwan Headquarters Japan Japan China China 1F, 531 Zhong-zheng Road, 940 Mission Court 3-15-7 Ebisu MT Bldg. 6F, Tsinghua Science Park Bldg. 7 Xindian Dist., New Taipei City 231 Fremont, CA 94539, Higashi, Shibuya-ku No. 1 Zongguancun East Road, Taiwan Tokyo 150-0011 Haidian Dist., Beijing, 100084...
