Quick Start Guide (A163818TU7_A)
Pro Gen4 Multisensor Dome Ceiling Mount Installation
Guide
You can install the Pro Gen 4 Multisensor dome into an indoor 2x2 suspended
ceiling. First, you must secure the recess mount brackets (IBCR-M-ISWT-A)
to the camera mount plate. The recess-mount-bracket / mount-plate assembly
is then secured to the 2x2 ceiling tile (IBCT-M-IS-A).

Parts supplied with IBCT-M-IS-A

Plate Mount, PG4 2x2 Mount
Galvanised wire hanger
T Bar ceiling kit
IR PTZ 2x2 install kit

Installing the 2x2 ceiling tile

Note: If placing the ceiling mount into a 2x2 foot opening, use the T Bar
ceiling Kit. See instructions supplied with the kit.

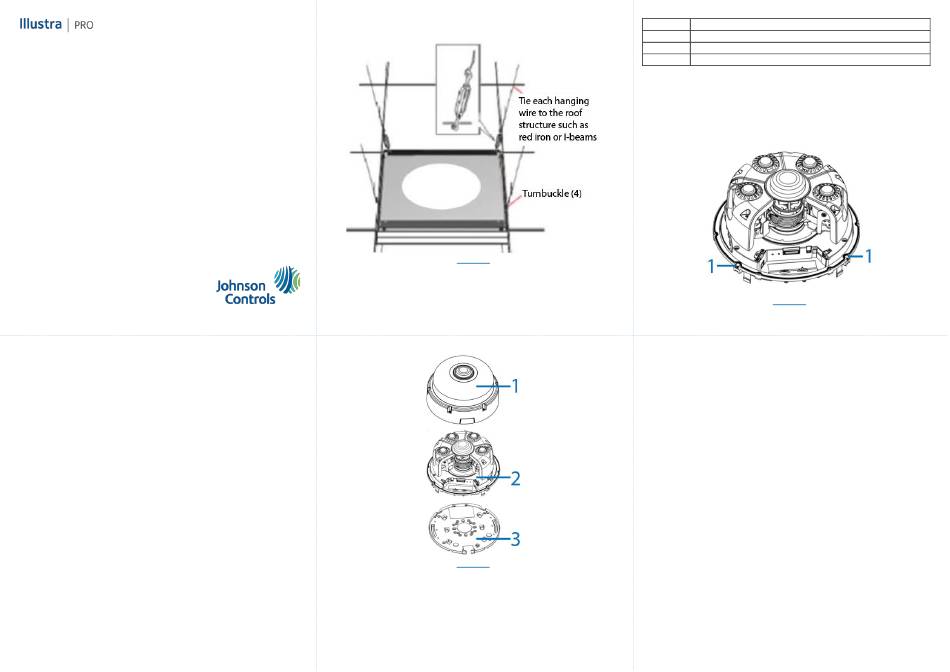

Note: Steps 1 to 8 below refer to Figure 1.
1.
Remove the ceiling tile to create an opening and remove adjacent
tiles on both sides of the opening to facilitate access to the cables.
2.
Thread the four hanging wires around a roof structure nearest the
four corners of the opening such as red iron or I-beams.
3.
Note: Do not attached to pipes or conduit.
4.
Twist each wire around itself at least four times to secure it to the
roof structure.
5.
Remove the four turnbuckles from the kit and fully extend the hook
and eye of each one.
6.
Insert the hook of the turnbuckle into each of the four holes on the
mounting plate and using a pliers, crimp the hook to affix the
turnbuckle to the plate.
7.
Tilt the mounting plate to get it above the opening, then drop it in
place.
8.
Straighten each hanging wire, then thread it through the eye of the
turnbuckle closest to it and twist it around itself at least four times.
Installing the 2x2 ceiling tile (continued)
Part Number
0505-2912-01
2898-0007-01
0351-1673-01
0352-0642-01
Figure 2: PG4 Multisensor Dome camera parts
Figure 1
Figure 2

Table 1: PG4 Multisensor Dome camera parts descriptions

Number
Description
1
Camera Top Cover with Bubble
2
Camera Lens Module
3
Mount Plate

Disassembling the camera

1.
Use the T20 Torx wrench to remove the 6 screws located on the
camera top cover (1) (Figure 2) and then remove the camera top cover.
The camera lens module (2) (Figure 2) is now exposed.
2.
Use the T20 Torx wrench to remove the two screws (1) (Figure 3) on
the camera lens module and remove the mounting plate (3) (Figure 2)
from the camera lens module.
Figure 3
Part supplied with IBCR-M-ISWT-A
• 2 x Recessed Mount brackets
• 1 x Mounting plate
• 8 x M5 Screws and washers
• 1 x Quick start guide
• 1 x T20 wrench
• 2 x Cover Mylars
• 1 x Safety wire screw

Installing the recess mount brackets into the 2x2 ceiling tile

1.
Disassemble the camera as per steps 1 to 2 in Disassembling the
camera procedure.
2.
Install the 2x2 ceiling tile into the ceiling as per the Installing the 2x2
ceiling tile procedure.
3.
Align both recessed mount brackets (2) (Figure 4) together and place
the mounting plate (1) (Figure 4) on top of both recessed mount
brackets and align the eight holes on the mounting plate with the eight
holes on the recessed mount brackets.
4.
Insert the eight screws with washers into the eight holes and use a
screwdriver to securely attach the mounting plate to the recessed mount
brackets.
5.
Insert the recess mount brackets with mounting plate (1) (Figure 5) up
into the hole in the ceiling tile (2) (Figure 5).
