Johnson Controls Illustra Pro Gen4 Quick Start Manual

Quick Start Guide
(A163818NN2_B)
Illustra Pro Gen4 12MP Fisheye camera
(P/N IPS12-F27-OIA4)
In the box
• 1 x Illustra Pro Gen4 12MP Fisheye Camera
• 1 x Flat bracket
• 1 x Safety wire
• 4 x Tapping screws and 4 x Plastic anchors
• 1 x Torx wrench
• 1 x 2 pin terminal block
• 1 x 8 pin terminal block
• 1 x Printed Quick Start Guide
• 1 x Mounting template sticker
• 1 x Mounting thread screw
• 1 x Waterproof rubber
• 4 x Standoffs (for use with the wall mount accessory)
• 4 x Phillips screws (for use with the wall mount accessory)
• 1 x Plastic adaptor plate (for use with the pendant cap accessory)
• 2 x M4 screws (for use with the pendant cap accessory)
• 4 x Phillips screws (for use with the pendant cap accessory)
Installation tools
• 1 x Screwdriver
• 1 x Torx wrench
• 1 x Drill
• 1 x Wire cutters
Quick reference
•
Default IP: 192.168.1.168 (DHCP enabled)
•
Default Username / Password: admin / admin
•
Power: IEEE 802.3af Class 3, PoE 48V DC / 11.89W or 24V AC / 11.77W

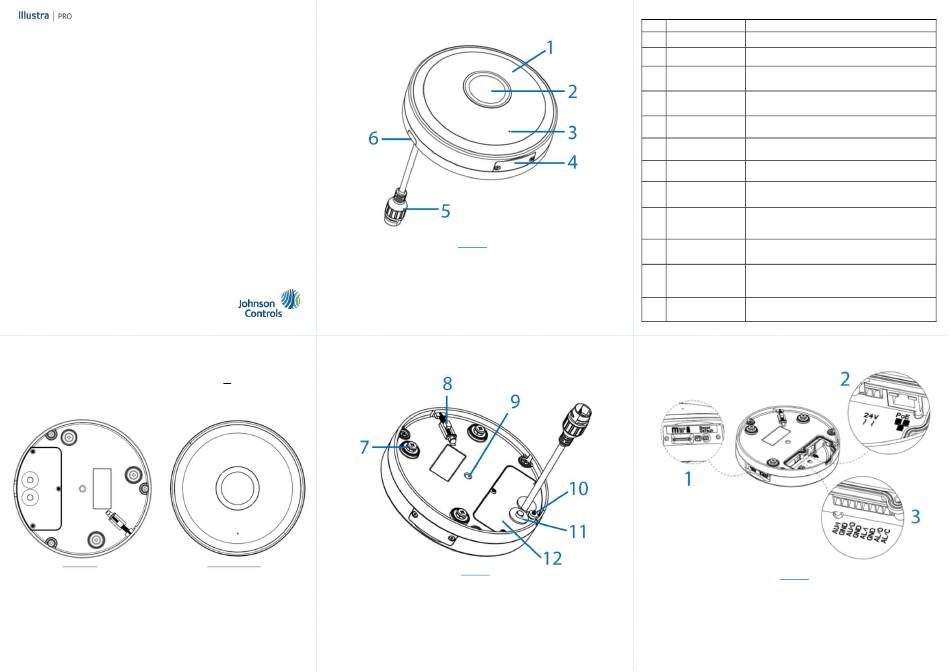

Figure 1: Pro Gen4 12MP Fisheye rear / top-down views
Rear view
Figure 2: Camera parts (Top-down view)
Note: See Table 1 for descriptions on the parts identified in Figure 3 below.
Security
Figure 3: Camera parts (rear view)
Note: See Table 1 for descriptions on the parts identified in Figure 4 below.
Top-down view
Figure 2
Figure 3
Table 1: Camera part descriptions
No Name Description
1 Dome Cover The upper dome-shape cover provides protection
The proprietary fisheye lens provides wide
2 Lens
hemispheric view
The hole for built-in microphone to receive audio
3 Microphone vent
input
Unscrew the two screws to remove the cover and
4 SD Card cover
access the SD card cover.
Pre-Fitted RJ45 Insert an Ethernet cable into the PoE port on the
5
cable RJ45 cable.
Cable side entry
6 Cable route when using the cable side entry cap
cap
These three screws attach the camera to the flat
7 Mounting screws
bracket
The security lock ensures that the camera is
8 Security lock
mounted securely onto the flat bracket.
Remove this screw and insert it into the 'loop' on
9 Safety wire screw the safety wire, then securely attach the screw
back into the camera.
Remove this screw when using the cable side
10 Side cap screw
entry cap.
Allows multiple cables to be threaded through the
Waterproof rubber
11 each of the two plugs to ensure waterproof
plug
protection.
Remove the three screws to open the rear cap to
12 Rear cap cover
access the camera buttons and connections
Figure 4: Camera buttons and connections
Figure 4
