Johnson Controls S1-1FF0602 Installation Manual

ACCESSORY KIT INSTALLATION MANUAL
FOR USE WITH MODELS: PCG4 / PCE4 /PHG4 / PHE4 / PCG6 / PCE6 /PHG6 / PHE6
GENERAL INFORMATION
These filter frame kits are for 2 – 5 Ton packaged units. Ensure
that kit received is correct kit for application.The filter frame kit
may be used for downflow or horizontal air flow and with or
without an economizer. The kit accommodates a 1" or 2" thick
air filter.
TABLE 1: Kit Model Numbers
MODEL
S1-1FF0601
(Small Base)
S1-1FF0602
(Large Base)
1. The following list details the parts included in this kit.
Inspect the kit to ensure that all listed parts are included.
TABLE 2: Kit Parts (See Figure 1.)
ITEM QUANTY
1 1
2 1
3 2
4 2
5 8
6 2 #10 X 1/2" self-tapping Hex Head Screw
SCREW
FILTER FRAME
(TOP)
SCREW
SCREW
SCREW
SIDE RAIL
(Wedges FILTER
RETAINER
against
BRACKET
rear duct
panel)
SCREW
SCREW
FILTER
RETAINER
BRACKET

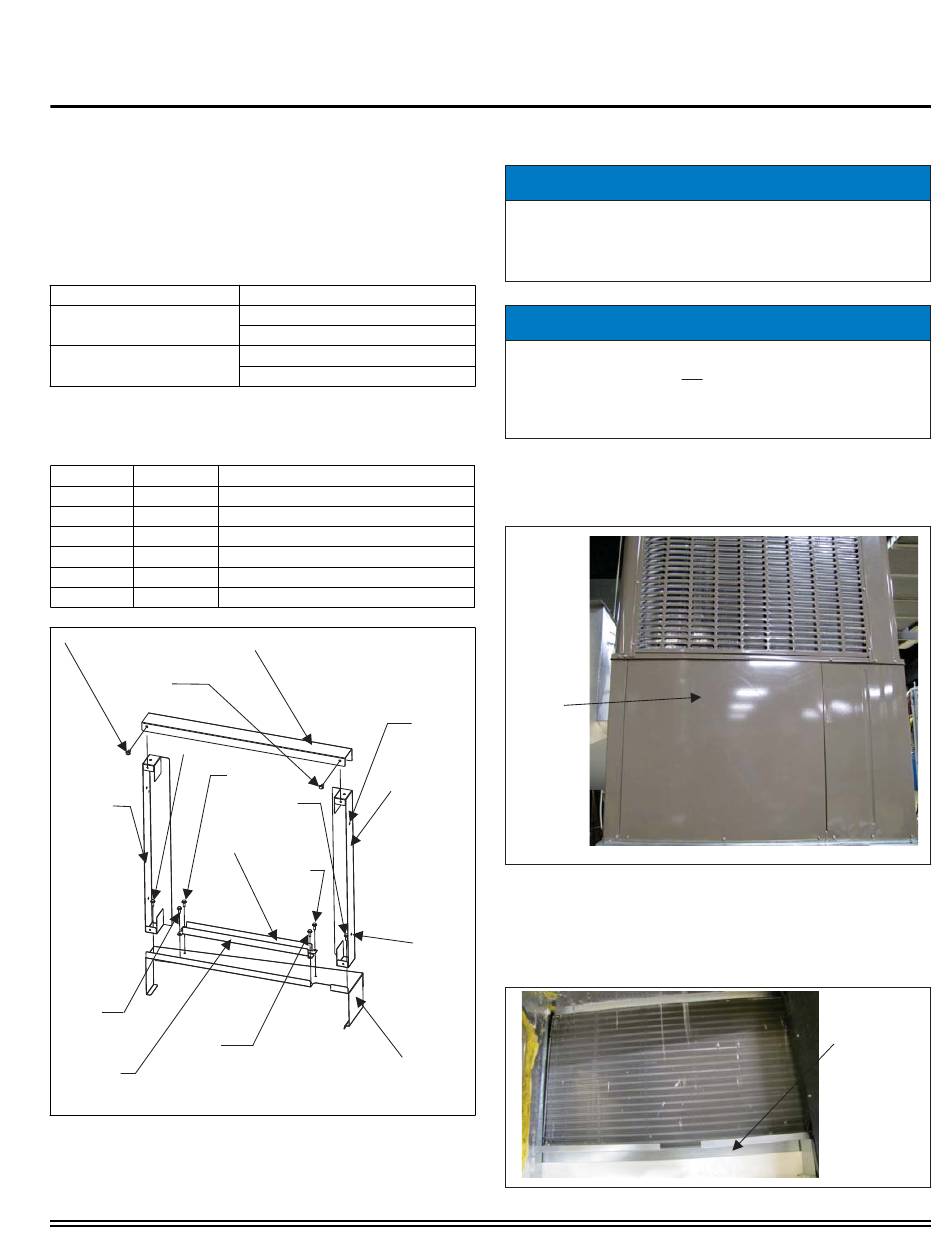

FIGURE 1: Filter Frame Kit Assembly
2. Layout the frame pieces before assembly to ensure that all
necessary pieces are included.
Johnson Controls Unitary Products
FILTER FRAME KIT (S1-1FF0601 / S1-1FF0602)
EQUIPMENT
AC 2 – 3.5 Ton
HP 2 – 2.5 Ton
AC 4 – 5 Ton
HP 3 – 5Ton
DESCRIPTION
Top Filter Frame
Bottom Filter Frame
Side Rail
Filter Retainer Bracket
#10 X 1/2" Hex Head Screw
FRAME
ANCHOR
SCREW
HOLE
SIDE RAIL
SCREW
(Attaches to
compressor
blockoff
panel)
SCREW
FRAME
ANCHOR
SCREW
HOLE
FILTER
FRAME
(BOTTOM)
A0367-001
NORMAL INSTALLATION
NOTICE
If Downflow Economizer is being Installed in the unit, do not
accomplish the Normal Installation procedures. Instead,
accomplish the Secondary Installation procedures at the end
of this document.
NOTICE
The Normal Installation procedures are to be used when a
downflow economizer is not in place. The Normal Installation
procedures can also be used with horizontal flow economiz-
ers, when filter access panel is unobstructed. A 1" or 2" filter
can be used in accordance with the Normal Installation.
Install filter and frame kit as follows:
1. Verify that power to unit is off.
2. Remove filter access panel from unit. See Figures 2 and 9.
FILTER
ACCESS
PANEL
FIGURE 2: Filter Access Panel
3. Place bottom of filter frame in mounting position with larger
end to right toward compressor block off panel. Insert
downward flange into drain pan ledge for support. See Fig-
ure 3.
FIGURE 3: Filter Frame in Mounting Position.
A0382-001
FILTER FRAME
(BOTTOM)
A0383-001
