Rear Panel Components - HP Compaq dx7300 ST Hardware Reference Manual

Rear Panel Components

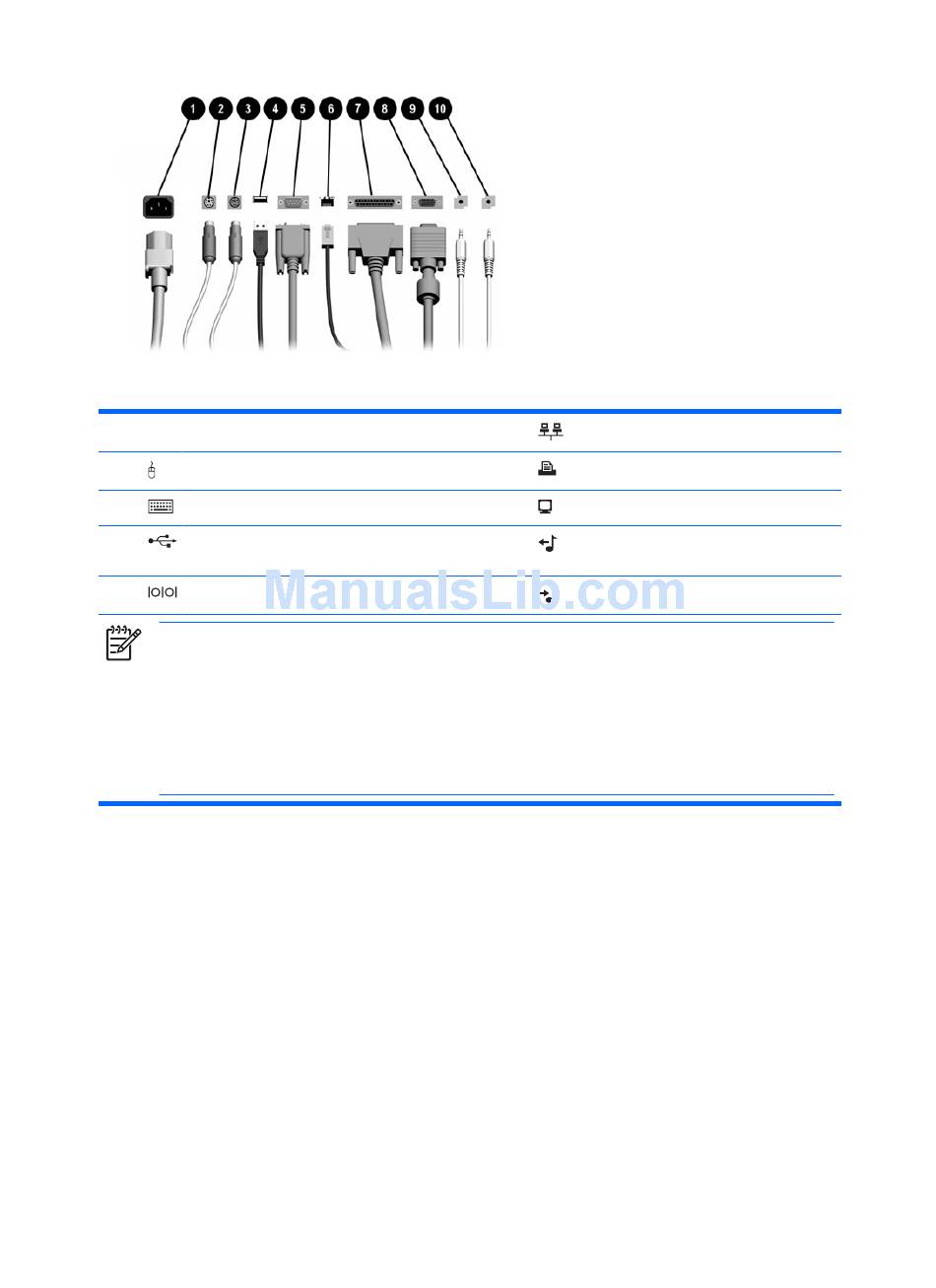

Table 1-3 Rear Panel Components
1 Power Cord Connector
2 PS/2 Mouse Connector (green)
3 PS/2 Keyboard Connector (purple)
4 Universal Serial Bus (USB)
5 Serial Connector
NOTE
The monitor connector on the system board is inactive when a PCI Express graphics card is installed in the
computer.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
An optional second serial connector is available from HP.
1
4 Chapter 1 Product Features
1
Arrangement and number of connectors may vary by model.
6 RJ-45 Network Connector
7 Parallel Connector
8 Monitor Connector
9 Line-Out Connector for powered audio
devices (green)
10 Line-In Audio Connector (blue)
ENWW
