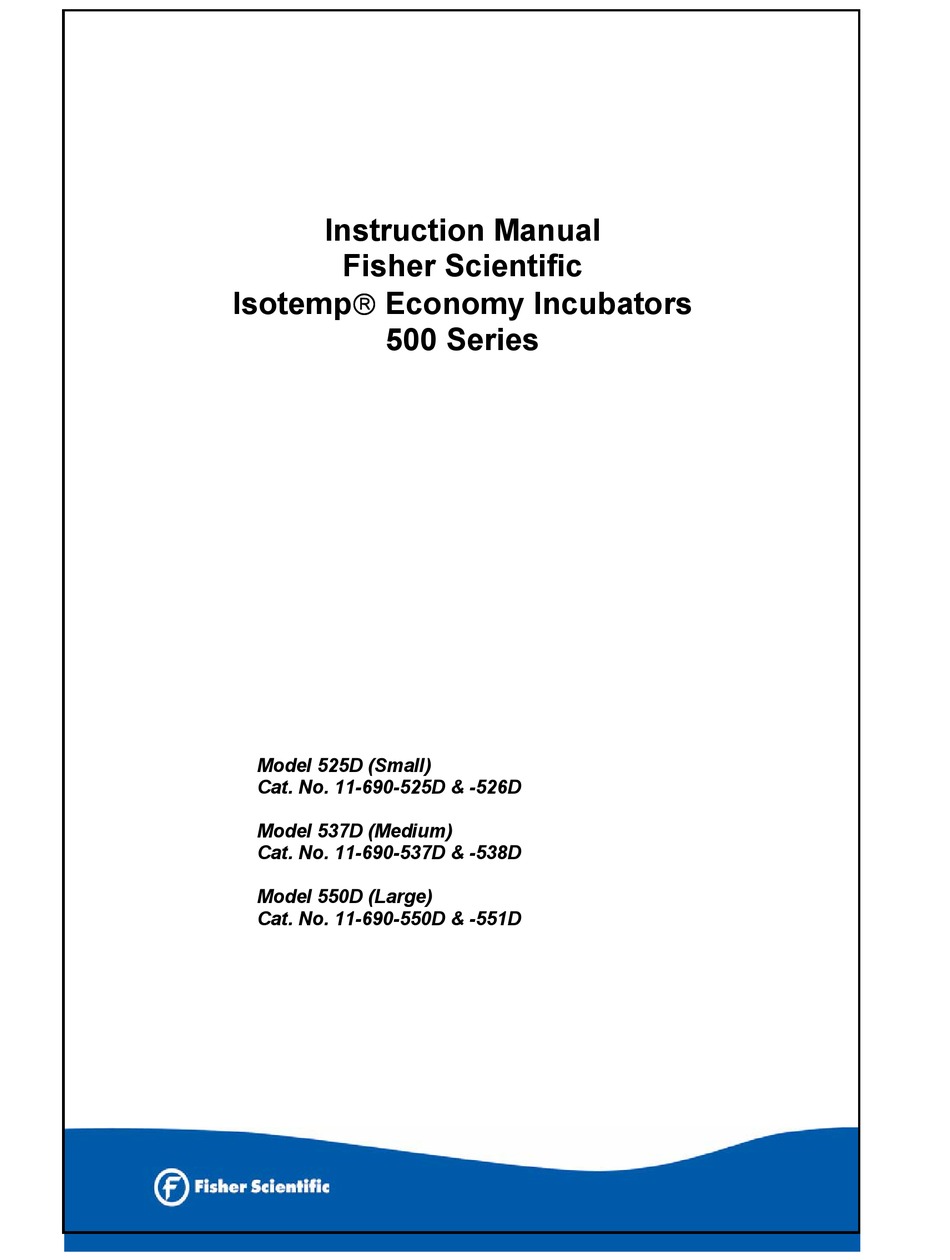

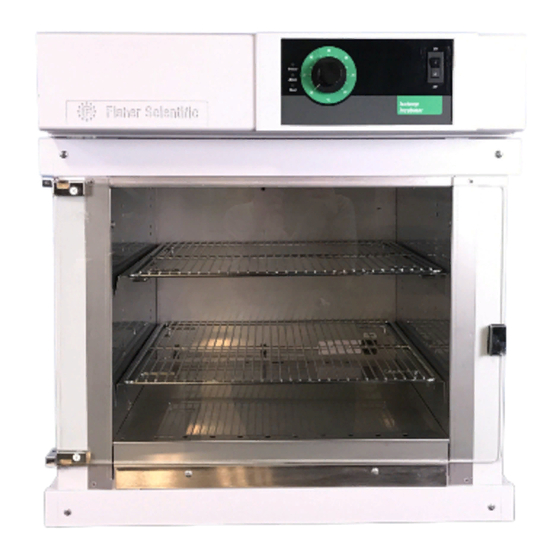

- Page 1 Instruction Manual Fisher Scientific Isotempâ Economy Incubators 500 Series Model 525D (Small) Cat. No. 11-690-525D & -526D Model 537D (Medium) Cat. No. 11-690-537D & -538D Model 550D (Large) Cat. No. 11-690-550D & -551D...
-
Page 3: Table Of Contents
Table of Contents Introduction..............1 Installation Selecting a Location..........2 Unpacking .............. 2 Preparing the Incubator......... 3 Power Switch ............3 Convenience Outlet ..........3 Controls................4 Safety Precautions............5 Operation ................5 Limit Alarms ..............6 Calibration................ 7 Service .................9 Replacing the Glass Door ........10 Accessing the Electronics Compartment ....11 Replacing the Heater..........12... -
Page 4: Introduction
Page 1 Isotemp Economy Incubators Introduction Fisher Isotemp 500 Series Economy Incubators are available in three sizes: small (Model 525D), medium (Model 537D) and large (Model 550D). All models provide analog, on/off control at operating temperatures ranging from 30 °C (86°F) to 75 °C (167 °F). -
Page 5: Selecting A Location
Isotemp Economy Incubators Page 2 Installation Selecting a Location Choose a location for the incubator which will provide an area approximately 2 ft x 2 if. The bench selected must be capable of supporting at least 120 lbs for the Model 525D, 130 lbs for the Model 537D, or 135 lbs. -
Page 6: Preparing The Incubator
Page 3 Isotemp Economy Incubators Preparing the To prepare the incubator for operation, perform the following Incubator procedures: 1. Install the shelf. 2. Make certain all packing material has been removed from incubator chamber. 3. Connect the line cord to an appropriate electrical outlet. Caution: See data plate on incubator for voltage, current and line frequency specifications. -
Page 8: Controls
Isotemp Economy Incubators Page 4 Controls The 500 Series controller features three LED’s which indicate, respectively, that power is being applied to the incubator heaters, an alarm condition exists or that incubator power is on. A temperature dial, marked in five degree increments, serves to set the incubator temperature. Temperature Sets the incubator operating temperature in degrees Dial... -
Page 9: Safety Precautions
Page 5 Isotemp Economy Incubators Safety Precautions Before Operating the oven, always observe the following Safety Precautions: This unit is not explosion proof, do not use in the presence of flammable or combustible materials; fire or explosion may result. Unit contains components, which may ignite such materials. -
Page 10: Limit Alarms
Isotemp Economy Incubators Page 6 Limit The 500 Series controllers feature a deviation alarm which alerts the Alarms operator and interrupts heater power whenever the actual incubator temperature differs from the set temperature by more than 3 °C. This set limit cannot be adjusted by the operator. -
Page 11: Calibration
Page 7 Isotemp Economy Incubators Calibration The 500 Series controllers are factory calibrated near the center of the incubator’s operating range and will usually remain reasonably accurate over a long period of usage. However, should the accuracy diminish with time, or should the user require greater accuracy at a particular temperature setting, the controller may be recalibrated. - Page 12 Isotemp Economy Incubators Page 8 Carefully remove the temperature dial knob without rotating it. 8. Use a thin blade screwdriver to calibrate Low Adjust. Check thermometer reading. If reading is less than 39 °C, rotate Low Adjust slightly to turn heater off at lower temperature. After each adjustment allow sufficient time for incubator temperature to re- stabilize.
-
Page 13: Service
Page 9 Isotemp Economy Incubators Service The following sections describe procedures for servicing the 500 Series incubators. Replacing or adjusting the Glass Door should be within the capabilities of most users and does not expose the operator to live voltages (wiring). All other Service procedures involve potential exposure to line voltage. -
Page 14: Replacing The Glass Door
Page 10 Replacing The Glass Door The Isotemp 500 Series incubators feature a glass door to allow the chamber to be viewed with minimal heat loss. Should the glass door become damaged, it may be replaced by following the procedures below. -
Page 15: Accessing The Electronics Compartment
Page 11 Isotemp Economy Incubators Accessing the To access the electronics compartment, proceed as follows: Electronics Compartment Disconnect power cord from the electrical outlet. Caution: Allow incubator to cool to ambient temperature before attempting repair. Caution: Service procedures requiring access to the electronics compartment involve exposure to line voltage and should be done by qualifled service personnel. -
Page 16: Replacing The Heater
Isotemp Economy Incubators Page 12 Service procedures requiring access to the Caution: electronics compartment involve exposure to line voltage and should be done by qualified service personnel. Disconnect incubator from power before attempting repairs Replacing To replace a defective heater, proceed as follows: the Heater Disconnect power cord from the electrical outlet. -
Page 17: Replacing The Controller
Page 13 Isotemp Economy Incubators Caution: Service procedures requiring access to the electronics compartment involve exposure to line voltage and should be done by a qualified service personnel. Disconnect incubator from power before attempting repairs. Replacing To replace a defective controller, proceed as follows: Controller 1. -
Page 18: Replacing The Control Thermocouple
Isotemp Economy Incubators Page 14 Caution: Service procedures requiring access to the electronics compartment involve exposure to line voltage and should be done by qualified service personnel. Disconnect incubator from power before attempting Repairs. Replacing To replace a defective control thermocouple, proceed as follows: the Control Thermocouple 1. -
Page 19: Troubleshooting
Page 15 Isotemp Economy Incubators Trouble-Shooting Table This table is intended to assist in the resolving incubator problems by relating symptoms to their likely causes. The service discussed below is beyond the scope of most users and should be performed by qualified and trained personnel. -
Page 20: Replacement Parts
Isotemp Economy Incubators Page 16 Replacement Replacements for incubator parts may be ordered, by part number, from Parts Fisher Sales/Parts @ 1-800-766-7000. Item Part Number (ref) Line Cord and Plug Models 525D, 537D, & 550D SPN 06643 (LINE) (120 V) Models 525D, 537D, &... -
Page 21: Performance Characteristics
Page 17 Isotemp Economy Incubators Performance Characteristics 30 to 70 °C Operating Range Average Uniformity @ 37 °C* +/- 1 °C 0.5 °C Resolution Recovery Time @ 37 °C (door open 30 seconds) Model 525D 1 minute Model 537D 1 minute Model 550D 3.5 minutes @ 37 °C... -
Page 22: Specifications
Isotemp Economy Incubators Page 18 Specifications Electrical Requirements Model 525D Cat No. 11-690-525D 120 V, 50/60Hz Cat No. 11-690-526D 240 V, 50/60 Hz Model 537D Cat No. 11-690-537D 120 V, 50/60 Hz Cat No. 11-690-538D 240 V, 50/60 Hz Model 550D Cat No. -
Page 23: Electrical Schematic
Page 19 Isotemp Economy Incubators Electrical Schematic... - Page 24 Fisher Technical Support: 1-800-926-0505 Fisher Service Dept.: 1-800-395-5442 Fisher Sales/Parts: 1-800-766-7000 Part No. 95586 Rev. G 500 Series Economy Incubators Published 11/2003...
