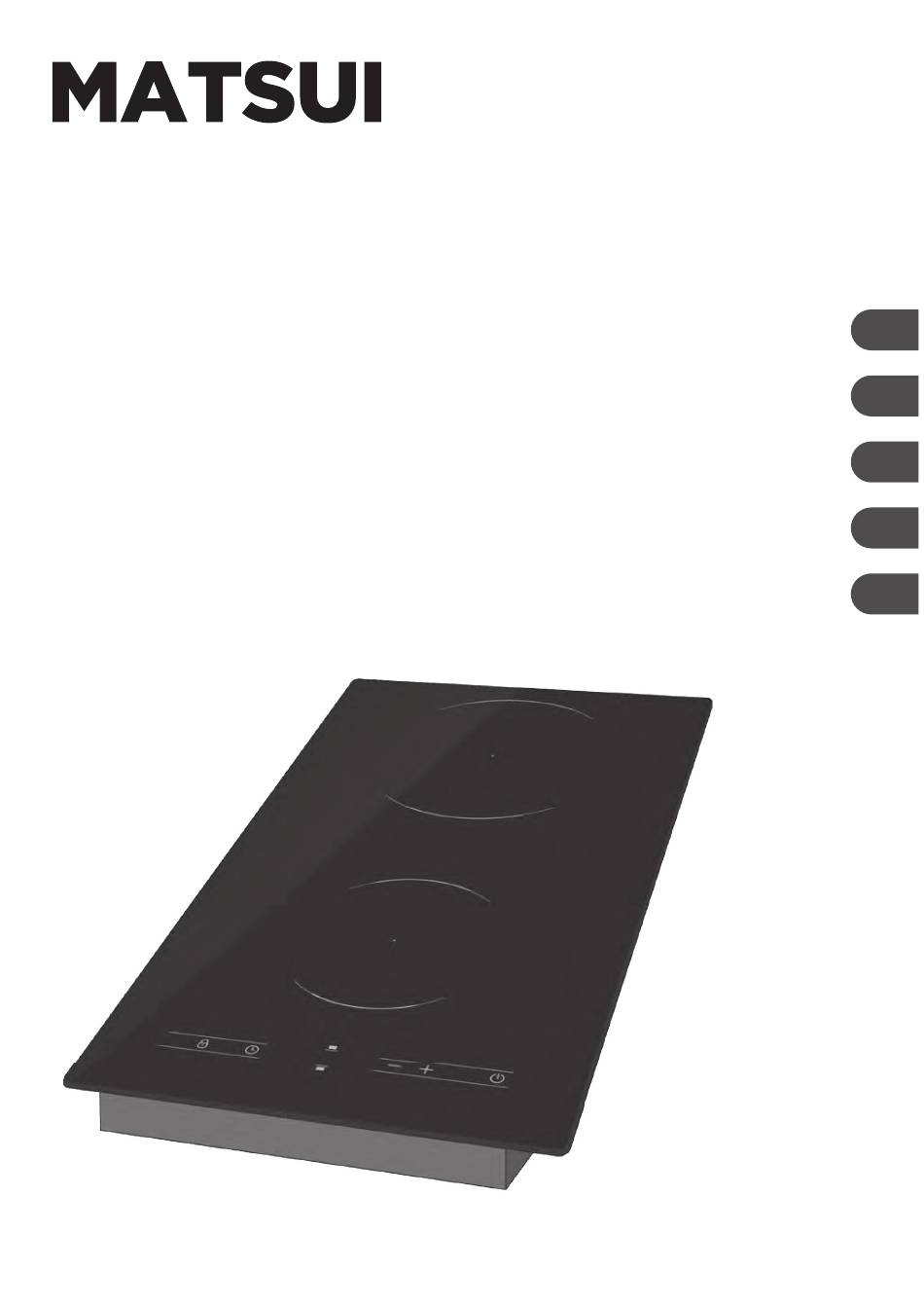

INSTRUCTION MANUAL
BUILT-IN INDUCTION HOB
MDIHOB19E
Built-in Induction Hob
GB
INSTRUCTION / INSTALLATION MANUAL
Innebygd Induksjonskoketoppen
NO
BRUKSANVISNING/INSTALLASJONSHÅNDBOK
Inbyggd Induktionshällen
SE
BRUKS-/INSTALLATIONSANVISNING
Kiinteä Induktiolieden
FI
KÄYTTÖ- JA ASENNUSOPAS
Indbygget Induktionskomfur
DK
BRUGS- OG INSTALLATIONSVEJLEDNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Matsui MDIHOB19E
Summary of Contents for Matsui MDIHOB19E
- Page 1 INSTRUCTION MANUAL BUILT-IN INDUCTION HOB MDIHOB19E Built-in Induction Hob INSTRUCTION / INSTALLATION MANUAL Innebygd Induksjonskoketoppen BRUKSANVISNING/INSTALLASJONSHÅNDBOK Inbyggd Induktionshällen BRUKS-/INSTALLATIONSANVISNING Kiinteä Induktiolieden KÄYTTÖ- JA ASENNUSOPAS Indbygget Induktionskomfur BRUGS- OG INSTALLATIONSVEJLEDNING...
-
Page 2: Table Of Contents
Contents Innhold Safety Warnings ....................5 Sikkerhetsadvarsler ................... 8 Unpacking ....................... 20 Pakke opp ....................... 40 Product Overview .................... 21 Produktoversikt ....................41 Top View ....................21 Sett ovenfra ....................41 Control Panel ..................... 21 Kontrollpanel .................... 41 A Word on Induction Cooking ................22 Noen ord om matlaging med induksjon ............ -
Page 3: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •... - Page 4 • Do not cook on a broken or cracked induction hob. If the induction hob surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. • Switch the induction hob off at the socket before cleaning or maintenance.
- Page 5 memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field. • We recommend using plastic or wooden kitchen utensils for cooking with your induction hob. • Never use your appliance for warming or heating the room. •...
-
Page 6: Unpacking
Unpacking Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Screw × 4 Bracket × 4 In st ru ct io n M a n u a l Main Unit Instruction Manual * All images in this instruction manual are for indication only;... -
Page 7: Product Overview
Product Overview Top View Max. 2000 W Zone Max. 1500 W Zone Control Panel Control Panel Keylock Button Timer Button Heating Zone Buttons Power/Timer Increase/Decrease Buttons ON/OFF Buttons... -
Page 8: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is an advanced cooking technology. It is safe, efficient and economical as it works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. -
Page 9: Using The Touch Controls
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the induction hob – do not slide, or they may scratch the glass. Using the Touch Controls The controls respond to touch, so you don’t need to apply any pressure. -
Page 10: Using Your Induction Hob
Using Your Induction Hob To Start Cooking Touch the ON/OFF control. After turning on, you will hear a beep and all the displays will show “ – “ or “ – – “, indicating that the induction hob has entered standby mode. Place a suitable pan on the cooking zone that you wish to use. -
Page 11: If The Display Flashes
If the Display Flashes This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone. The induction hob continually monitors for the presence of a pan. -
Page 12: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To Lock the Controls Touch the keylock control . -
Page 13: Using The Timer
Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one cooking zone off after the set time is up. You can set the timer for up to 99 minutes. -
Page 14: Setting The Timer To Turn Cooking Zones Off
To cancel the timer, touch controls together, the display will show Press to confirm the timer, or wait for the LED to stop blinking. The timer countdown will begin immediately. When the timer has elapsed, the LED will turn off &... - Page 15 Touch to access the timer. Use to set the time. Touch to confirm. The timer will begin countdown immediately. The unit will beep when the time has elapsed. Press to turn off the timer & heating zone. Other cooking zone will continue operating if it is already turned on. To cancel the heat setting or timer setting, touch together.
-
Page 16: Cooking Guidelines
Cooking Guidelines Take care when frying as oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. •... -
Page 17: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. 2000 2000W Zone 1500 1000 1500W Zone... -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance What? How? Important! Everyday soiling on Switch off the power to the • When the power to the glass (fingerprints, induction hob. induction hob is switched off, marks, stains left by there will be no ‘hot surface’ Apply an induction hob food or non-sugary indication but the cooking zone... -
Page 19: Hints And Tips
Hints and Tips Problem Possible Causes What to Do The induction hob No power. Make sure the induction hob cannot be is connected to the mains turned on. power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 20: Failure Display And Inspection
E5/E6 Bad induction hob heat radiation Please restart after the induction hob cools down. Never attempt to disassemble the unit by yourself. Specifications MDIHOB19E Model 220 – 240V~ Rated Voltage 50 Hz Rated Frequency 56 x 520 x 288 mm... -
Page 21: Product Fiche
Product Fiche Value Unit Symbol Model MDIHOB19E Type of hob Free-standing and built-in Number of cooking zones and/or 2 zones areas Heating technology (induction Induction cooking zones and cooking areas, cooking zones radiant cooking zones, solid plates) For circular cooking zones or areas: Zone 1: 14.0... -
Page 22: Installation
Installation Preparing the Worktop Cut out the work surface following the dimensions shown in the drawing below. For the purpose of installation and use, a minimum distance of 5 cm space must be left around the cut out. Be sure the thickness of the work surface is at least 37 mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. -
Page 23: Fastening The Fixing Brackets
Fastening the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Turn the hob upside down, place it on a soft surface and fasten the brackets to the appropriate holes. DO NOT tighten the screws at this stage. Apply sealing strips around the edge of the hob. -
Page 24: Freestanding Installation And Connection
Freestanding Installation and Connection • This unit can also be installed on top of a suitable, flat, stable, heat-resistant, non-slip surface. • Always make sure the induction cooker hob is well ventilated and that the air inlet and outlet are not blocked. This hob requires an adequate supply of fresh, cool air to fully function. The base of the hob must have direct unrestricted ventilation to the room where the hob is installed. -
Page 26: Pakke Opp
DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland www.elkjop.no/support www.elgiganten.se/support www.lefdal.com/support www.gigantti.fi/support www.elgiganten.dk/support IB-MDIHOB19E-190514V1...
