Related Manuals for Hoover regal
Summary of Contents for Hoover regal

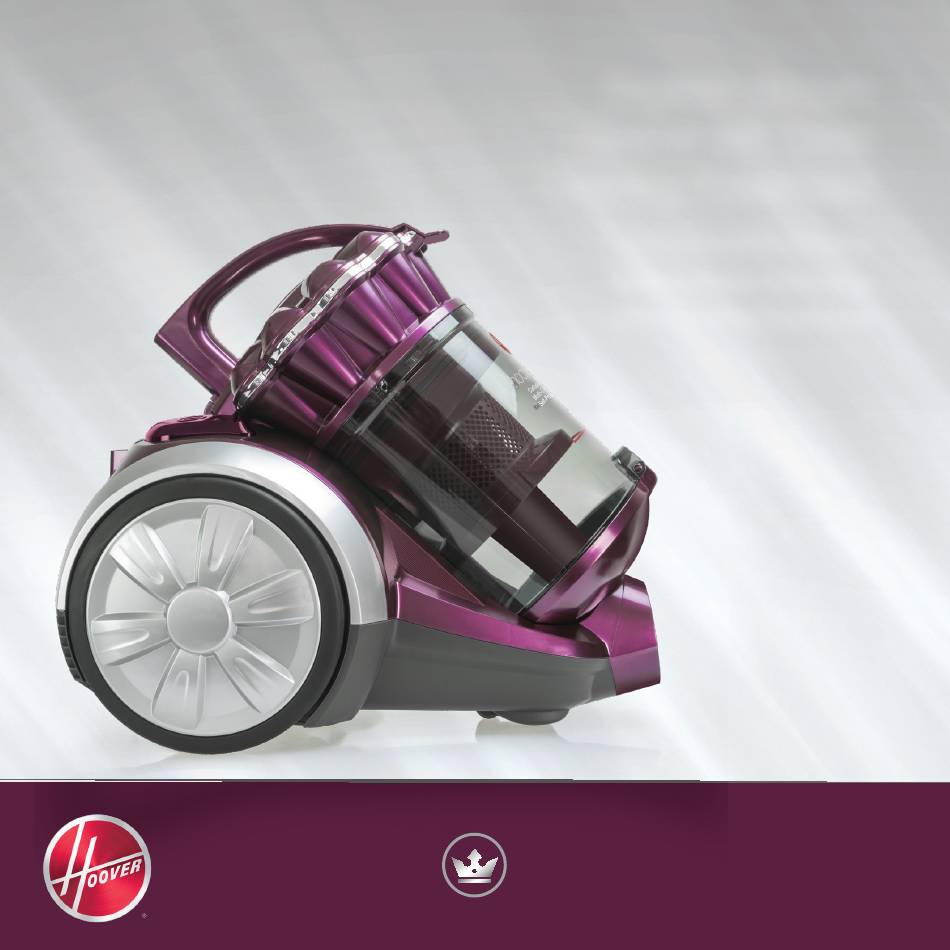

- Page 1 Bagless Vacuum Cleaner with Deep Cleaning Powerhead Carbon & HEPA Filtration Multi-Cyclonic Technology Self-Propelling Powerhead regal...
-
Page 3: Specifications
9011PH Regal Congratulations on the purchase of your new HOOVER vacuum cleaner. There are many useful features built into your vacuum cleaner. We recommend that you carefully read this instruction manual for the best results. Features: Handle On/Off Button 2. On/Off Button (Powerhead) 10. -
Page 4: Before You Begin
Before you Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately. -
Page 5: Safety Precautions And Warnings
Safety Precautions & Warnings IMPORTANT! Always switch off the cleaner and remove the power plug from the power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label. - Page 6 17. To prevent electrical shock, do not use the 29. Damage caused by improper use or by not vacuum cleaner outdoors or on wet surfaces. observing the instructions in this manual will void the warranty. 18. Extreme caution should be exercised when using the appliance on stairs.
-
Page 7: Flexible Hose
Assembly IMPORTANT! Always remove the power plug from the power supply before fitting or removing accessories! LIVE PARTS within the hose, rod and powerhead. 1. Flexible Hose Fitting: Insert the flexible hose into the air inlet of the vacuum. Press until it clicks into position. Removing: Press the two buttons and gentle pull to release the flexible hose. - Page 8 Accessories Powerhead Powerhead Height Adjustment Button Deeply cleans carpets by effectively lifting and removing deeply embedded dust and dirt. The height of the powerhead can be adjusted to be used on different types of carpets. Note: not recommended for use on hard floors. WARNING! Seek advice from carpet manufacturers before using the motorised powerhead on woollen or delicate carpets.
-
Page 9: Crevice Tool
Mini Hand Turbo Tool Ideal for removing per hair from upholstery and furniture. This accessory features a transparent case so that you can easily see and remove any blockages that may occur. Safety Precautions: 1. Keep hair, hands and feet away from the rotating brush while the turbo brush is running. -
Page 10: Dusting Brush
Dusting Brush Cleaning blinds, bookshelves and lampshades is made easy with this dusting brush. 32-35mm Adaptor Fits all 32mm-35mm vacuums. Upholstery Tool For vacuuming furniture and upholstery. Note: for best performance adjust the suction power to “Curtains” mode. - Page 11 Instructions for Use IMPORTANT! Before using the appliance, unwind a sufficient length of cable and insert the power plug into the power supply. A yellow mark on the power cable shows the ideal cable length. Do not extend the power cable beyond the red mark. Turning On/Off the Cleaner Unwind a sufficient length of cable.
-
Page 12: Maintenance
Maintenance IMPORTANT! Always remove the power plug from the power supply before performing any maintenance. Vacuum Cleaner Storage When not in use, ensure that the cleaner is disconnected from to the power supply and that the cable is fully retracted. The combination floor tool can be stored in the floor park clip. The powerhead must be stored separately. - Page 13 Cleaning and Replacing the Pre-Motor Filter IMPORTANT! Always remove the power plug from the power supply before performing any maintenance. Remove the dust bin by pressing the Dust Bin Release Button. Lift the Dust Bin Lid Lever to access the Pre-Motor filter. The filter can be cleaned using lukewarm water.
- Page 14 Maintenance (continued) Cleaning and Replacing the Rear Motor HEPA and Carbon Filter The Rear Motor HEPA and Carbon Filter is installed behind the exhaust grille. This HEPA filter is washable, however frequent washing of the carbon filter can reduce the life of the carbon filter. When dust or dirt is visible on the surface of the HEPA filter, the filter should be replaced or washed with lukewarm water to maintain efficient suction.
- Page 15 Cleaning the Mini Hand Turbo Tool WARNING! Ensure that the Mini Hand Turbo Tool is disconnected from the cleaner when performing any maintenance. Unlock the neck on the Mini Hand Turbo Tool by twisting anti-clockwise. Push the release buttons on the side of the Mini Hand Turbo Tool down to unlock the external bristles.
- Page 16 Maintenance (continued) Cleaning the Motorised Powerhead WARNING! Ensure that the cleaner is disconnected from the power supply when performing any maintenance procedures. The rotating brush must be free of debris for effective cleaning and for maximum suction. Disconnect the motorised powerhead and turn it over to inspect the rotating brush. If a build-up of debris is wound around the rotating brush, remove by carefully cutting with scissors.
- Page 17 Firstly lift the side of the rotating brush without the belt attached. Then lift the end cap where the belt loops around. Slide the old belt off the drive shaft and then the end cap. If the belt is broken, remove all the broken pieces.
-
Page 18: Troubleshooting
Troubleshooting Problems and Solutions Please contact Godfreys customer support and service hotline Australia on 1800 815 270 or New Zealand on 0800 282 288 to find your local spare parts provider. Fault Solutions The cleaner will not Check that the power cable is inserted securely; remove from the power supply turn on. -
Page 19: Customer Care
Customer Care Please contact Godfreys customer support and service hotline Australia on 1800 815 270 or New Zealand on 0800 282 288 to find your local spare parts provider. Description Product Code Filter Set 32201025 Hose 31220812 Powerhead 11400168 31155241 Combination Floor Tool Agitator Bar 33701796... - Page 20 Your Hoover Regal is not fit to be used as an industrial cleaner, and is not The repair of the Hoover Regal under this warranty does not extend designed for the collection of vitreous building material including particle the original period of warranty.
