Summary of Contents for Druck UPS-III

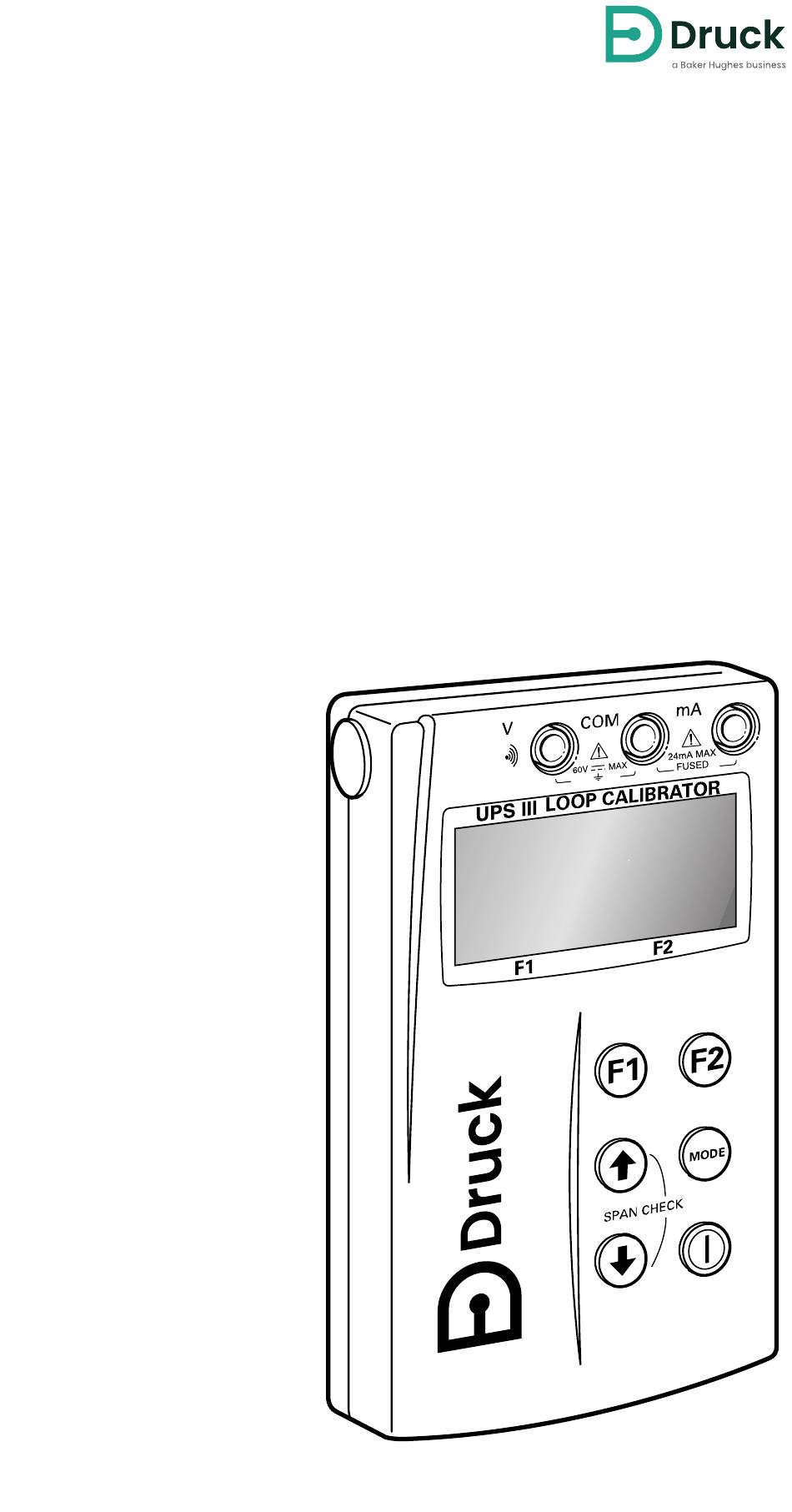

- Page 1 UPS-III Loop Calibrator Instruction Manual Druck.com...
- Page 3 Loop Calibrator in a hazardous area. Read the whole publication before starting. Safety The UPS-III has been designed to be safe when operated using the procedures detailed in this manual. Do not use this equipment for any other purpose than that stated, the protection provided by the equipment may be impaired.
-
Page 4: Power Supply
For more information, contact one of these: - Our customer service department: Druck.com/essential - Your local government office. Power Supply The power supply for this loop calibrator can be the internal non- rechargeable batteries or an external universal power supply unit, Druck accessory IOPSU-1. -
Page 5: Operation
SPAN CHECK (up/down). select advanced functions shown on the bottom of the display. When no key is pressed for 10 minutes, the loop calibrator times out and switches off. To Copyright 2003 Baker Hughes Company. English–UPS-III Instruction Manual | 3... -
Page 6: Operating Modes
When measuring current pressing enables linear or flow, pressing enables mA or % (value of 4 to 20 mA or 0 to 20 mA). Copyright 2003 Baker Hughes Company. 4 | UPS-III Instruction Manual–English... - Page 7 Press the mode key and select [Measure mA]. An external power supply supplies a maximum of 60 V for the loop. The calibrator measures the current of the loop. Measure mA Closed loop current measurement from transmitter test terminal. Copyright 2003 Baker Hughes Company. English–UPS-III Instruction Manual | 5...
- Page 8 Press mode key and select [Measure Volts], measure range 60 V, maximum impedance 1 Mohm. Continuity Test Press mode key and select [Continuity Test]. Pressing switches the audible signal on/off. Copyright 2003 Baker Hughes Company. 6 | UPS-III Instruction Manual–English...
- Page 9 2.3 Advanced Options in a Source Mode Press the key and select mA Source or mA Source & 24V. MODE (Enter) to select the function. Press the key (Advanced) and the display shows: Copyright 2003 Baker Hughes Company. English–UPS-III Instruction Manual | 7...
- Page 10 Press step the output up or down. step the span check maximum or minimum. start the “ramp”. Press then to start: continuous auto-step. Copyright 2003 Baker Hughes Company. 8 | UPS-III Instruction Manual–English...
-
Page 11: Maintenance
2.4 Hart® Application This application allows mA measure and source modes to be used through the Hart® communicator. Hart® communicator. UPS-III menu selectable 220 Ω loop resistor. 3. Maintenance • Return the loop calibrator to an authorized repair center for any repairs, it cannot be repaired on-site. -
Page 12: Battery Replacement
The instrument is supplied by the manufacturer, complete with calibration certificate(s). A calibration period of 12 months is recommended. The actual calibration interval depends on instrument usage and the total Copyright 2003 Baker Hughes Company. 10 | UPS-III Instruction Manual–English... -
Page 13: Calibration Equipment
The UPS-III is a very precise measuring instrument and the test equipment and conditions of test must be suitable for the type of work. The calibration check and calibration adjustment should be carried out in a controlled environment by a calibration... -
Page 14: Calibration Check
0.00011 0.002 0.00015 4.2 Calibration Check Connect the UPS-III to the electrical calibrator. Switch on the electrical calibrator and allow it to thermally stabilize. Switch on the UPS-III and allow the instrument to thermally stabilize. Set the UPS-III to mA measure, adjust the electrical calibrator to apply the first value in the Table 3. - Page 15 Select the parameter required for calibration. Use the display menu to select the calibration values. After a successful calibration enter the new calibration date. 2 seconds Calibration menu Copyright 2003 Baker Hughes Company. English–UPS-III Instruction Manual | 13...
- Page 16 Correct PIN entered 20 mA ± 1 mA 1 mA ± 0.002 mA 20 mA ± 0.004 mA open source source 20 mA ± 1 mA 1 mA ± 0.002 mA Copyright 2003 Baker Hughes Company. 14 | UPS-III Instruction Manual–English...
- Page 17 59 V ± 1 V source 59 V ± 1 V More calibration Calibration complete selections Copyright 2003 Baker Hughes Company. English–UPS-III Instruction Manual | 15...
-
Page 18: Specification
0 to 24 mA Measure V 0.001 0.02% rdg + 4 lsd 0 to 60 V Continuity – – <100 Ω a. rdg = reading, lsd = least significant digits. Copyright 2003 Baker Hughes Company. 16 | UPS-III Instruction Manual–English... -
Page 19: Return Goods/Material Procedure
Audio and visual indication, 1 mA test current. 6. Return Goods/Material Procedure If the unit requires calibration or is unserviceable, return it to the nearest Druck Service Centre listed at: Druck.com/essential. Contact the Service Department to obtain a Return Goods/Material Authorization (RGA or RMA). Provide the following information for a RGA or RMA: •... - Page 20 Copyright 2003 Baker Hughes Company. 18 | UPS-III Instruction Manual–English...
- Page 24 Copyright 2003 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective holders. bakerhughes.com K0317 Revision A | English...
