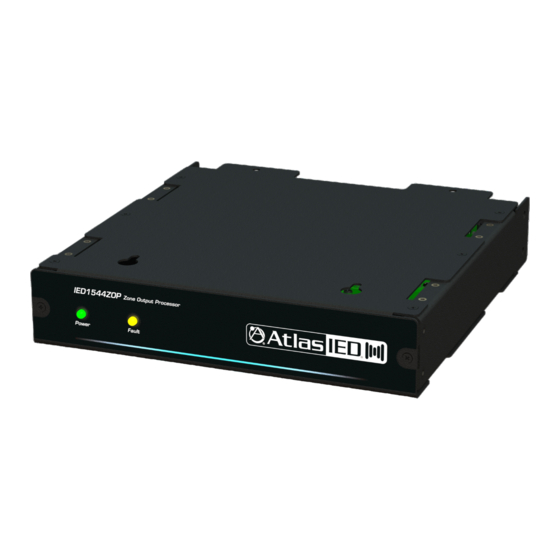

- Page 1 1544ZOP 4x4 Smart Zone Output Processor Installation Manual Version: 0.3 Document: 1227B 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 2: Table Of Contents
Introduction ........................................... 8 Key Features .......................................... 8 Front Panel Description ......................................9 Rear Panel Description ......................................9 Installing the 1544ZOP ......................................10 Connecting Supervised Logic Inputs..................................11 Connecting Unbalanced Audio Inputs / Outputs ..............................11 Connecting a Power Supply ....................................11 Complete Unit Configuration ....................................11 Specifications ........................................ -
Page 3: Important Safety Instructions
18. The mains plug of the power supply cord shall remain readily operable. Protective earthing terminal. The apparatus should be connected to a mains socket with a protective earthing connection. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... - Page 4 • Contact AtlasIED for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire. • Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the power plug or inside the wall outlet.
- Page 5 It is very important that only responsible, trained personnel are allowed to operate and maintain these systems, and that they use only appropriate equipment and tools. If a person is not trained, they shall contact the AtlasIED factory for direction on how to operate and maintain an AtlasIED system.
- Page 6 Avoid the use of flammable or toxic cleaning fluids, and the use of carbon tetrachloride is prohibited. Maintenance of the equipment shall be at least what is specified in the AtlasIED manuals and literature, and performed only by qualified personnel.
- Page 7 Personnel working with or near high voltage should be familiar with modern methods of resuscitation. Such information and training is available from the Red Cross or local emergency response personnel such as the police and fire department. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 8: Introduction
Dante digital audio. In addition to the four zone outputs, the 1544ZOP has four balanced line-level analog inputs that may be used as automated test inputs associated with the four zone outputs. Alternately, the analog inputs may be routed out over the network as Dante digital audio for such uses as for background music or auxiliary audio sources. -
Page 9: Front Panel Description
6. Power Input - Input of 12V to 48V with current rating sufficient for 10 Watts of power. Analog Audio Outputs - Balanced audio with level of +6 dBu maximum. 8. Analog Audio Inputs - Balanced audio with level of +6 dBu maximum. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... -
Page 10: Installing The 1544Zop
Joining Clips The unit may be mounted either singly in a 19" rack using blank spacer and rack “ears” . The unit can also be combined with a second 1544ZOP or compatible half-rack-unit device to mount two across in a 19" rack. See the instructions that are included with the PA702-RMK kit for specifics on how to prepare units for rack mounting using the parts in the kit. -
Page 11: Connecting Supervised Logic Inputs
Connecting Unbalanced Audio Inputs / Outputs The analog audio inputs / outputs on the 1544ZOP are balanced. On occasion, it may be necessary to connect unbalanced audio devices to the 1544ZOP . When doing this, one should wire as shown in the figure below. -
Page 12: Specifications
Unit Weight - lbs 3.25lb (1.5kg) (individual unit) - 3.75lb (1.7kg) (unit w/ rack ears) Shipping Weight - lbs 4.4lb (2kg) Rack Mount Requirements Rack-Mount Ears 1 RU Cooling Fan None 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... -
Page 13: Fcc Notice
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... -
Page 14: Warranty
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
