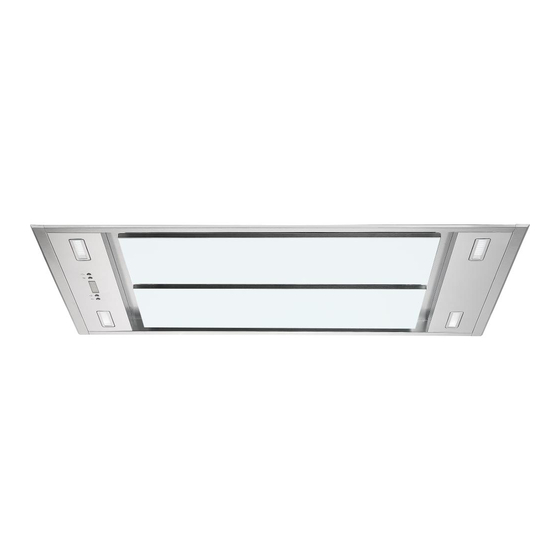

Summary of Contents for Culina UBADCH110W

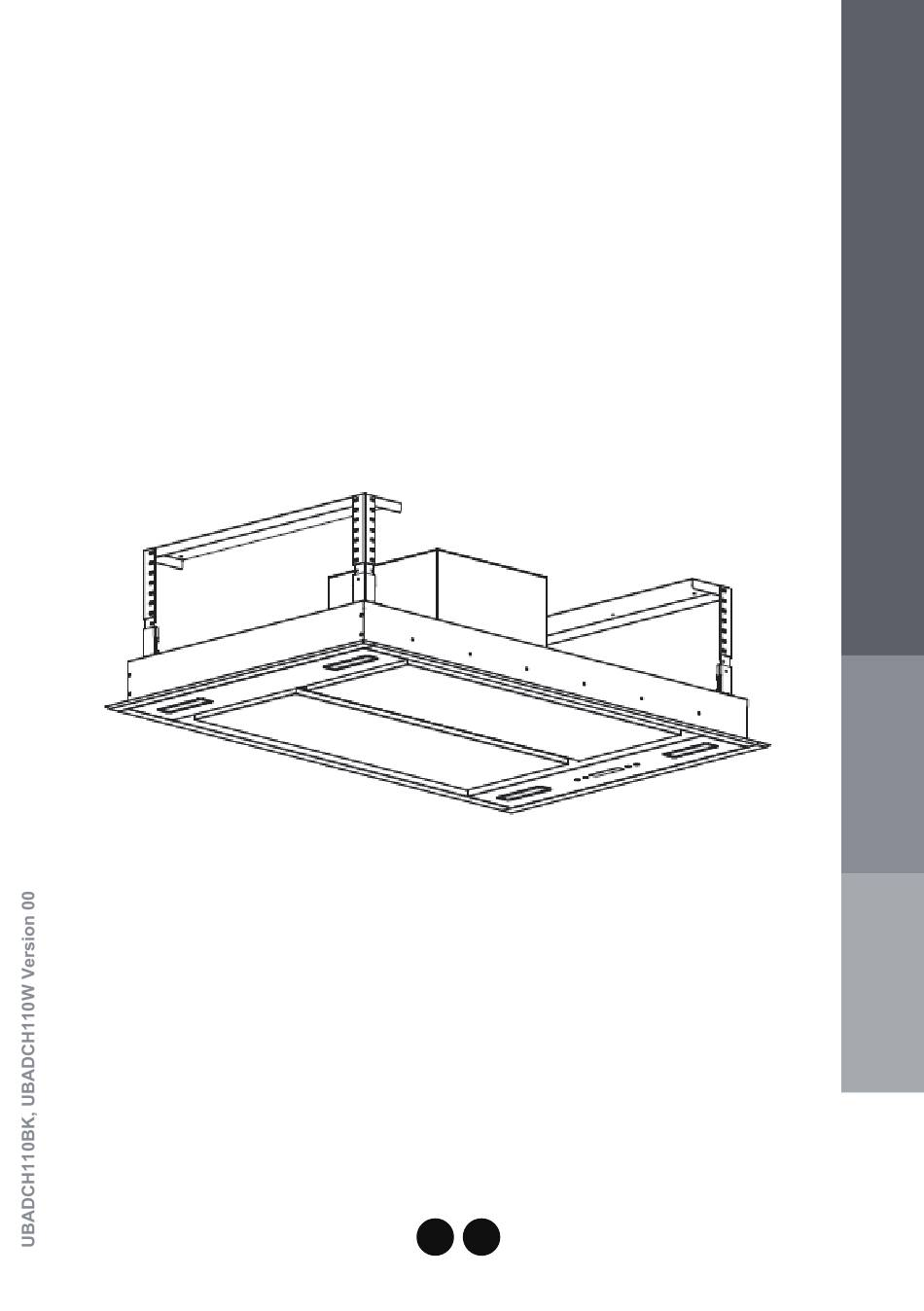

- Page 1 USER MANUAL CEILING HOOD...
- Page 2 [01] x 1 [03] x 2 [02] x 4 [04] x 8 [05] x 1 [08] x 14 (φ6 x 40mm) [09] x 14 [06] x 1 [10] x 40 [07] x 1 [11] x 40 [12] x 48 (φ4 x 10mm)
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Before you start more detail... Product functions Switching on/off Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation... -
Page 4: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 5 Safety 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
- Page 6 Safety Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used.
- Page 7 Safety involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
-
Page 8: Before You Start
Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. -
Page 9: Product Functions
Operation Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off • Switch on the appliance at the switched fused connection unit. The appliance is ready for use. - Page 10 Operation Remote control Lighting On/off button of the light. Turning on / Increasing motor speed 1st press, Low speed. 2nd press, Medium speed. 3rd press High speed. Turning off / Decreasing motor speed Press it then the motor begins shift to a lower speed and the LCD screen display the speed level.
-
Page 11: Care And Maintenance
Care and maintenance Bulb replacement Important : • The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. • Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands. - Page 12 Care and maintenance Active charcoal filter replacement INSTALLING GREASE MESH FILTERS • To install filters for the following four steps: - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter. - Release the handle once the filter fits into a resting position.
- Page 13 Care and maintenance Aluminium and active charcoal filters replacement 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted). To do so, remove the filters and soak in hot water and detergent for an hour.
-
Page 14: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Fan switch turned off. Select a fan switch position. Light on, but motor does not Fan switch failed. Contact service center. work. Motor failed. Contact service center. House fuses blown. Reset/Replace fuses. Light on, but motor does not Power cord loose or Refit cord to power outlet. -
Page 15: Recycling And Disposal
Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 16: Technical And Legal Information
Technical and legal information Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET... - Page 17 Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
- Page 18 Installation VENT PACK 2 (UK + IE) DUCTED OPTION RECIRCULATION OPTION You can choose two type of installation: - Ducted option - Recirculation option...
- Page 19 Ensure the cooker hood should be placed at a distance as shown above. The ceiling must can bear at least 120KGs weight, and the thickness of the ceiling must be ≥30MM. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Page 20 Drill 14 holes with 8mm diameter on the ceiling once the installation height is determined. [08] x 14 [09] x 14 [03] x 2 14pcs plastic plug and screws will be used to fix the two hanging board on the wooden ceiling. Note: Where the appliance is being mounted to a solid (concrete) ceiling then suitable alternative fixings should be used i.e.
- Page 21 [05] x 1 [10] [11] [12] [04] Fix the one-way-valve to the air outlet of the cooker hood. Install one or two angle iron according to actual demand, then use 16pcs or 32pcs M4*10 screws and M4 nut with gasket to connect the angle iron into the adjustable angle iron bracket. (Make sure the overlap length of angle iron cannot less than 36mm) You can choose the direction of the outlet ①...
- Page 22 Install the expansion pipe to the outlet. [12] X 8 Connect the 4 adjustable angle code unit with the housing by 8 pcs M4*10mm machine silk screw.
- Page 23 [12] X 8 Lift up the housing, use 8pcs M4*10mm machine silk screw and M4 nut with gasket to fix the housing onto the 2 hanging board, meanwhile, pull the expansion pipe outside. Note: The expansion pipe must be fixed on the housing firmly. Screwing the safety screw tightly after the level position and height is suitable.
-
Page 24: Appendix
Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit UBADCH110BK Model identification UBADCH110W Annual Energy Consumption 62.7 kWh/a hood Time increase factor Fluid Dynamic Efficiency 34.0 hood Energy Efficiency Index 50.1 hood Measured air flow rate at best 523.3... - Page 28 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
