Summary of Contents for Culina UBICON75W

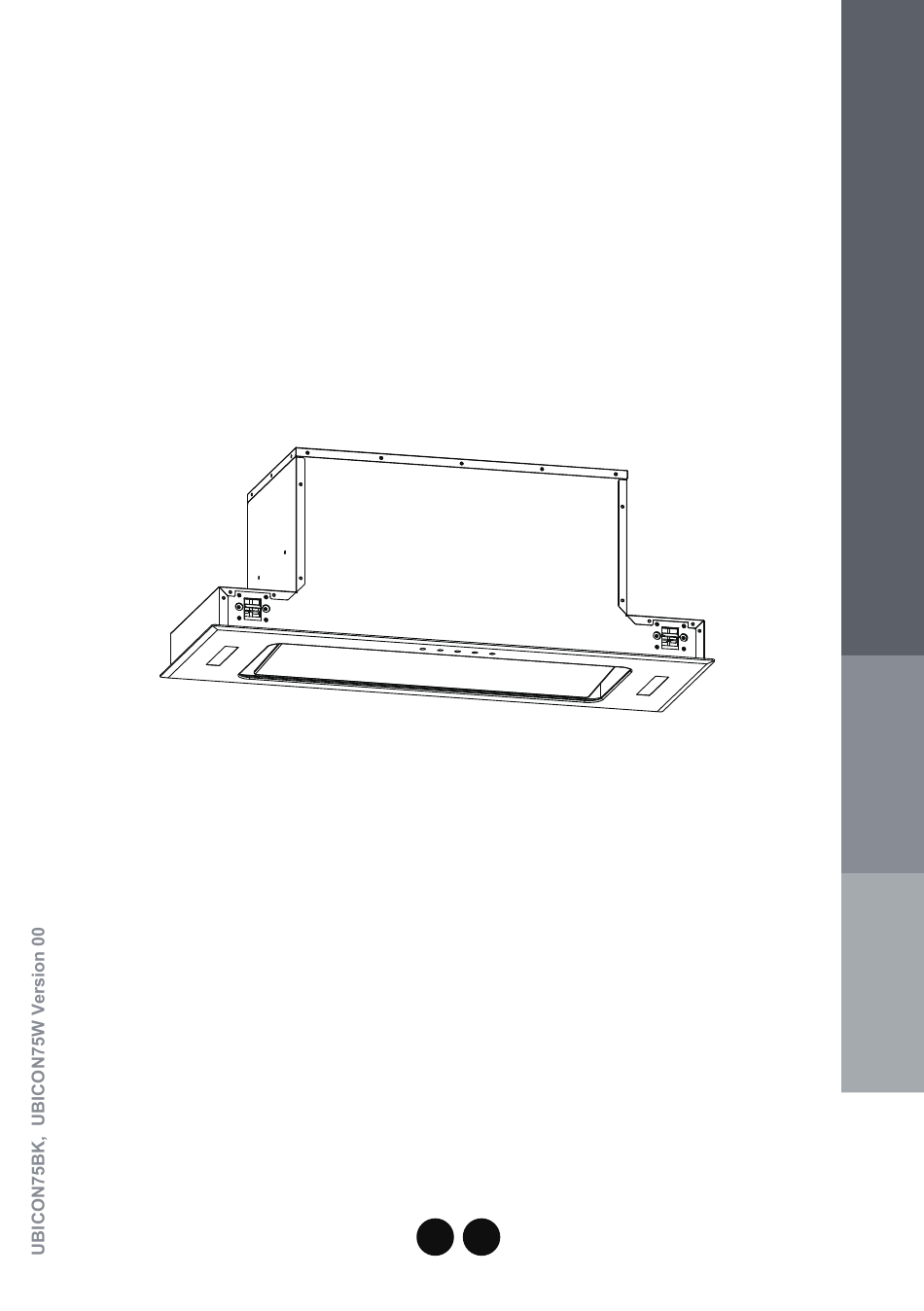

- Page 1 USER MANUAL...
- Page 2 [01] x 1 [02] x 1 Cooker hood...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Before you start more detail... Product functions Switching on/off Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation... -
Page 4: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 5 Safety 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
- Page 6 Safety Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used.
- Page 7 Safety involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
-
Page 8: Before You Start
Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. - Page 9 Before you start Accessories not supplied Extraction Recirculation Ø150mm ATFILT1 (UK & IE) VENT PACK (UK & IE) CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 014475261 (IE)
-
Page 10: In More Detail
Operation Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off • Switch on the appliance at the switched fused connection unit. The appliance is ready for use. -
Page 11: Care And Maintenance
Care and maintenance Aluminium and active charcoal filters replacement 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted). To do so, remove the filters and soak in hot water and detergent for an hour. -
Page 12: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and vibration. installed properly on the check it is properly fixed. brackets. The fan blade is Switch off the appliance. Repair damaged. to be carried out by qualified service personnel only. -
Page 13: Recycling And Disposal
Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 14: Technical And Legal Information
Technical and legal information Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET... - Page 15 Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
- Page 16 Installation Carbon filter Carbon filter Vent pack Vent pack Ø150mm Ø150mm DUCTED OPTION RECIRCULATION OPTION You can choose two type of installation: - Ducted option - Recirculation option This product is for mounting in a wall bridging unit. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards...
- Page 17 DIM.A MIN.750mm (GAS) MIN 650mm (Electric) Warning: Caution! Before drilling it is extremely important to check the wall for hidden pipes, electrical cables etc using an appropriate detection device.
- Page 18 Unscrew the 4 screws on the outer glass frame panel by screwdriver, pull out the light wire, take down the outer glass frame panel. Using the dimensions in the diagram, cut an aperture in the base of the bridging unit using a jigsaw.
- Page 19 [02] x 1 Tighten up the screws by screwdriver, and make sure the hood was fixed. Meanwhile install the one-way-valve to the air outlet. 06-A VENT PACK Ø150mm Then fix the VENT PACK (Not supplide) if need. Only for ducted option.
- Page 20 07-B Only for recirculation option. Connect the light wire and assemble the outer glass frame panel by screw. For recirculating option refer to Care and maintenance section. Note: For electrical connection see Technical and legal information section.
- Page 21 Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit UBICON75BK, UBICON75W Model identification Annual Energy Consumption kWh/a 62.1 hood Time increase factor Fluid Dynamic Efficiency 23.1 hood Energy Efficiency Index 67.9 hood Measured air flow rate at best 311.0...
- Page 24 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
